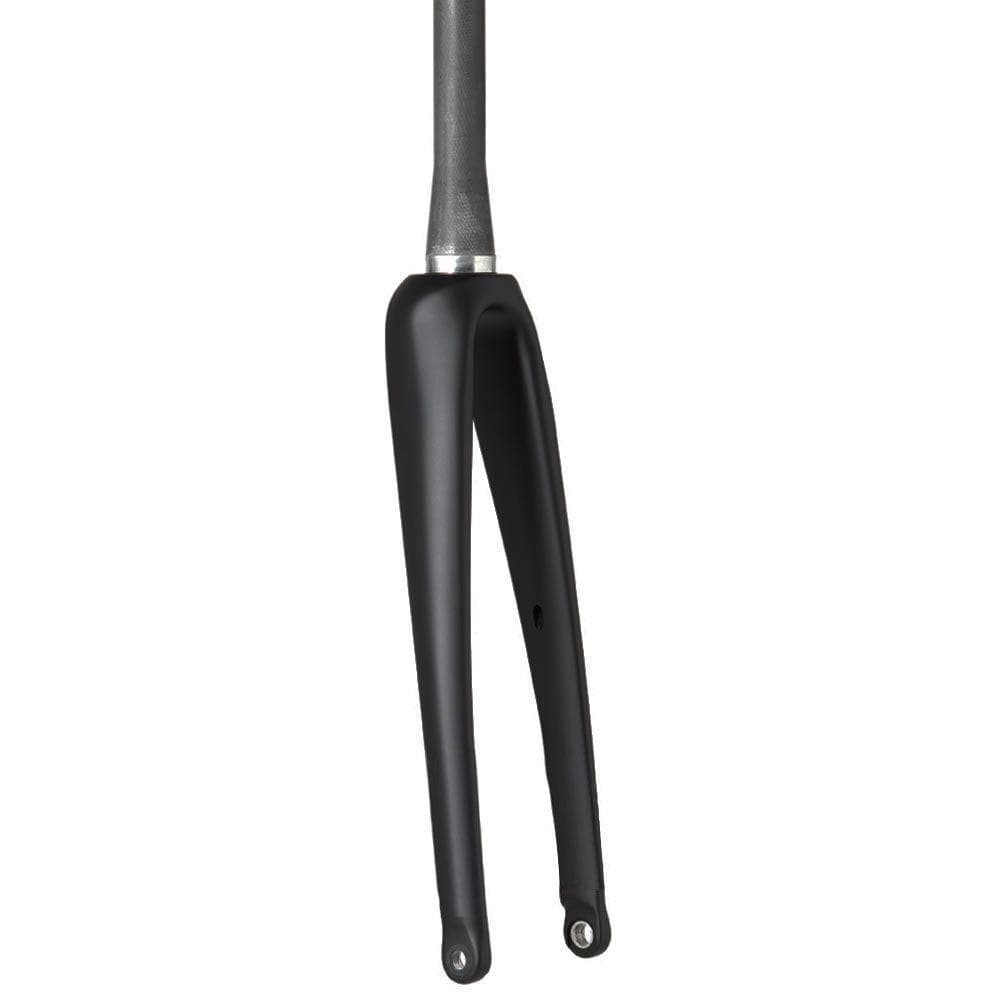

Columbus 1 1/8-1 1/2 Futura Disc Integrated Fork Raw Carbon

Columbus is happy to present a very special evolution of the famous Futura Disc carbon road-fork, specifically designed to host fully integrated internal cable-routing.

The 1-1/2” tapered steere maintains a 1-1/8” cylindrical shape at the top, to perfectly interact with the majority of the internal-routing stems available on the market. Moreover, the contiguity of the internal volumes of its monocoque body allows the front brake-cable to directly reach the disc-caliper at the end of the blade.

Finally, a further opening on the lower rear part of fork’s steerer guarantees the possibility to route toward the frame down-tube any additional mechanical and/or electronic cable for brakes and derailleurs.

Braking performance is dramatically improved by the disc brake system: with the capability to accept up to 160mm rotors, Futura Disc ensures unbeatable performance, even in the most challenging weather conditions.

The Futura's ultra-light monocoque carbon-fibre design, with its 1"1/2 oversized steerer, have been specifically reinforced to maximize stiffness and reliability during the braking phase, giving enhanced precision and performance to the riding-experience.

Characteristics:

• T700S & HFM Carbon Fibre Monocoque, Cabon dropouts with aluminium inserts
• Carbon Dropouts with aluminium inserts
• Finish: Raw Carbon
• For Flat Mount Calipers - max 160mm rotor
• Centre Lock AFS Fitment Only
• Steerer: 1"1/8 top 1"1/2 Bottom
• Axle to crown length: 368mm
• Tyre clearance: up to 28mm
• Internal cable routing
• Crown dia: 56mm
• Rake: 45mm
• Axle standard: 12mm Thru Axle (included)
• Weight: 440g (-/+10g)
