DMR - VMAX Pedal - Light Bronze

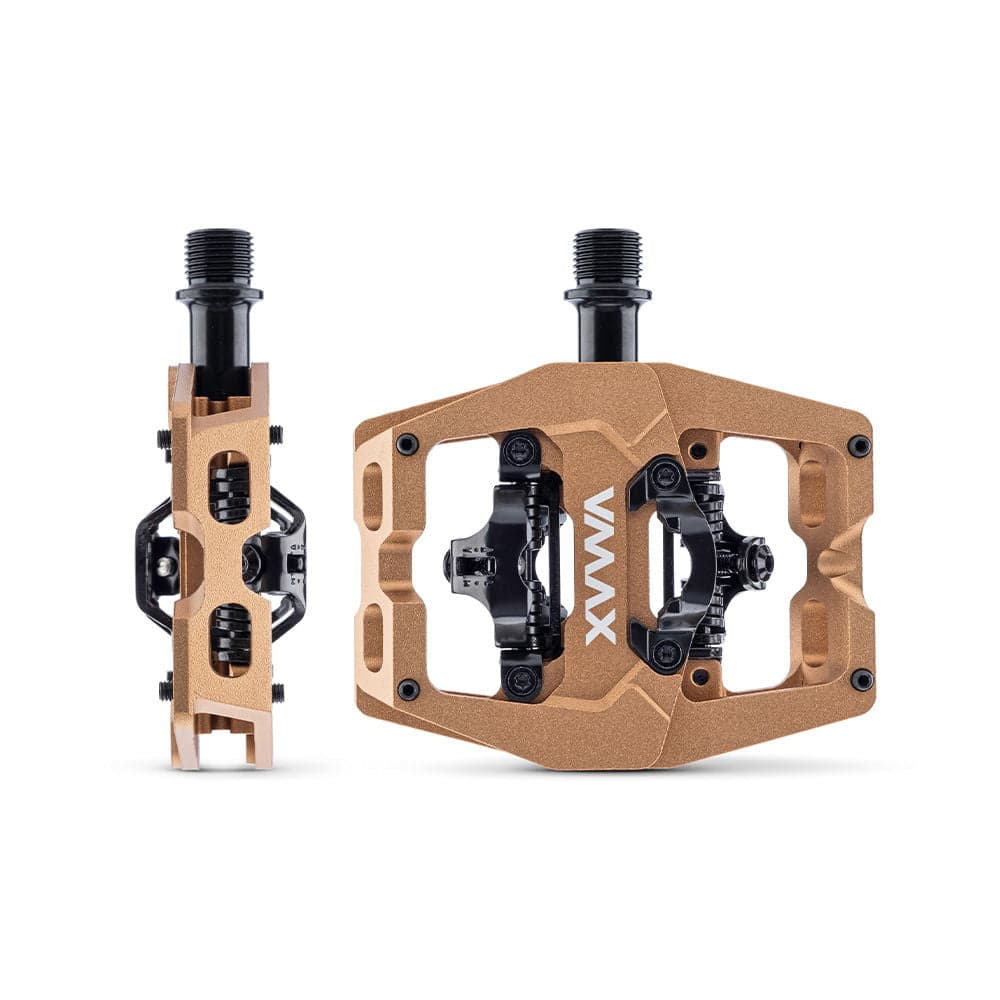

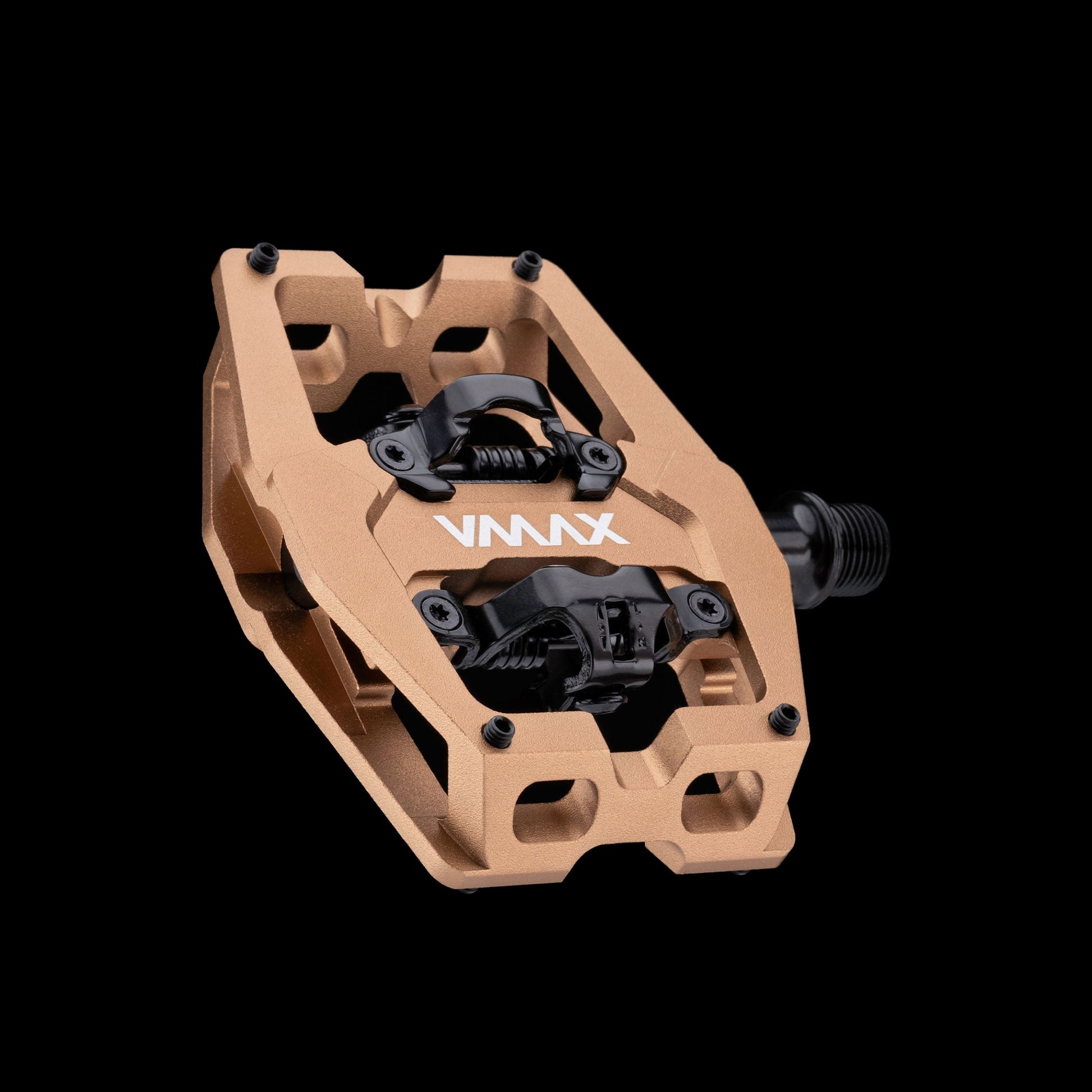

The next generation of clip-in pedals is here the new DMR VMAX pedal. Compatible with race-proven SPD technology, we have engineered a versatile pedal, capable of conquering the roughest terrain. Compared to other SPD compatible clipless pedals, the VMAX has a larger platform for greater shoe support combined with a low profile which results in easy foot placement and cleat relocation, for those foot-out flat-out moments.

An extruded and CNC machined 6061-aluminium body, finished with laser-etched DMR and VMAX logos, means the VMAX pedal can take a lifetime of abuse in the toughest environments, whilst remaining lightweight at 467g a pair. The combination of a fully sealed, serviceable bearing and DU bush, matched with double internal body seals, delivers super-smooth performance, season after season.

Featuring a double-sided, SPD compatible clipless system, the VMAX ensures reliable power transfer, predictable and secure cleat engagement, with easy tool access, for adjustable entry and release simple to set up and ride, and fully race-ready. If you want to clip in to win, our DMR VMAX pedals are exactly what youre looking for.

BUILT TOUGH Extruded, CNC machined, 6061 aluminium platform, combined with Shimano SPD compatible cleat system, makes the VMAX built to last.
SPD CLIPLESS SYSTEM Similar to other pedals using the SPD system, the VMAX has 4 of float to allow for free movement of the shoe, for a more confident ride.
LARGE AND LOW PROFILE PLATFORM Compared to other SPD compatible clipless pedals, the VMAX has a larger platform, combined with a low profile, resulting in easy foot placement and cleat relocation. Larger platform supports the shoe when clipped in, for better control and foot-feel.
SLIMLINE PROFILE Lower profile for fewer pedal strikes, with more ground clearance.
SERVICEABLE DESIGN Fully sealed bearings and DU bushes, allow the VMAX to be easily serviced, perfect for taking on seasons of abuse in the toughest of environments.
LIGHTWEIGHT Only 467g per pair.

• SPD compatible design, with easy tool access.
• 467g per pair
• Serviceable bearing and DU bush system, with double internal body seals
• Bearing service kit available separately
• Easily replaceable cleat cages
• 4 replaceable DMR pins per side, for additional, tuneable grip
• Heavy duty 4140 CroMo steel axles
• Tough extruded CNC machined aluminium body
• 4 float, 12 release cleat set supplied. Replacement cleat set available separately
• Anodised coloured finish

Dimensions
Pedal incl. Axle: 112mm x 116mm
Platform: 80mm x 95mm
Depth: 18mm

Additional info:
Please note: Torque setting at the axle, fitting to crank, for the DMR Bikes pedal range, is 4055Nm.
