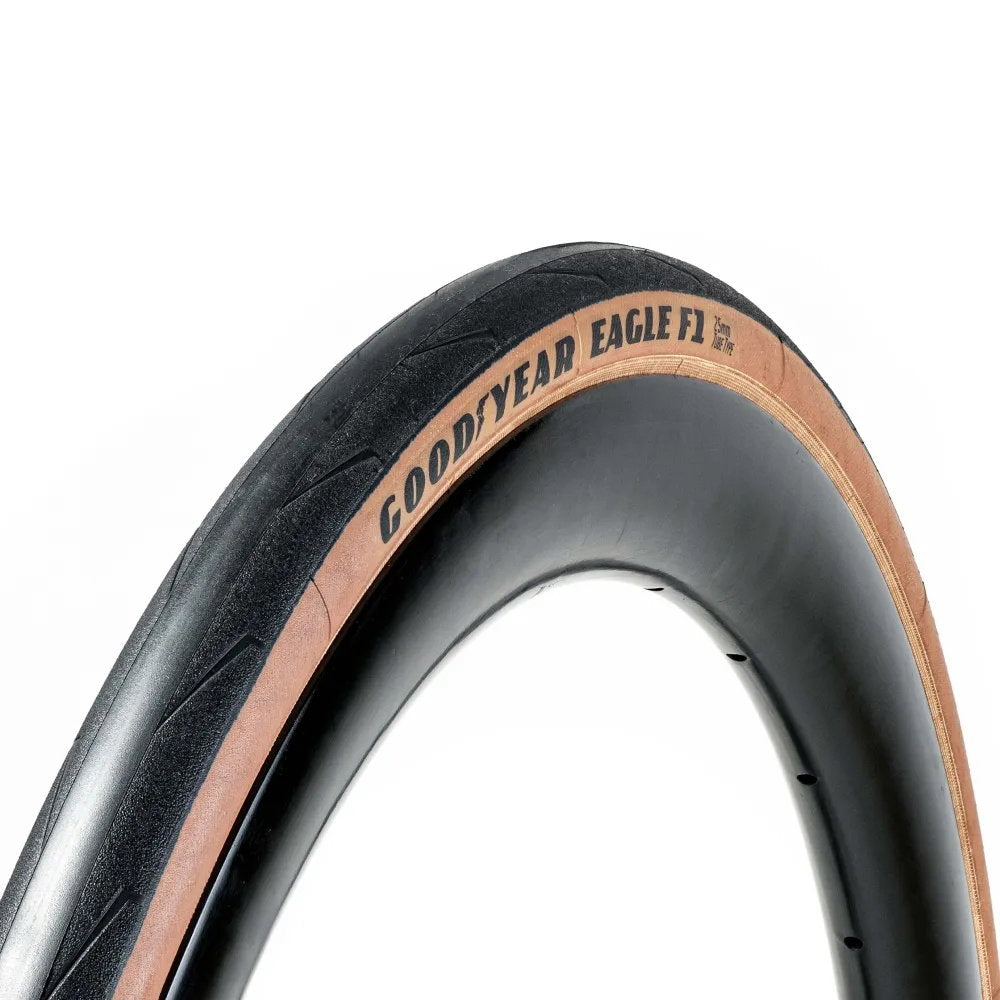

GY - Eagle F1 Tube Type 700x25 / 25-622 Tan

EAGLE F1
Equipped with cutting-edge technology, the Eagle F1 has a single mission of all-round race performance at the highest level
The Eagle F1, part of the Road UHP (Ultra High-Performance) range is the Ultra High-Performance all-round road race tyre. Optimized for outright performance favouring straight line speed and cornering competence bringing factory performance to your garage.

DEVELOPED FOR SPEED
Developed from the ground up, the Eagle F1 range is the culmination of countless hours on the test drum, multi-surface closed test track, and the open road. The result is an evolution of technology with purpose.

CONSTRUCTION
Tube Type - A clincher tyre that is only functional with an inner tube to maintain inflation pressure as defined by ISO 4223-1. The historically standard bicycle tyre relies on the use of an inner tube to maintain inflation pressure. The inner tube serves two purposes: maintaining inflation pressure along with providing physical pressure on the tyres bead against the rim hook and sidewall to help keep it safely in place.

COMPOUND
Graphene Silica Road - A proprietary blend of synthetic and natural rubbers enhanced with Graphene and next generation amorphous spherical Silica; our all-new Dynamic:GSR compound has been developed with the single purpose of expanding the Magic-Triangle with improved Rolling Efficiency, Traction and increased Durability. The combination of Graphene, Amorphous Round Silica allows us to independently improve:

Rolling Efficiency | +10.1%
Traction | +8.0%
Wear | +7.2%
% vs. standard compound Graphene up to 1 PHR

UNDER-TREAD BREAKER BELT
R:Shield - This is a layer of additional puncture protection located under the tyres tread cap. Tyres utilizing our R:Shield offer excellent puncture protection while their sidewalls remain supple to ensure high performance.

Size and Specifications
Type	Tube Type Clincher	Tube Type Clincher	Tube Type Clincher	Tube Type Clincher
Compound	Dynamic:GSR	Dynamic:GSR	Dynamic:GSR	Dynamic:GSR
Technology	R:Shield 120tpi	R:Shield 120tpi	R:Shield 120tpi	R:Shield 120tpi
Colour	BLK or TAN	BLK or TAN	BLK	BLK
ETRTO	25-622	28-622	30-622	32-622
Size	700x25c	700x28c	700x30c	700x32c
Weight	210g	235g	250g	265g

Optional Rim Widths

Crotchet (C): Rim Inner Width Measurement Millimetres
	Size	25-622 | 700x25	28-622 | 700x28	30-622 | 700x30	32-622 | 700x32
13
14
15
16
17
18
19
20
21
22
23
24
25
Allowable Inner Rim Width
Optimal Inner Rim Width
Tube Type clincher tyres for use on Crotchet (C) type rimes only.

Maximum Tyre Pressure

Clincher Tyre Size	Tube Type		Tubeless Complete
	Crochet (C)		Tubeless Complete (TC)		Tubeless Straight Sidewall (TSS)
	PSI	Bar	PSI	Bar	PSI	Bar
25-622 | 700x25	120	8.2	100	6.8	72.5	5.0
28-622 | 700x28	110	7.5	85	5.8	72.5	5.0
30-622 | 700x30	110	7.5	80	5.5	72.5	5.0
32-622 | 700x32	100	6.8	75	5.2	72.5	5.0
Stated maximum tyre pressure is for tyre only. Do not exceed labelled maximum pressure of rim.
ETRTO guidelines limit maximum tyre pressure to 72.5 psi / 5 bar when used with Tubeless Straight Sidewall (TSS), aka Hookless type rims.All published weights are 7% Specifications subject to change without notice.
