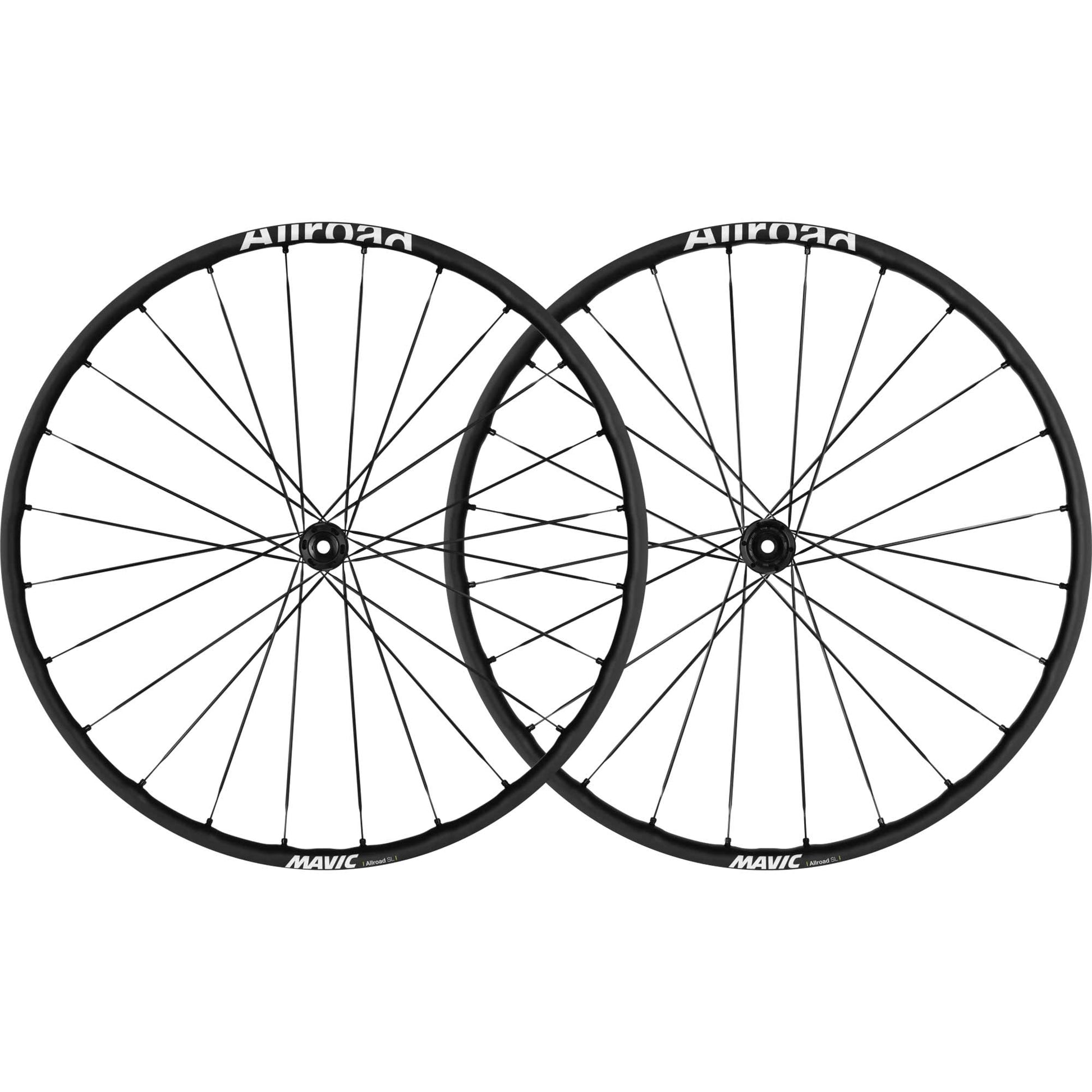

Mavic Allroad SL Disc XDR Pair - 700c - Bolt-Thru

Gravel, dirt, teeth-chattering cobbles, ride it all with confidence, in control, on this lightweight and responsive wheel. Featuring a new wider fully airtight UST tubeless rim to accommodate wider tyres. The Allroad SL is the pinnacle of efficiency, ride quality and speed on the roughest roads, the loosest gravel tracks and all paths that lead to them.
Thanks to its 25mm wide UST hookless rims, this wheel offers a smooth ride with a wide range of matching tubeless tyres, from 30mm to 64mm.

**Ride smoother and faster on rough roads, gravel and dirt**

* 25mm wide hookless UST rims for a smooth ride with a wide range of tubeless tyres from 30mm-64mm
* UST Road Tubeless lets you run lower tire pressure for comfort and control on rough roads
* No tubes means less friction, better efficiency and grip, and pinch-flat protection
* Patented aero spokes improves ride quality and speed

**Superlight, durable and easy to use and maintain**

* ISM4D rim saves weight where it matters while protecting durability
* Black Shield rim finish offers 2 times stronger protection against rock impacts and scratches
* Fore drilling makes the rim fully airtight without the need for a rim tape saving 30gs per wheel
* ID360 freewheel is low and easy maintenance and automatic bearing preload (QRM Auto) requires no adjustment and guarantees long-term durability

**Laterally stiff and vertically compliant for a dynamic ride quality**

* Fore technology keeps the rim upper bridge solid to make the rim stiffer
* Oversize axles and bearings offers greater lateral stiffness
* D360 freewheel technology is 12mm compatible, convertible to quick release

**Weight Pair: 1655g**

**Understanding the different Mavic freehub body acronyms:**

* HG or M11 – Shimano HG Road 11/12x (other speeds with spacer)
* MS - Shimano Microspline
* XD - SRAM XD
* XD-R - SRAM XD-R
* ED11 - Campagnolo 9/12x
* N3W - Campagnolo 13x

___

**ADDITIONAL INFORMATION**

Patented Aero spokes improve the ride quality and speed of the Allroad SL wheel, creating a dynamic, high-performance experience that's almost magical. Fore drilling makes the rim completely airtight, eliminating the need for a rim tape and saving 30g per wheel. That weight saving paired with the fluidity of the ID360 freewheels, maximizes efficiency in the long haul. While lightweight, the freewheel is also easy to maintain thanks to the automatic bearing preload (QRM Auto). UST Tubeless technology allows for reduced tyre pressure, offering premium comfort and better control on the most technical surfaces, as well as reduced friction for increased efficiency and grip, plus protection against flats.

In addition to its exceptional efficiency, the Allroad SL wheel stands out for its lightness, durability and ease of use and maintenance. Using ISM4D rim technology, our engineers saved weight where it matters most, while guaranteeing an almost biblical level of durability. What's more, the Black Shield Rim finish, a combination of anodizing and paint, reinforces against impacts and scratches caused by everything that committed cycling off the paved roadways can dish out.

**Maxtal aluminium alloy**

Light and strong. Exclusive to Mavic, this specific aluminium alloy offers a higher strength to weight ratio than the conventional 6106 alloy.

**ISM 4D Light rim technology**

Inter Spoke milling 4 dimensions is an exclusive Mavic patented concept. Significantly reducing weight and inertia without compromising durability. Quicker accelerations, better handling and more resistance. The right ratio to make the most of every ride. The smooth profile also helps reduce aerodynamic drag.

**Fore tapeless tubeless technology**

Stiffer and stronger. Instead of being drilled, the lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed in it, leaving the upper rim bridge intact

**Instant Drive 360 technology**

Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

**UST tubeless technology**

Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

**SUP Welding technology**

Soudé Usiné Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.

**Black Shield treatment (protects against impacts and scratches)**

This treatment doubles the rims lifespan against stone impacts and scratches. Super strong double coated treatment with a matt finish.

**Infinity hub design**

Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.

**QRM Auto bearing preload technology**

Qualite de Roulements Mavic Auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

**Technical Specifications:**

* Profile depth: 22mm
* Inner width: 25mm
* Front axle: 12x100mm
* Rear axle: 12x142mm
* Discipline: Gravel
* Spokes: Steel Straight Aero
* Rim Diameter: 700c
* Nipples: Brass, Black
* Rim material: Maxtal alloy
* Tyre compatibility: UST Tubeless Ready
* Maximum weight: 120kg including bike
* Braking system: Centre lock only
* Bearings: Aluminium
* ETRTO Size: 622x25TSS
* Weight: 1655g

**What's in the box?**

* Wheelset
* User guide
* UST Valve not mounted on the wheel
* 2 multifunction adjustment wrenches

**Intended Use**

* Minimum tyre size: width 23mm - pressure max. 9Bar/130PSI
* Maximum tyre size: width 64mm - pressure max. 3.5Bar/51PSI
* ASTM category 2 : road and offroad with jumps less than 15cm
