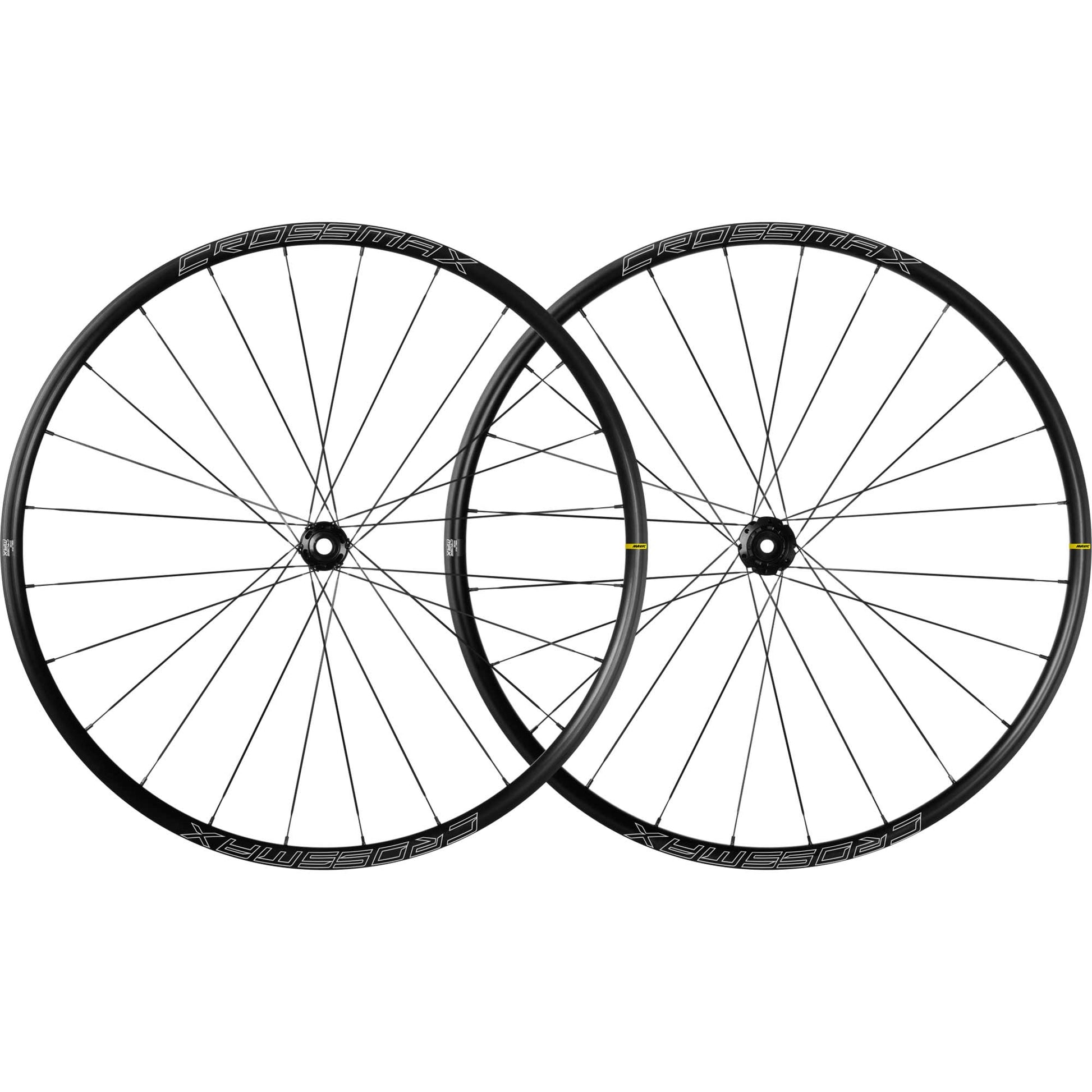

Mavic Crossmax 27.5" Disc Centre Lock MS Pair - 27.5" - Bolt-Thru

Featuring Infinity hubs, ID360 freewheel and Maxtal welded rims, this modern XC wheel lives up to the legendary Crossmax name: strong, reliable, and tubeless ready.

**Light and durable**

* Welded rim construction
* Light and strong rim profile and a a perfectly sealed rim

**Dynamic and agile**

* 24 double butted spokes
* Infinity hub platform
* ID360 double ratchet freewheel​ system

**Tubeless ready technology**

* A tubeless rim profile and tubeless tape make it easy to ride tubeless tyres for more comfort and control

**Weight Pair: 1680g**

**Understanding the different Mavic freehub body acronyms:**

* HG or M11 – Shimano HG Road 11/12x (other speeds with spacer)
* MS - Shimano Microspline
* XD - SRAM XD
* XD-R - SRAM XD-R
* ED11 - Campagnolo 9/12x
* N3W - Campagnolo 13x

___

**ADDITIONAL INFORMATION**

The name Crossmax has a long history in the world of XC riding and racing and this new wheelset lives up to its name with many of the same features and technologies as pro-level XC race wheels, but at a far more attainable price. One of the key factors is the Mavic UST technology, which allows for easy setup of tubeless ready tyres and gives you all the associated benefits including better traction and control, a smoother ride quality and a reduced risk of punctures.
The rim is welded for added reliability and features a 25mm internal width with a hookless profile.

The Infinity lighter hub design optimizes lateral stiffness and spokes tension and the Instant Drive 360 freewheel with a double ratchet system provides fast engagement and top-level reliability. The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies.
The Crossmax is available in 27.5'' with centre lock brake rotors and Boost axles (15x110 front and 12x148 rear), and 6-bolt rotor with Boost or standard axles (15x100 front and 12x142 rear).
The wheel is delivered with valves, replacement spokes and accessories.

**Maxtal aluminium alloy**

Light and strong. Exclusive to Mavic, this specific aluminium alloy offers a higher strength to weight ratio than the conventional 6106 alloy.

**Instant Drive 360 technology**

Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

**UST tubeless technology**

Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

**SUP Welding technology**

Soude Usine Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.

**Infinity hub design**

Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.

**QRM Auto bearing preload technology**

Qualite de Roulements Mavic Auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

**Technical Specifications:**

* Profile depth: 21mm
* Inner width: 25mm
* Front axle: 15x110
* Rear axle: 12x148
* Discipline: MTB - Cross Country
* Spokes: Steel, Straight, extra flat
* Rim Diameter: 27.5"
* Nipples: Steel ABS Black
* Rim material: Maxtal Alloy
* Tyre compatibility: UST Tubeless Ready
* Maximum weight: 150kg including bike
* Braking system: Centre lock or 6 bolt
* Bearings: QRM automatic setting - sealed cartridge
* ETRTO Size: 584x25TSS
* Weight: 1680g

**What's in the box?**

* Wheelset
* User guide
* Rim Tape mounted on wheel
* UST Valve not mounted on the wheel
* 2 replacement spokes for each wheel
* Multifunction adjustment wrench with rear wheel
