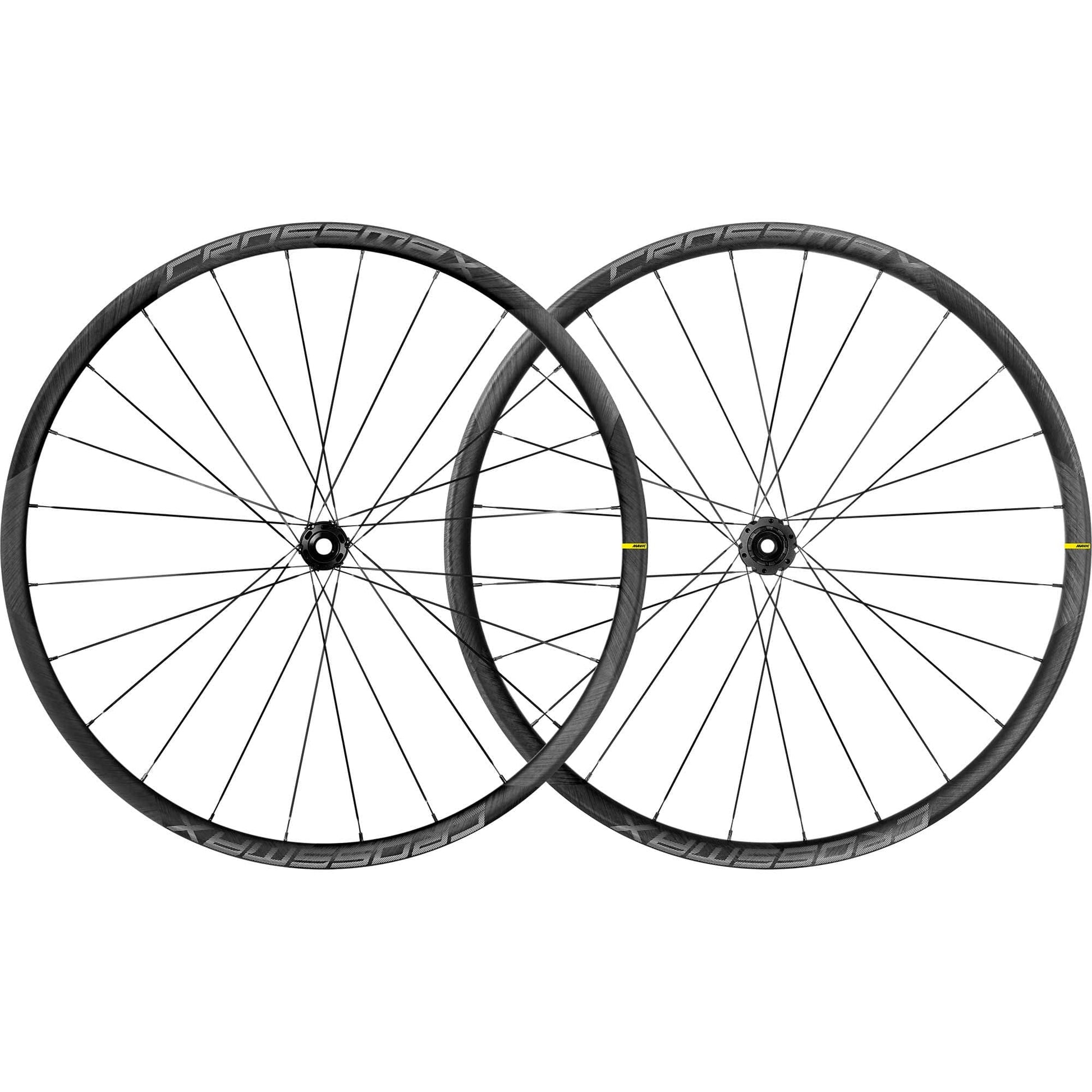

Mavic Crossmax SL R 29 Disc 6 Bolt XD Pair - 29" - Bolt-Thru

If high intensity cross country is your game, this is your wheel. Engineered for aggressive cross country performance, this lightweight 29" wheel features a full-carbon hookless rim to boost quickness, efficiency and control on modern technical XC terrain.

**Hammer up technical climbs with less effort**

* Lightweight full carbon UD2 rims.

**Precise handling and compliance on aggressive XC terrain**

* Enhanced carbon fibre rim laced with 24 straight pull spokes. Laterally stiff and vertically compliant feel on the trail.

**Efficient power transfer**

* Lighter, stiffer Infinity hubs with ultra-reliable ID360 dual ratchet freewheel system for instant acceleration.

**Weight Pair: 1570g**

**Understanding the different Mavic freehub body acronyms:**

* HG or M11 – Shimano HG Road 11/12x (other speeds with spacer)
* MS - Shimano Microspline
* XD - SRAM XD
* XD-R - SRAM XD-R
* ED11 - Campagnolo 9/12x
* N3W - Campagnolo 13x

___

**ADDITIONAL INFORMATION**

Engineered around a 25mm wide rim, the Crossmax Carbon SL R 29 is made for modern XC riding and racing. The full carbon rim delivers lightning-fast acceleration and helps you float up technical climbs, and it has just enough vertical compliance to help you nail every line with precision and control. The external carbon layer features our new UD2 construction for a distinctive look and added durability.

The 25mm inner width is designed to pair well with any modern XC tyre. The rim is laced with 24 straight-pull, double-butted spokes to help achieve a perfect balance between lateral stiffness and vertical compliance. We created a lighter weight hub infinity that, combined with the rim stiffness and strategic spoke lacing, maximizes your pedalling forces for superior power transfer.

Our Instant Drive 360 freewheel with a double ratchet system provides fast engagement so you can sprint and accelerate out of corners faster. The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The Crossmax SL R is available with 6-bolt or centre lock brake rotors in 29" only and is compatible with a 15x110 front axle and 12x148 rear.

**Instant Drive 360 technology**

Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

**UST tubeless technology**

Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

**QRM Auto bearing preload technology**

Qualite de Roulements Mavic Auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

**Technical Specifications:**

* Profile depth: 25mm
* Inner width: 25mm
* Front axle: 15x110mm
* Rear axle: 12x148mm
* Discipline: MTB - Cross Country
* Spokes: Steel Straight Extra Flat
* Rim Diameter: 29"
* Nipples: Steel ABS Black
* Disc Fitment: Centre Lock or 6 Bolt
* Rim material: Material: 100% carbon fibre with UD external layer
* Tyre compatibility: UST Tubeless Ready
* Maximum weight: 120kg including bike
* Braking system: Centre lock only
* Bearings: QRM automatic setting - sealed cartridge
* ETRTO Size: 622x25TSS
* Weight: 1570g

**What's in the box?**

* Wheelset
* User guide
* Rim Tape mounted on wheels
* UST Valve not mounted on the wheel
* 2 Replacement spokes for each wheel
* 2 multifunction adjustment wrenches

**Intended Use**

* Minimum tyre size: width 30mm - pressure max. 4.05Bar/59PSI
* Maximum tyre size: width 64mm - pressure max. 2.45Bar/36PSI
* ASTM category 3 : cross country
