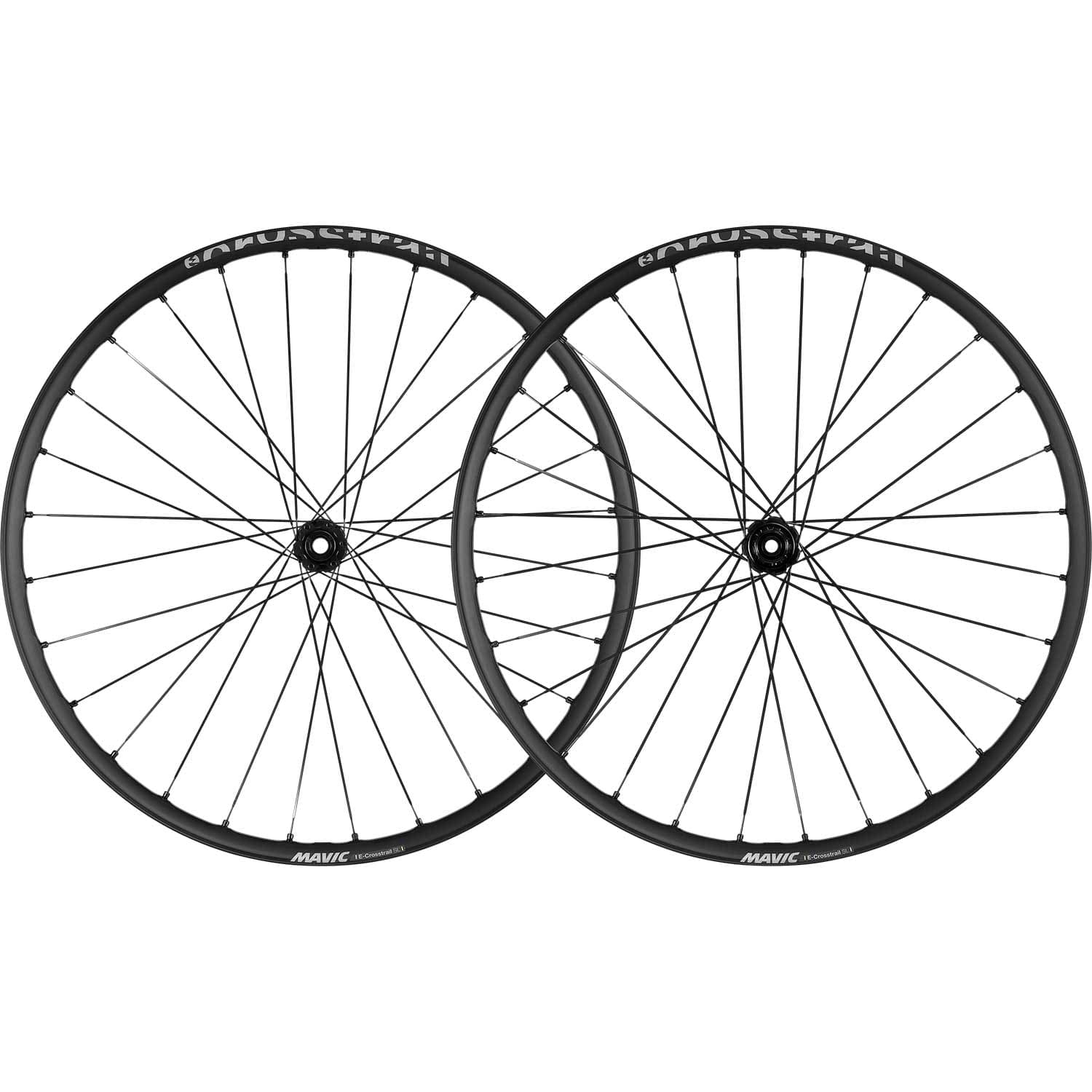

The E-Crosstrail SL is the ultimate e-bike wheel. Robust, agile and lightweight, it combines the best of Mavic's technologies, making it your best companion to smash any trail.

**Ultra Robust**

* The 30mm aluminium rim and patented FORE & PFP technologies make the e-Crosstrail SL an indestructible e-mtb wheel

**Improved responsiveness**

* With INFINITY hubs specially reinforced for e-bike use, power transfer is ultra-efficient and the wheel is even more responsive

**Super Versatile**

* The lightness of its rim and its spoking make the e-Crosstrail SL one of the most versatile e-bike wheels in its category

**Weight**

* **Pair: 1975g**

* **Rear: 1069g**

* **Front: 906g**

**Understanding the different Mavic freehub body acronyms:**

* HG or M11 - Shimano HG Road 11/12x (other speeds with spacer)

* MS - Shimano Microspline

* XD - SRAM XD

* XD-R - SRAM XD-R

* ED11 - Campagnolo 9/12x

* N3W - Campagnolo 13x

___

**ADDITIONAL INFORMATION**

**Maxtal alluminium alloy**

Light and strong. Exclusive to Mavic, this specific aluminium alloy offers a higher strength to weight ratio than the conventional 6106 alloy

**ISM Light rim technology**

Inter Spoke milling 4 dimensions is an exclusive Mavic patented concept. Significantly reducing weight and inertia without compromising durability. Quicker accelerations, better handling and more resistance. The right ratio to make the most of every ride. The smooth profile also helps reduce aerodynamic drag.

**Fore tapeless tubeless technology**

Stiffer and stronger. Instead of being drilled, the lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed in it, leaving the upper rim bridge intact

**Instant Drive 360 technology**

Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

**Infinity hub design**

Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.

**UST tubeless technology**

Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

**SUP Welding technology**

Soudé Usiné Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.

**Black Shield treatment (protects against impacts and scratches)**

This treatment doubles the rims lifespan against stone impacts and scratches. Super strong double coated treatment with a matt finish.

**Infinity hub design**

Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.

**QRM Auto Bearing Preload Technology**

Qualite de Roulements Mavic Auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

**Technical Specifications:**

* Profile depth: 22mm

* Inner width: 30mm

* Front axle: 15x110mm

* Rear axle: 12x148mm

* Discipline: Downhill

* Spokes: Straight Pull, Flat

* Rim Diameter: 29"

* Nipples: Brass, Black

* Rim material: Maxtal

* Tyre compatibility: UST Tubeless Ready Use with Mavic Tubeless Tape

* Maximum weight: 150kg including bike

* Braking system: 6 Bolt

* Bearings: QRM automatic setting sealed cartridge

* ETRTO Size: 622x30TC

* Weight: 1975g
