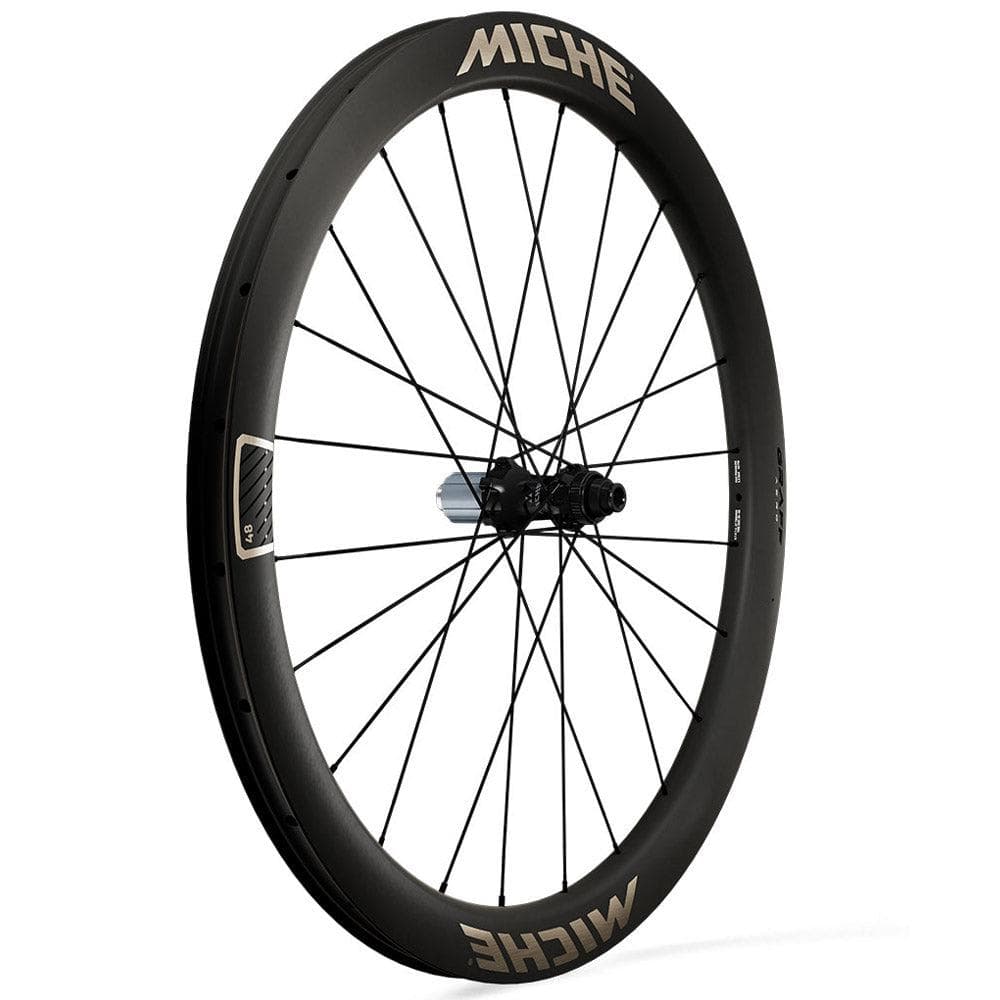

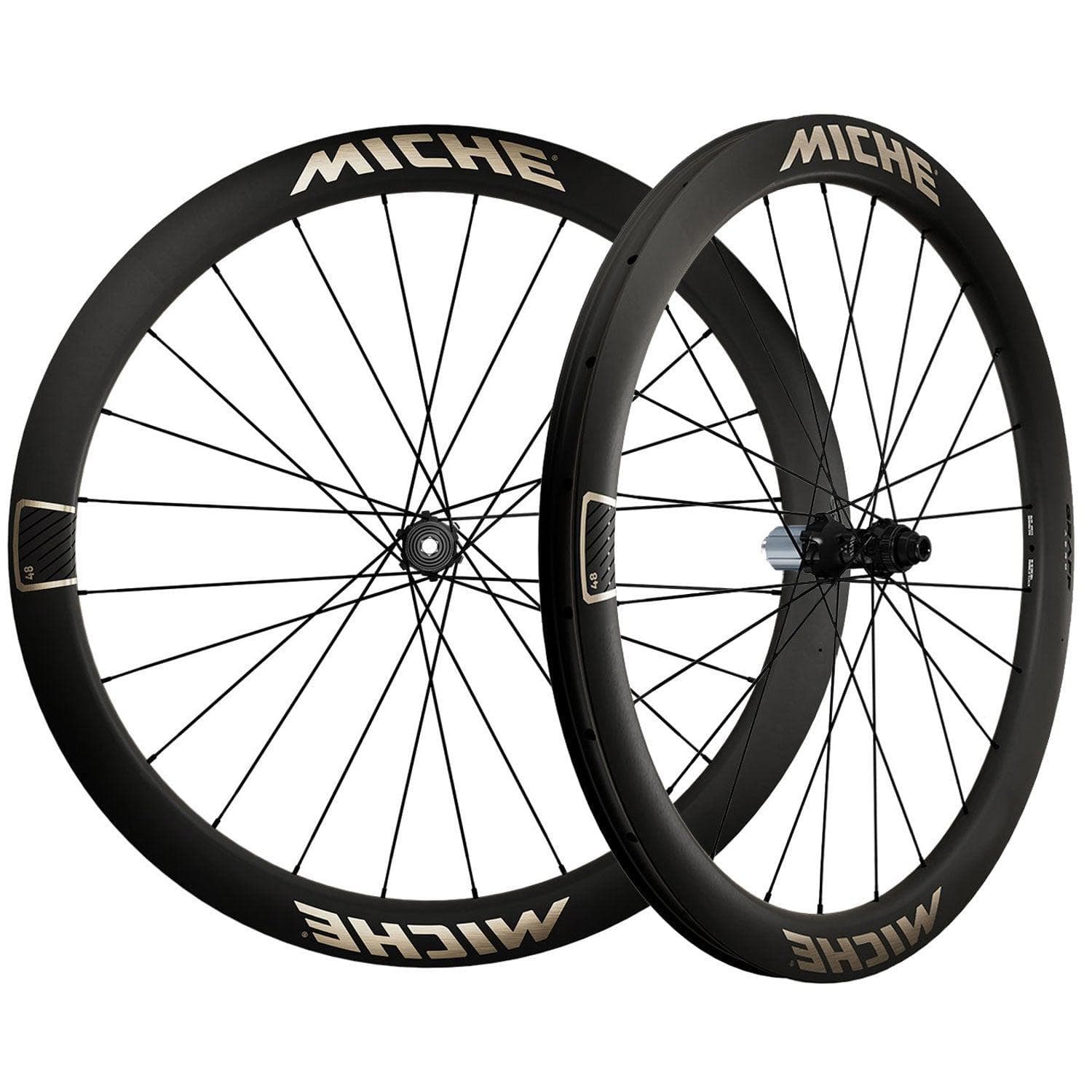

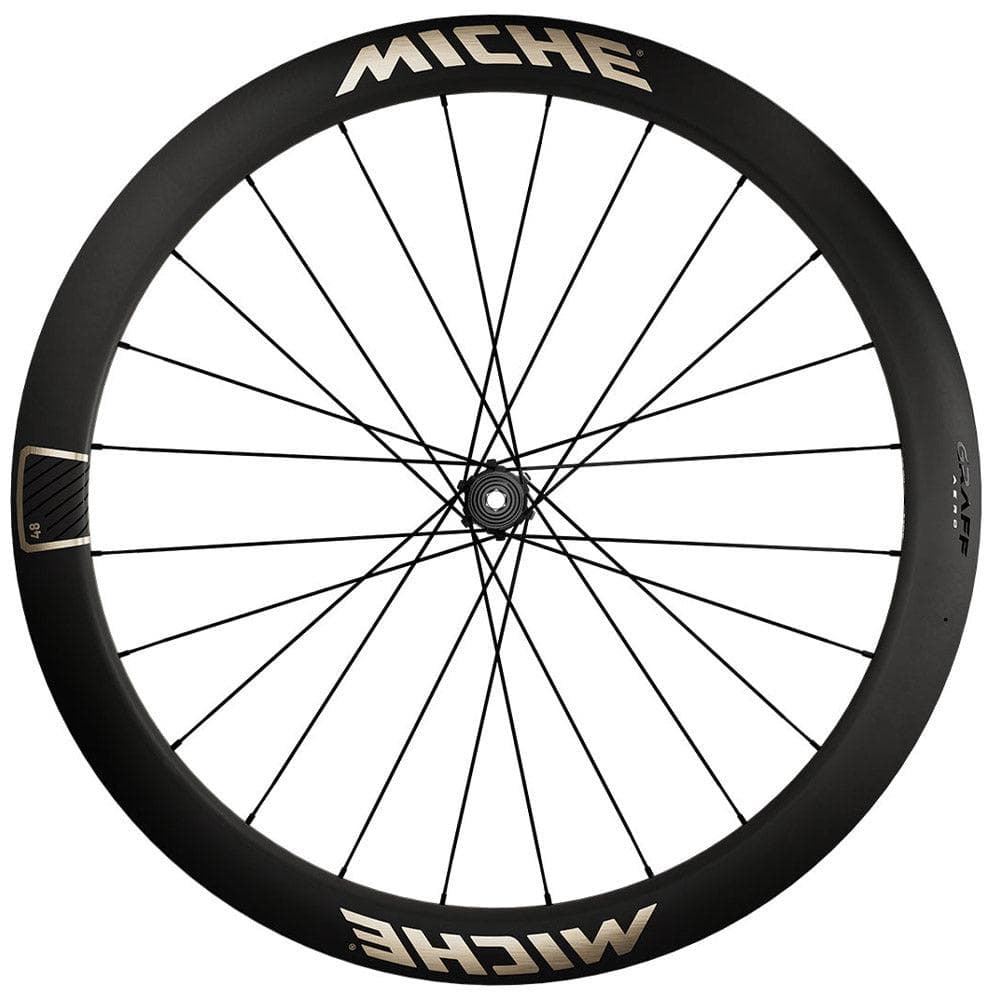

Miche Graff Aero 48 Wheels Microspline Tubeless Pair
Miche Graff Aero 48 Wheels Microspline Tubeless Pair
Couldn't load pickup availability
Engineered for elite gravel racing, the Graff Aero 48 wheelset blends aerodynamic finesse with rugged reliability. Developed in collaboration gravel specialists plus Traka and Unbound winner Ivar Slik, these wheels are built to dominate across unpredictable terrain, where every watt, and every second counts.

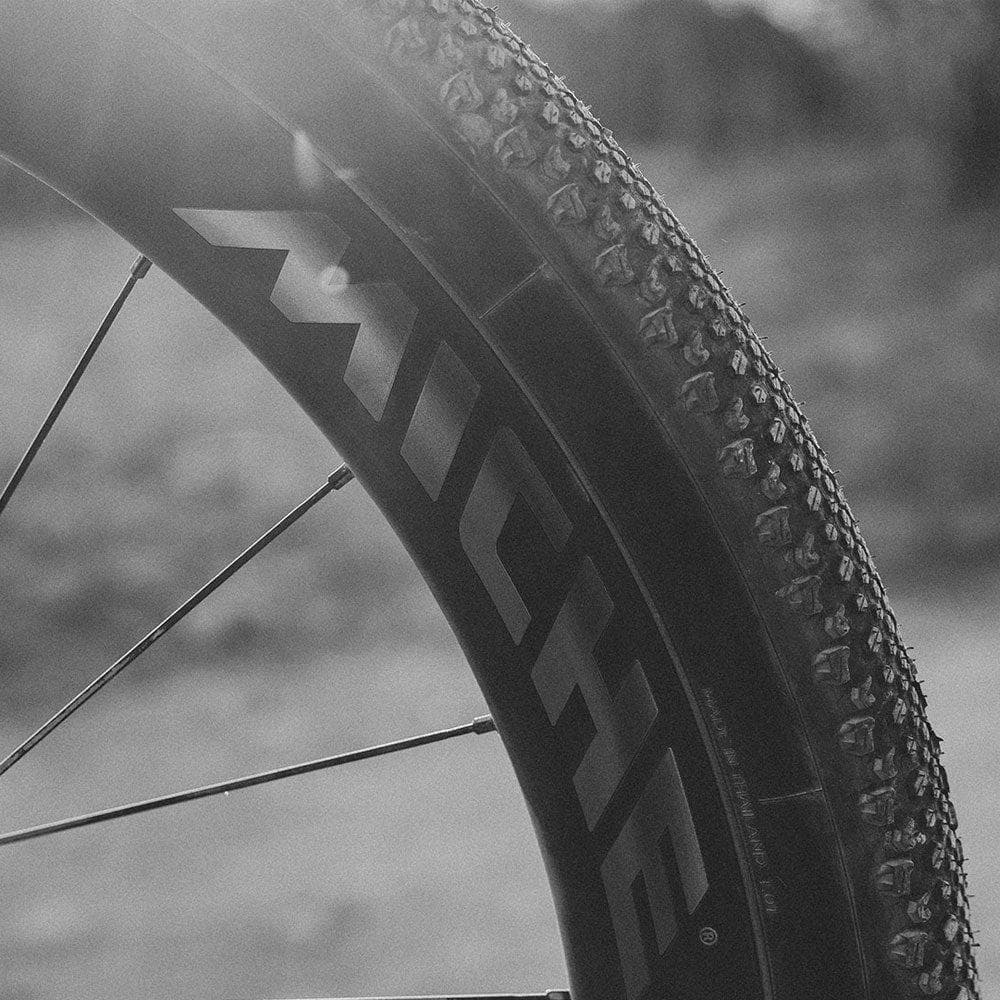

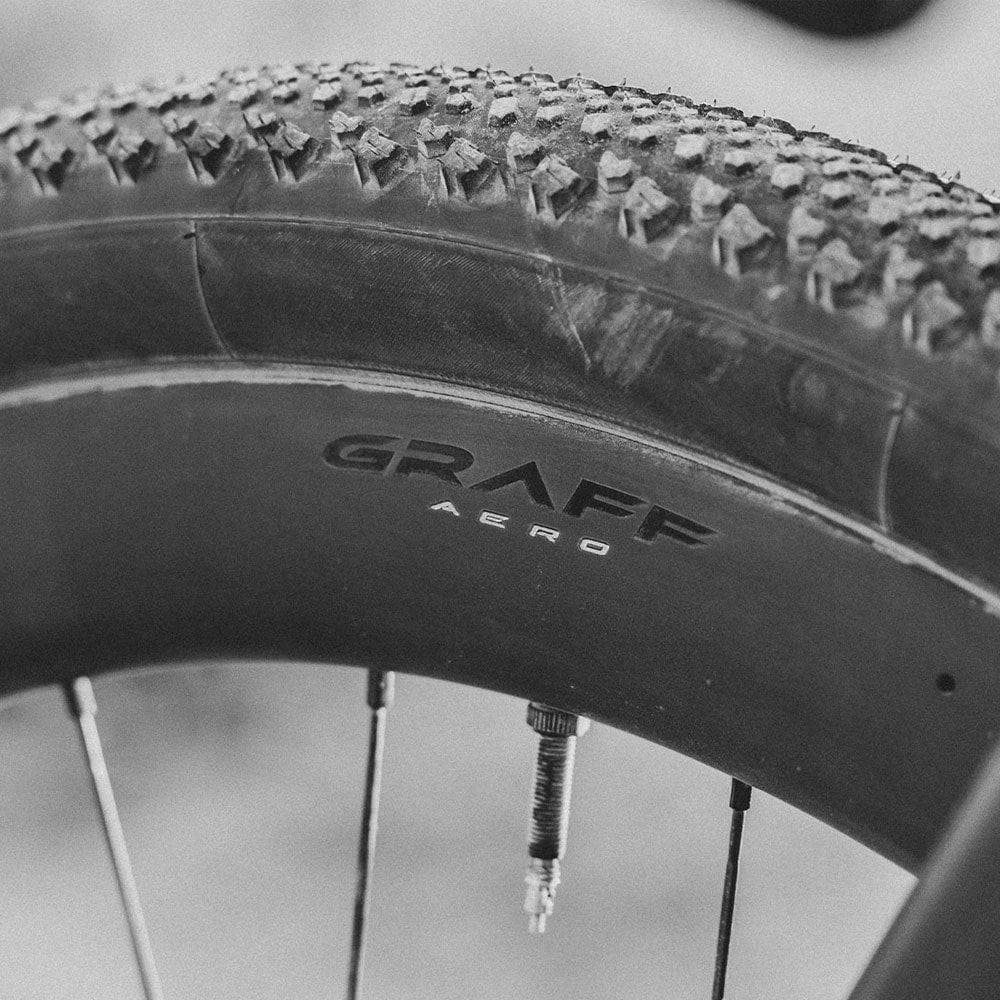

The UD carbon rim features a 48mm depth and a 27mm internal width with a TSS hookless profile, made specifically for tubeless-ready tyres ranging from 35mm to 60mm. An optimised rim shape, paired with double-butted aero spokes, offer superior aerodynamic efficiency and ride stability - even at high speeds and on rough terrain.

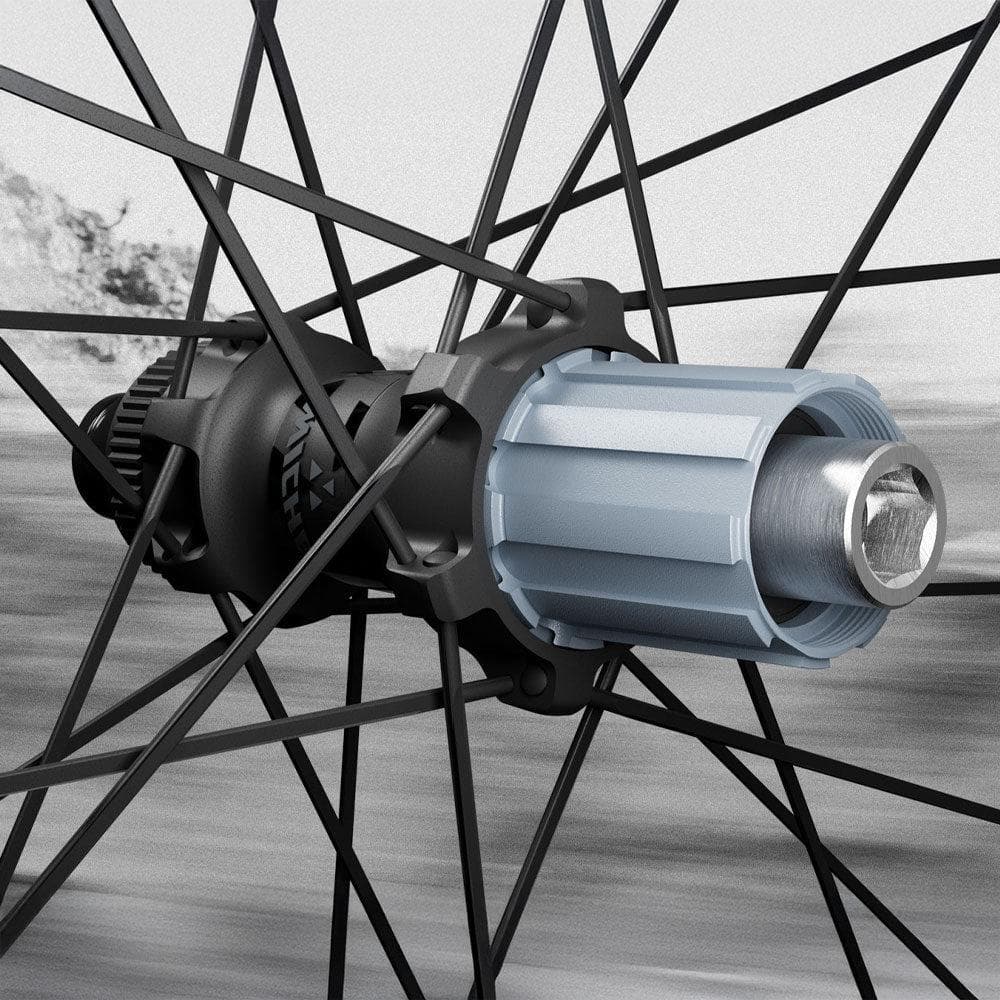

CX-Graff Hub
CX-Graff hubs are fitted with Miche's high-smoothness bearings for maximum fluidity and long-term durability. The 24-spoke lacing pattern (12+12) is engineered to optimise tension distribution and load absorption, tailored to the needs of competitive gravel racing.
Technical Specifications
- Weight: 1525g (Tubeless ready + 12g)
- Compatibility: Campagnolo N3W, Shimano HG - Microspline, SRAM XDR
- Hubs: AL 7075 T6
- Rim profile: 48mm
- Rims: 622 x 25 TSS UD Carbon fibre
- Spokes: Stainless steel black, aero, straight pull, double butted
- Assembly: 24 - 25 Crossing
- O.L.D: 100 - 142mm
- Nipple: AL 7075 T6 / Black
- Bearings: Miche 2RS
- Axles: Front 12mm, Rear 12mm
- Tubeless Ready
- Max Load Weight (Bike & User): 108kg
- ASTM Level: 2
