Specifications
| Brand | ROCKSHOX |
|---|---|
| Category | Forks |
| Discipline | MTB |
| Wheel size | 29" |
| Travel | 180mm |
| Colour | Black, Red |
| Size | 29" |
| Length | 150mm, 160mm, 170mm, 180mm |
| SKU | RSF1274008 |
Description

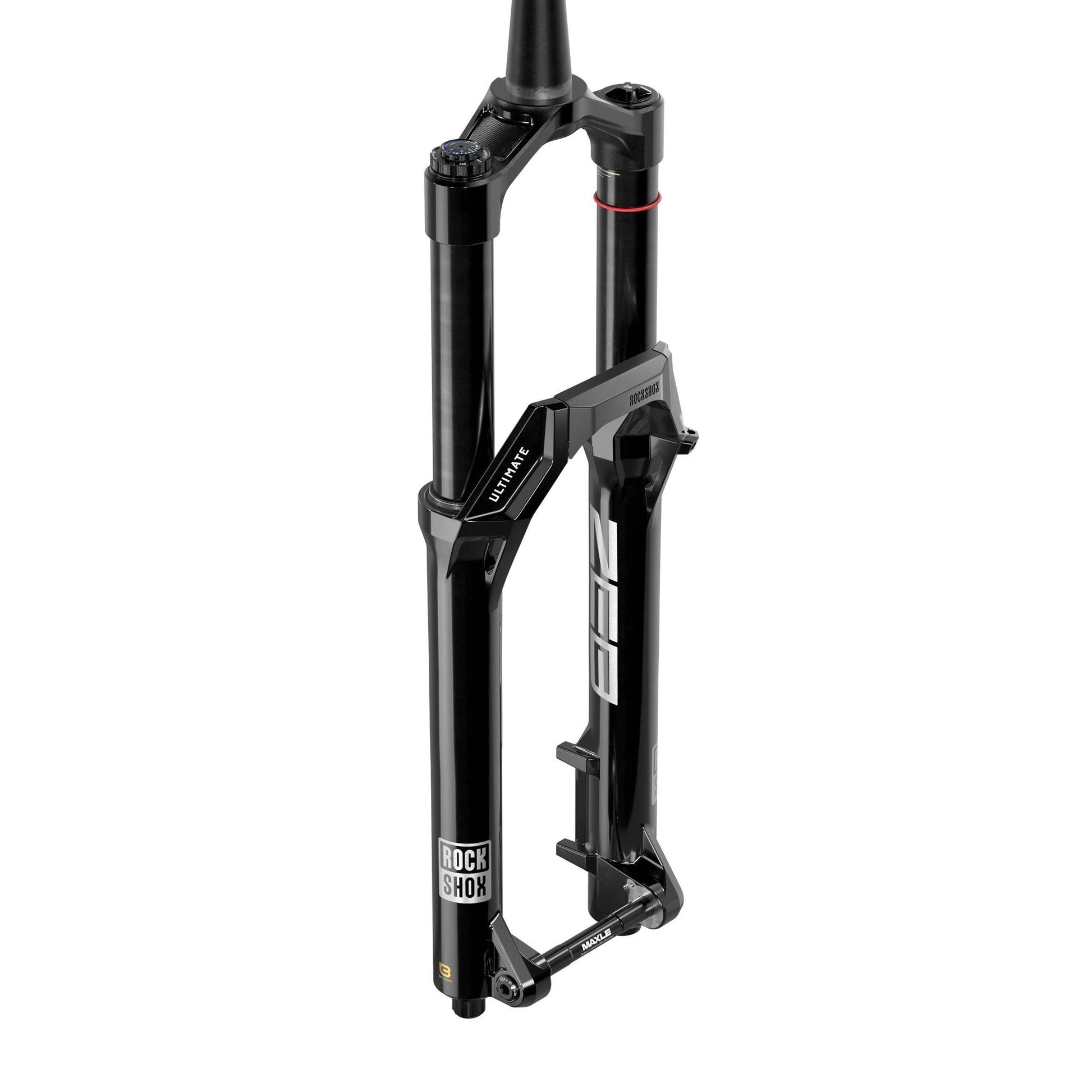

ZEB Ultimate is engineered for riders pushing into the most demanding terrain, from steep double-black descents to aggressive freeride lines. Built around a stiff 38 mm chassis, it delivers the stability and front-end precision required to stay composed through high-speed impacts and rough trails while remaining capable for long days in the mountains.
The LinearXL air spring produces a coil-like feel with a supple initial stroke and strong mid-stroke support, while Adjustable Bottom Out (ABO) allows riders to tune end-stroke progression for confident control on heavy hits. Exclusive to Ultimate models, ButterWagonTech ensures a constant supply of oil to the bushings, reducing friction and maintaining smooth suspension performance throughout the service interval. The Charger 3.2 RC2 damper with ButterCups technology adds independent high- and low-speed compression adjustment while reducing high-frequency trail vibration, delivering precise control and improved rider comfort.
Features
• LinearXL air spring delivers consistent suspension feel with Adjustable Bottom Out control
• ButterWagonTech maintains constant lubrication of bushings to reduce friction
• Charger 3.2 damper with updated rebound and compression tuning for precise suspension performance
• Numbered compression control bezel allows intuitive suspension adjustments
• ButterCups technology reduces high-frequency trail vibration to minimise rider fatigue
• SKF low-friction wiper seals improve durability and suspension smoothness
• Maxima 920 blended 15w suspension fluid reduces internal friction
• Integrated short fender mount with ZEB Integrated Fender included
• Updated graphics package available in Electric Red or Gloss Black finishes
Specifications
Wheel size: 29"
Travel: 150 mm, 160 mm, 170 mm, 180 mm
Damper type: Charger 3.2 RC2 with ButterCups
Fork offset: 44 mm (27.5"), 44 mm (29")
Colour: Electric Red – Gloss, Gloss Black
Axle: 15×110 mm BOOST TC
Upper tube: 38 mm aluminium
Volume reducer: 0/3 tokens, 0/4 tokens, 1/4 tokens, 1/5 tokens
Spring: Linear XL with ButterCups
Crown OD: 59 mm
Bottom out: Externally Adjustable Bottom Out
Compression tune: C5
Rebound tune: R55
