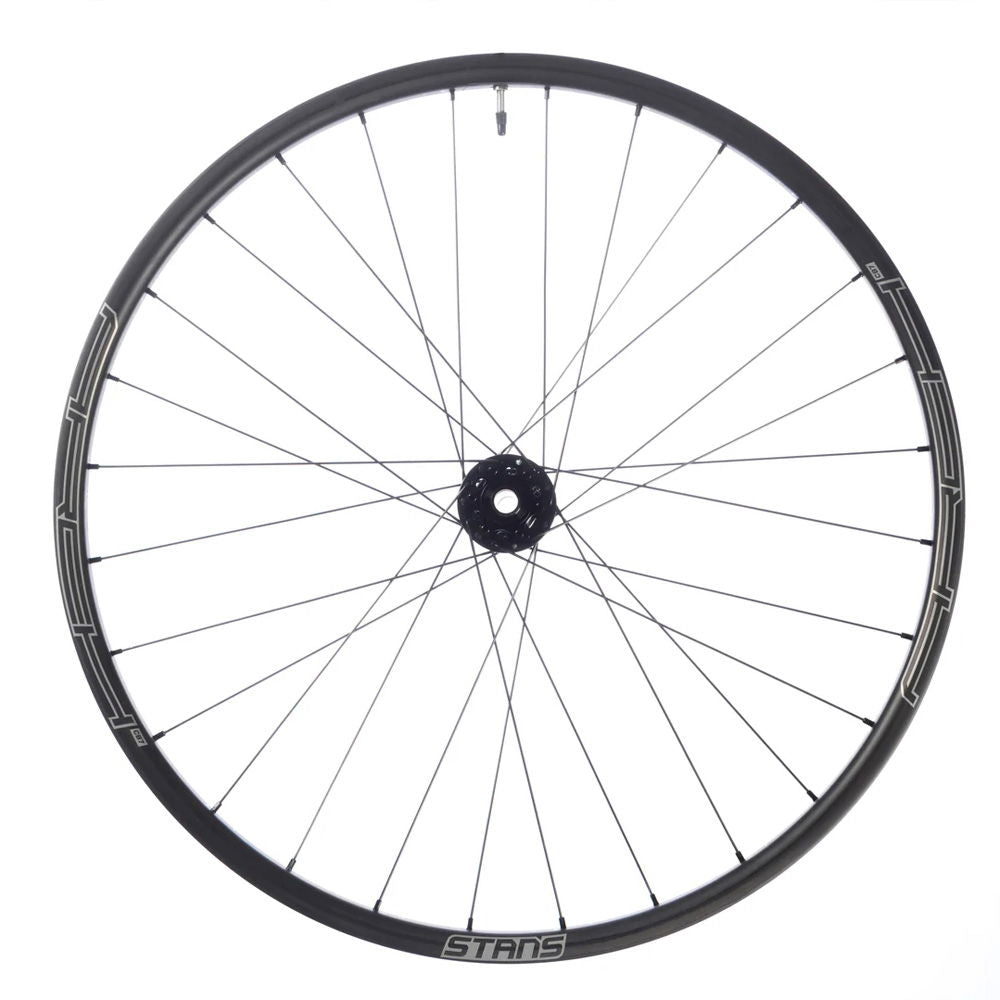

Stans - Wheel Front Arch CB7 27.5 15x100

Imagine the ultimate carbon trail rim. It's wide enough to offer tire stability and control, but narrow enough that your 2.35" tires still corner great. It's light enough to respond instantly from the first pedal stroke, but built with the kind of durability only developed on the Enduro World Series circuit. And when it comes to tubeless set up, it offers the easiest and most trusted system ever made. More than anything it has a clear advantage, a ride quality not found on any other rim and a warranty that backs up all the talk. We created the Arch CB7 to be that ultimate carbon trail rim.

While the competition phones in their carbon rims, were busy creating innovative designs that make an actual difference on the trail. Five years of continual development and refinement have led to the Arch CB7's RiACT radial impact absorbing technology. Unlike lesser carbon rims that ride stiff and transfer impacts and vibration to the suspension and rider, the special layup and shape of the Arch CB7 deflects up to 10mm radially to soak up speed-robbing impacts, all while being laterally stiffer than just about every other carbon and alloy rim on the planet. The result is a rim that defies pinch flats and rolls faster over every trail.

Arch CB7 rims also feature Stans patented Bead Socket Technology, the original tubeless-ready rim design that, combined with our sealant, has become the foundation of all current tubeless-ready systems. The competition can't copy the Arch CB7s low-profile sidewalls and patented Bead Socket Technology rim design. Our BST system has become the most copied tubeless rim technology, but nothing comes close to the ease of setup and reliability of a true BST tubeless rim.

The Arch CB7 wheelset rolls on updated Neo hubs featuring a Durasync 6-pawl freehub with fast 10-degree engagement, and triple freehub bearings to better distribute axle load. The 100% CNC machined hub shell and smoother-rolling centerless ground axle help ensure long life and reliable performance. Sapims Race double-butted spokes are both strong and light. Combined with mechanically locking Sure Lock nipples, these spokes let us build a wheel thats both lightweight and extremely durable. Were also strong believers in the benefits of conventional j-bend spokes, which are easy to replace any almost any shop. Arch CB7 wheelsets are available in configurations to fit most axle styles and cassette types, and are available in both Centerlock and 6-bolt models.

The Arch CB7s performance is backed up by our dedication to quality and taking care of our fellow riders. Register your wheels with us, and your Arch CB7 wheels will be eligible for our 5-year warranty and lifetime crash replacement.

WHAT'S INCLUDED:Arch CB7 wheels include pre-installed tape for tubeless use and presta valves. Designed for trail riding and enduro racing Low-profile sidewalls promote proper tyre shape and reduce rim weight 100% CNC machined hubs with 6-pawl simultaneous engagement Sapim Race 2.0/1.8/2.0 spokes with Secure Lock aluminium nipples RiACT system absorbs impacts and rolls faster Patented Bead Socket Technology rim shape easier tubeless inflation and more reliable seal WideRight rim design optimised for 2.25 - 2.50 tyres Available for SRAM XD and Shimano HG cassettes

• Rim Internal Width: 26.0mm
• Rim Weight: 450g (27.5in)
• Rim External Width: 32mm
• Wheelset Weight: 1720g
• Rim Depth: 19.5mm
• Spokes: Sapim Force Black 2.0/1.8/2.0mm
• Front Wheel Weight: 799g
• Rear Wheel Weight: 921g
• Nipples: Sapim Secure Lock Alloy Black
• ERD: 563mm (27.5in)
• Hub: Neo with Durasync
• ETRTO: 584x26 (27.5)
• Hole Count: 28-hole, 28-hole
• ISO: 27.5inx32mm
• Rim Material: Carbon
• Tape: 25-27mm
• Hub Colour: Black
• Max Spoke Tension: 105kgf (1030N)
• Rim Colour: Black
• Max Rider Weight: 250lbs (113 kilo)
• Brakes: Disc Only
• Max Pressure with 2.20in Tyre: 39psi
• Max Pressure with 2.50in Tyre: 36psi
• Valve: 35mm Presta
