Tektro - HD-E350 - Disc Brake with cut off - RH

The Tektro HD-E350 brake is the perfect upgrade to any eBike requiring a brake with a motor cut off switch.

Available aftermarket as a Left or Right hand set with a 1.9m long hose. It features the EZ Plug in system which means the brake is pre-bled and pressure tested with a plugged Hose & Lever [not attached]. There is no need to bleed this brake.

The brake's motor cut off wire can easily be joined to your existing wire using the included cable connector.
Click here for the full cable connection instructions

The hose can be simply routed and cut to length to suit your bike, then attached to the lever. The full installation instructions are on Video and PDF here:


PDF Version:
Click here for the full installation instructions Powerful, lightweight and reliable Hydraulic 2 piston Post Mount Caliper.
Power cut off sensor for eBike motors.

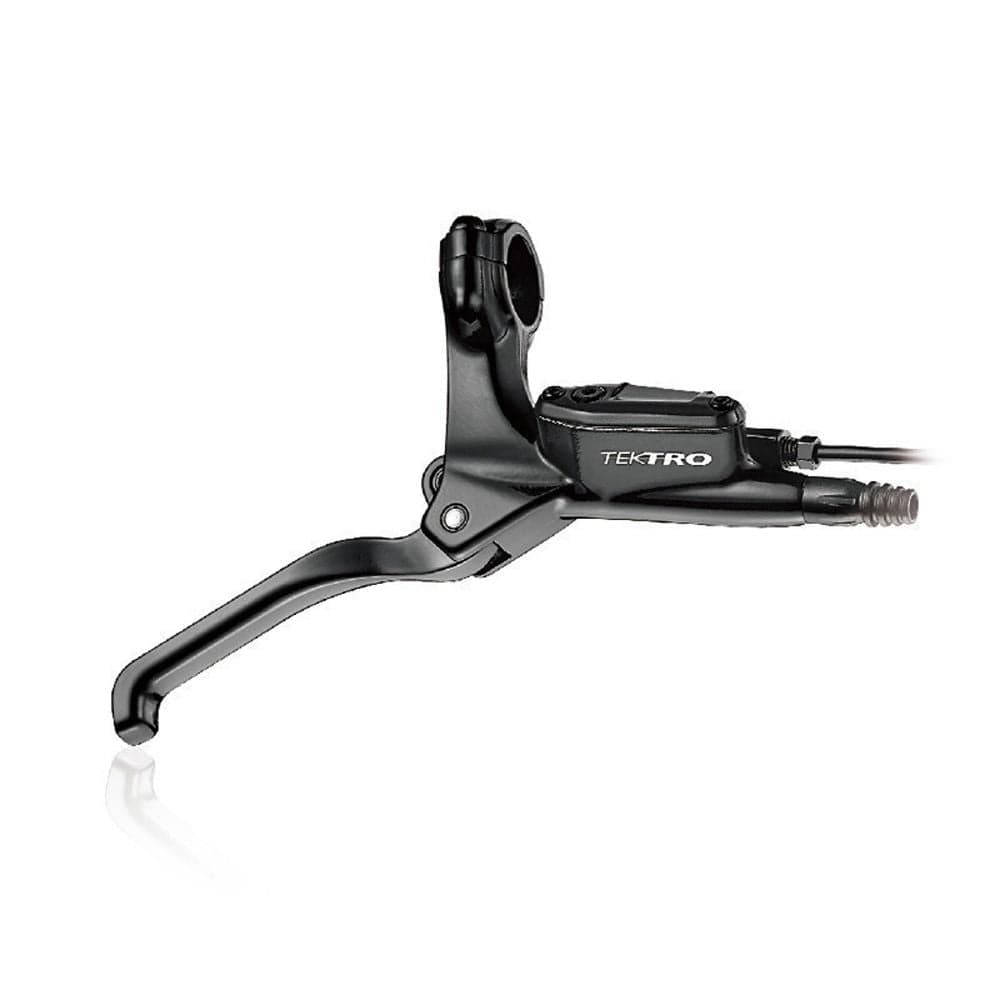

Ergonomic 2-finger lever with reach adjustment.
The low-noise resin brake pads provide smooth braking with easy pad replacement.
All parts are available as spares.
Click here for the full installation instructions

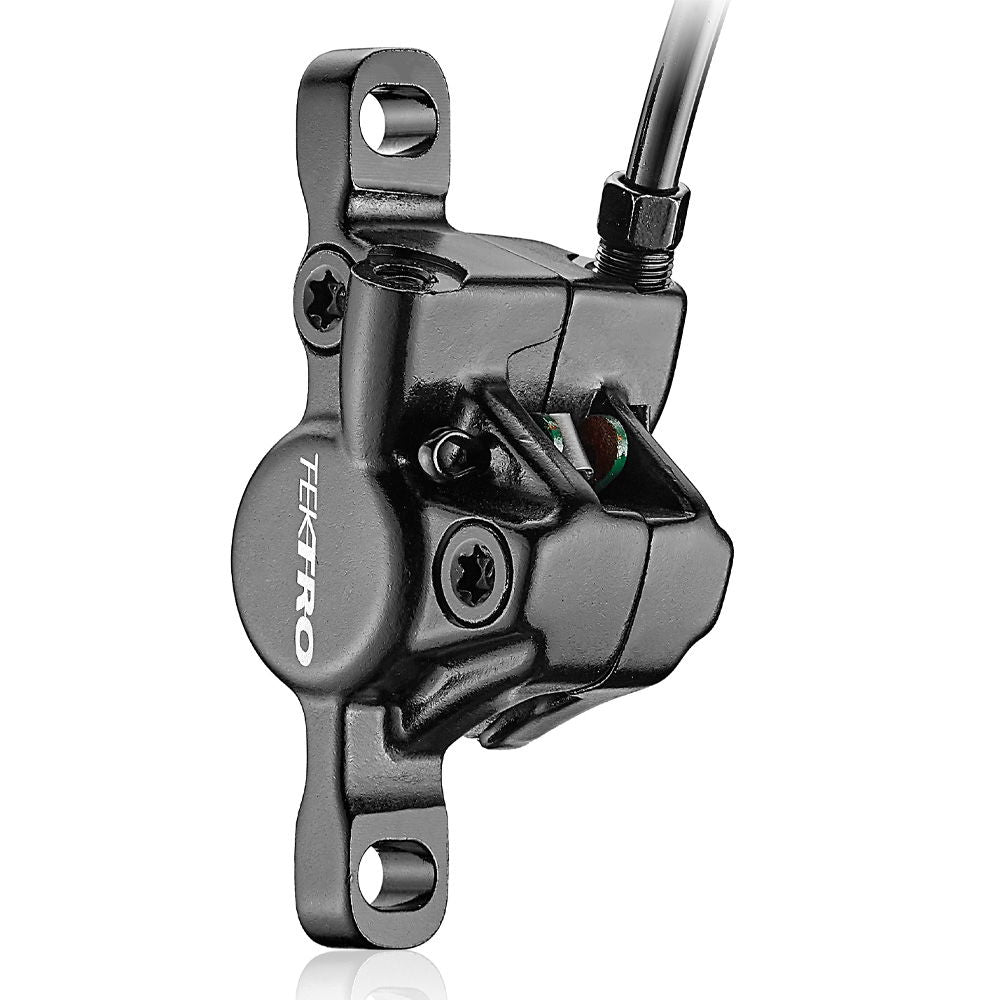

Caliper: Forged aluminium body. Post Mount

Hose: 5.0mm x 1.9m

Oil: Tektro TRP mineral oil

Finish: Black only

Disc: 1.8mm thickness (not included)

Lever: Aluminium lever / Cast bracket / Two-Piece Clamp / 2 Finger Blade

Pad: Low noise resin pad - Easy replacement. E.10.11

Weight: Front: 302g front / Rear: 322g (Excludes rotor, adapter & mounting bolts)

Includes: Sensor cable connectors x 2 / Olives x3 / Barb x2 / Caliper mount bolts x2 / Compression nut & cover x1
