Tektro - HD-R285 - Flat Mount Disc Brake - RH

Tektros R285 brake is fitted to countless flat bar road brakes. It features a 3-finger lever blade and flat mount calipers making it the perfect brake for any flat bar road bike, urban bike or commuting bike.
Available aftermarket as a Left or Right hand set with a 1.9m long hose. It features the EZ Plug in system which means the brake is pre-bled and pressure tested with a plugged hose and lever [not attached]. There is no need to bleed this brake.
The hose can be simply routed and cut to length to suit your bike, then attached to the lever. The full installation instructions are on Video and PDF here:


PDF Version:
Click here for the full installation instructions

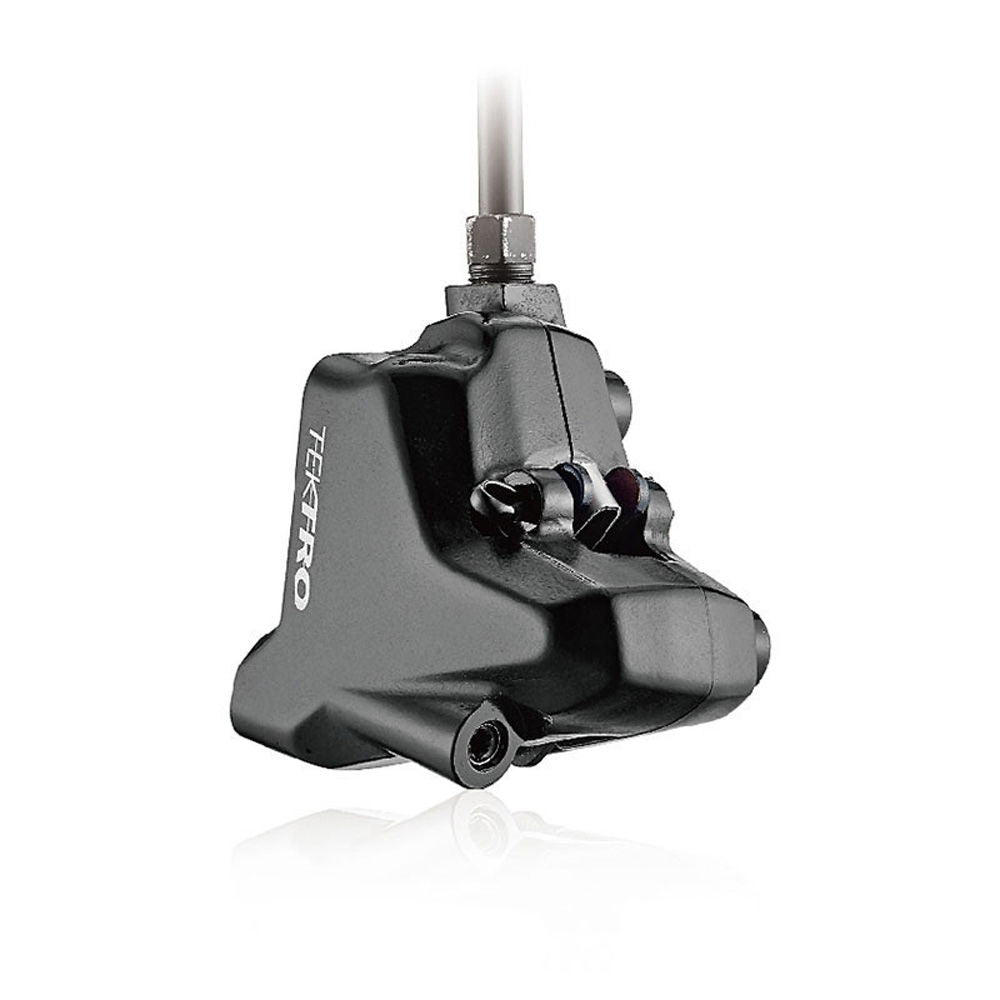

Powerful and reliable hydraulic 2 piston Flat Mount Caliper.

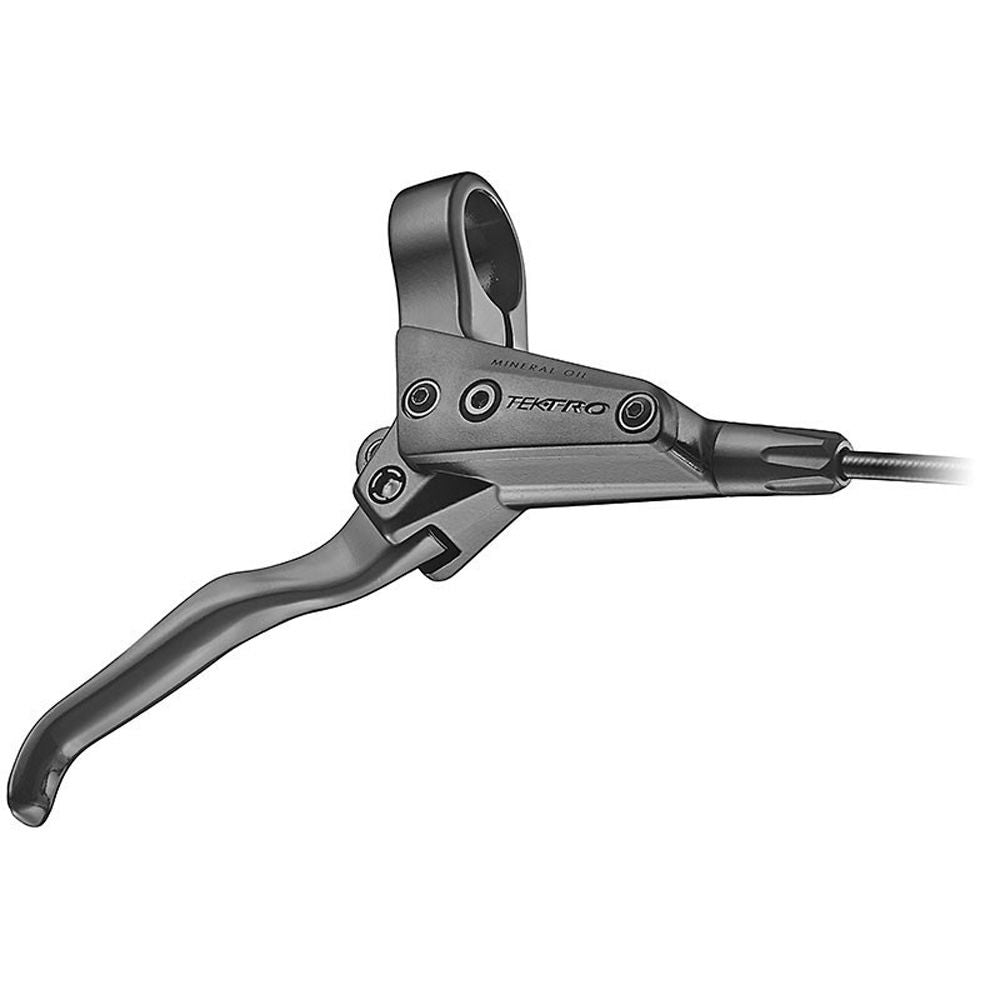

Ergonomic 3-finger lever with reach adjustment. Lever blades are available as spares.

The low-noise resin brake pads provide smooth braking with easy pad replacement.

All parts are available as spares.

Caliper: Forged aluminium body. Flat Mount

Hose: 5.0mm x 1.9m

Oil: Tektro TRP mineral oil

Finish: Black only.

Disc Rotor: 1.8mm thickness required (not included)

Lever: Aluminium lever / Cast bracket / One-Piece Clamp / 3 Finger Blade.

Reach: 86 - 90mm.

Pad: Low noise resin F10 pad - Easy replacement.

Weight: Front: 287g front / Rear: 307g (Excludes rotor, adapter & mounting bolts).

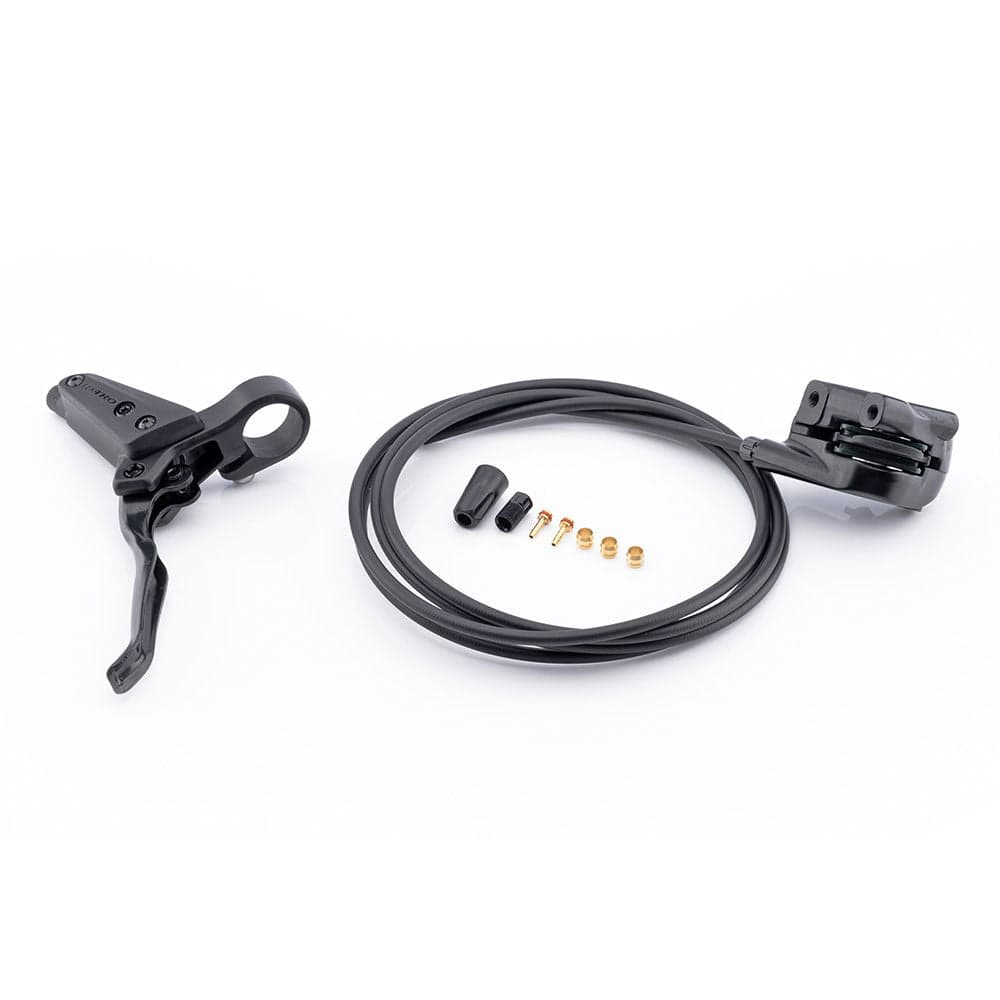

Includes: Olives x3 / Barb x2 / Caliper mount bolts x2 / Compression nut & cover x1.
