Tektro - J2820 Junior Disc Brake - RH

Fitted to the best quality children's bikes as original equipment [OE] the J2820 Hydraulic brake from Tektro is a market leader for junior brakes.
Available aftermarket as a Left or Right hand set with a 1.9m long hose. It features the EZ Plug in system which means the brake is pre-bled and pressure tested with a plugged Hose & Lever [not attached]. There is no need to bleed this brake.
The hose can be simply routed and cut to length to suit your bike, then attached to the lever. The full installation instructions are on Video and PDF here:


PDF Version:
Click here for the full installation instructions

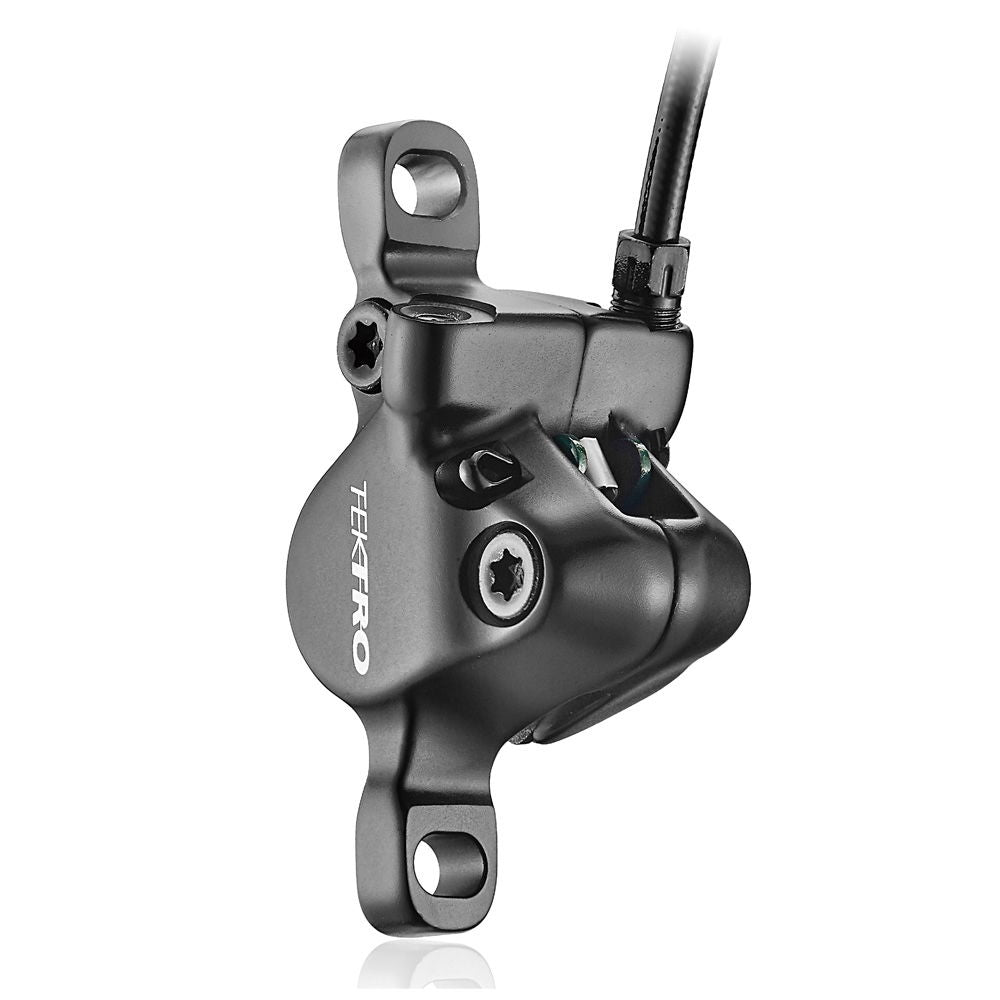

Powerful, lightweight and reliable Hydraulic 2 piston Post Mount Caliper.

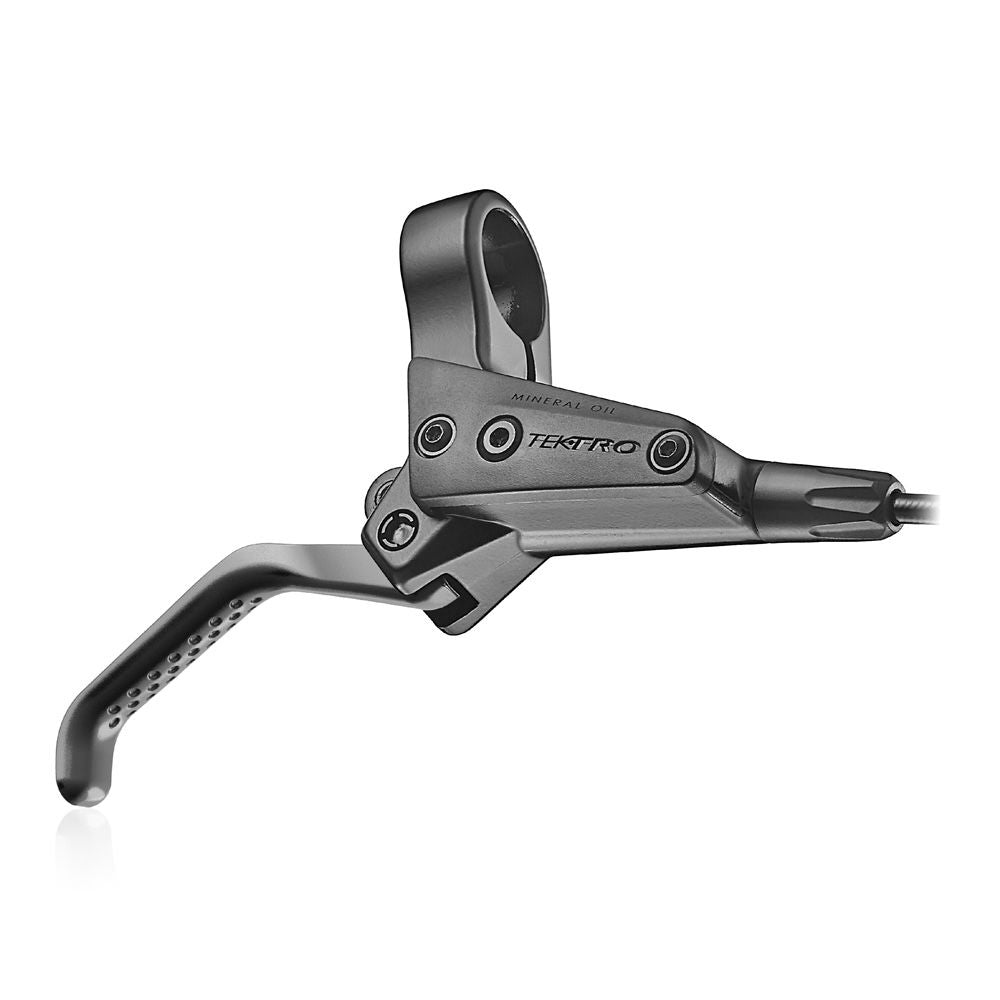

Short reach 2-finger lever with reach adjustment. Lever blades are available as spares.

The low-noise resin brake pads provide smooth braking with easy pad replacement.

All parts are available as spares.

Caliper: Forged aluminium body. Post Mount

Hose: 5.0mm x 1.9m

Brake fluid: Tektro TRP mineral oil

Finish: Black only

Rotor: 140mm / 160mm recommended. 1.8mm thickness (not included)

Lever: Aluminium lever / Cast bracket / One-Piece Clamp / 2 Finger Blade

Reach: 75mm

Pad: Low noise resin pad - Easy replacement. E.10.11

Weight: Front: 300g front / Rear: 320g (Excludes rotor, adapter & mounting bolts)

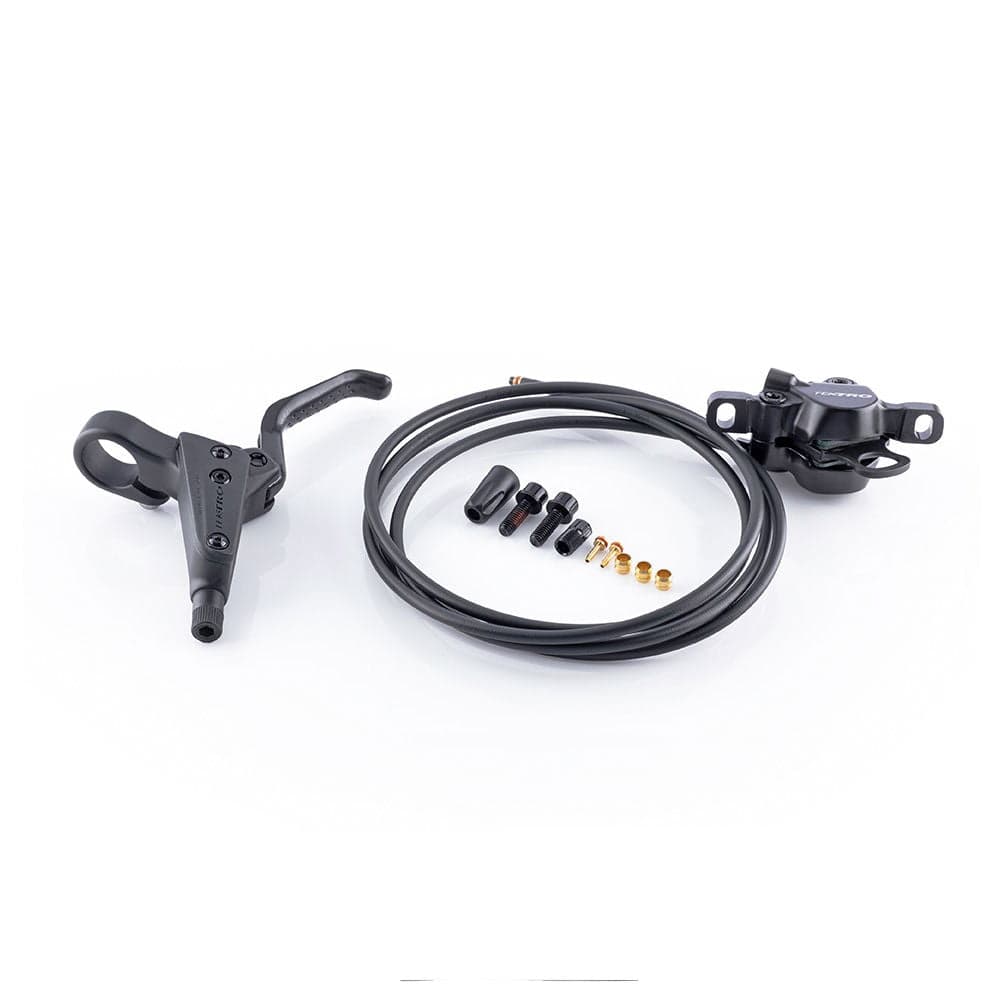

Includes: Olives x3 / Barb x2 / Caliper mount bolts x2 / Compression nut & cover x1
