Tektro - M535 Gemini SL Disc Brake - RH

Tektro's entry level 4 piston brake offers outstanding performance for mountain bikes or eBikes at an affordable price.
Available aftermarket as a Left or right-hand set with a 1.9m long hose. It features the EZ Plug in system which means the brake is pre-bled and pressure tested with a plugged Hose & Lever [not attached]. There is no need to bleed this brake.
The hose can be simply routed and cut to length to suit your bike, then attached to the lever. The full installation instructions are on Video and PDF here:


PDF Version:
Click here for the full installation instructions

Powerful and controllable Hydraulic 4 piston Post Mount Caliper disc brake.

Extra thick 5mm overall balance resin brake pads.

Suitable for eBikes and mountain bikes requiring increased stopping performance.

Dimpled 2-finger lever with reach adjustment. Lever blades are available as spares.

The low-noise resin brake pads provide smooth braking with easy pad replacement.

All parts are available as spares.

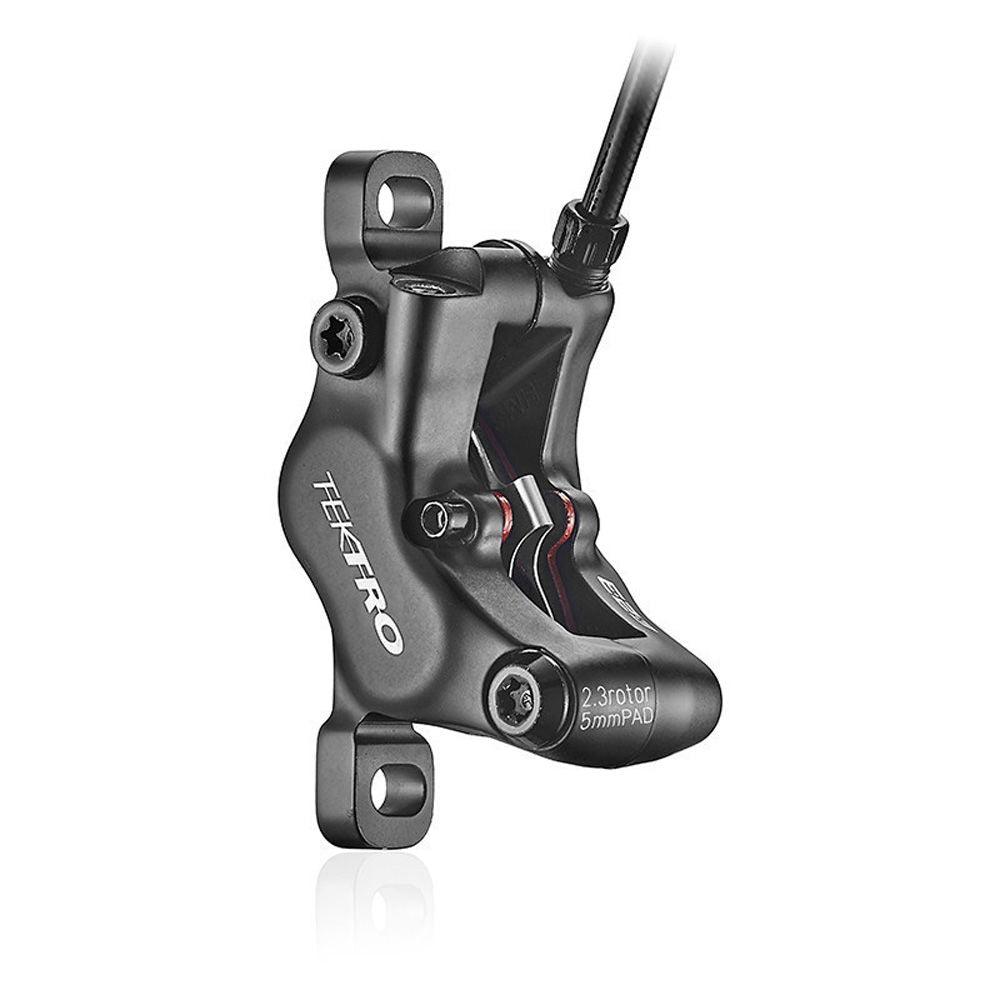

Caliper: 4 piston forged aluminium body. Post Mount

Hose: 5.0mm x 1.9m

Finish: Black only

Disc: 2.3mm thickness required (not included)

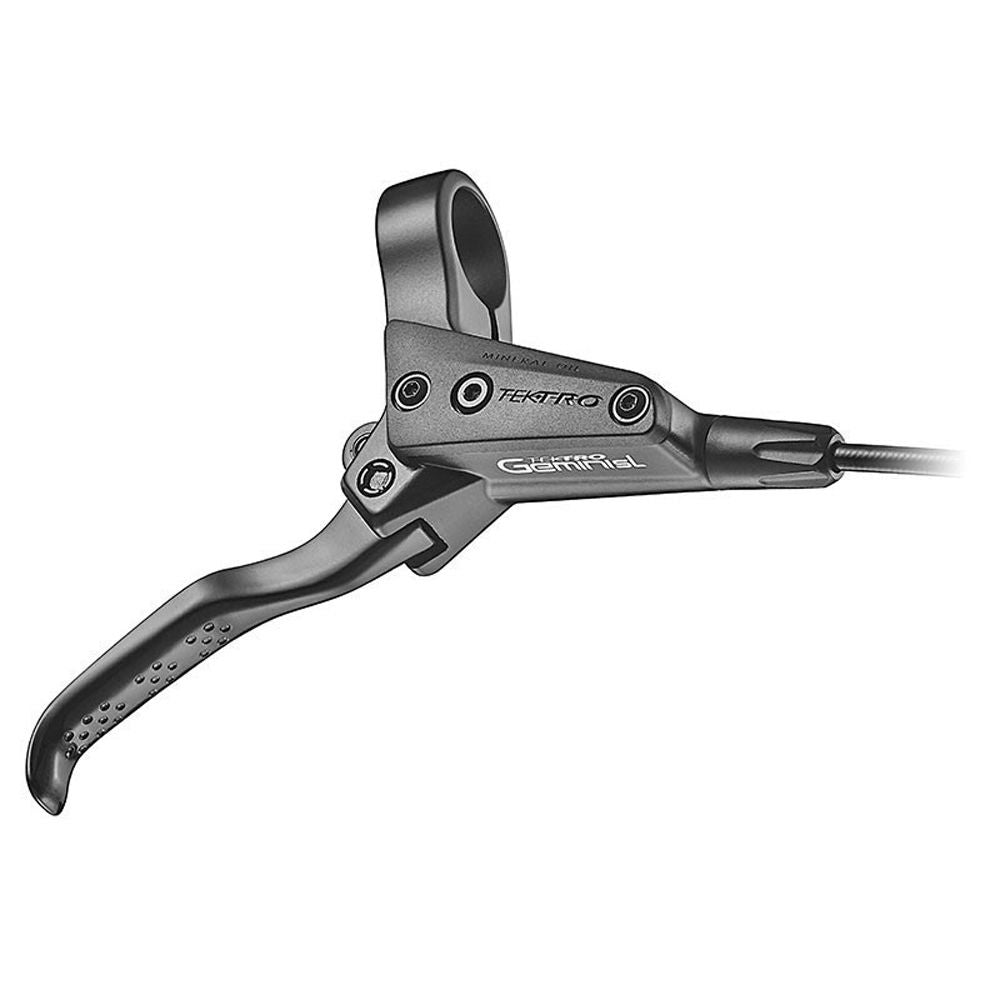

Lever: Aluminium lever / Cast bracket / One-Piece Clamp / 2 Finger Blade

Pad: Q13RS 5mm extra thick pad. Easy replacement

Weight: Front: 300g front / Rear: 320g (Excludes rotor, adapter & mounting bolts)

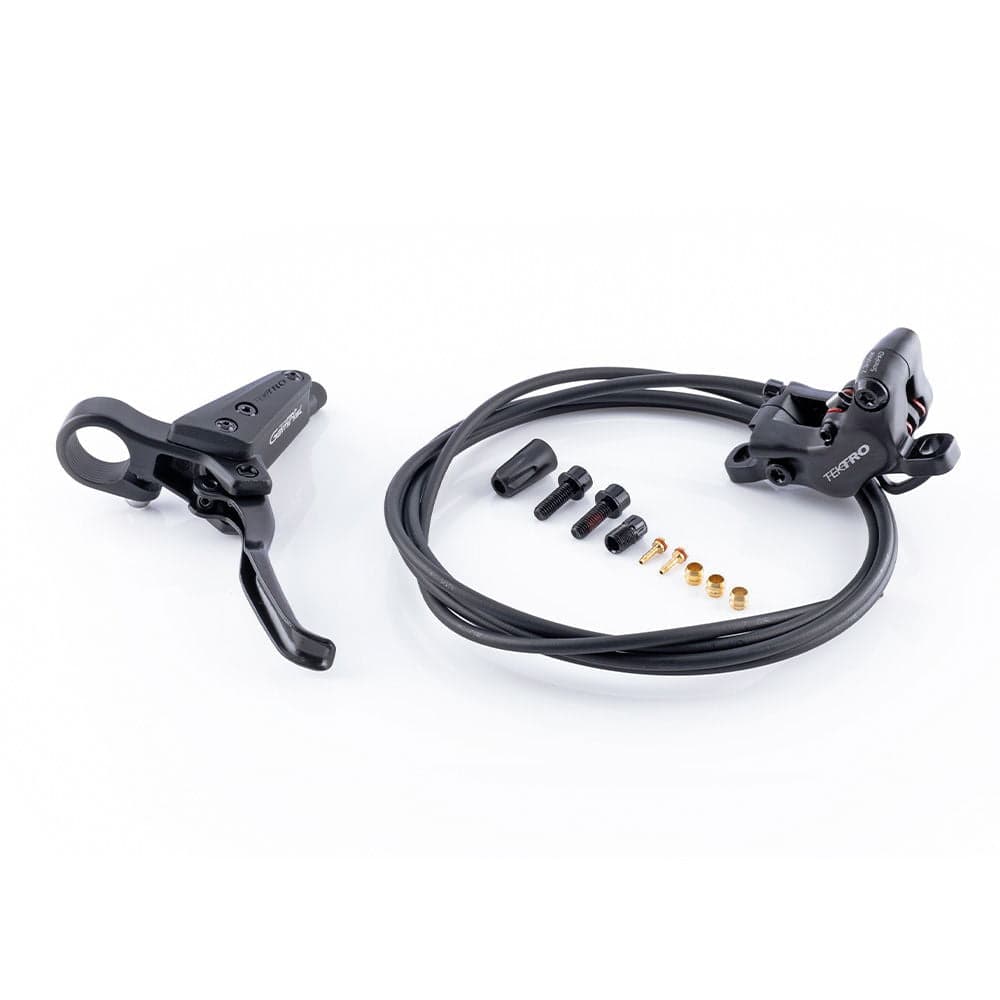

Includes: Olives x3 / Barb x2 / Caliper mount bolts x2 / Compression nut & cover x1
