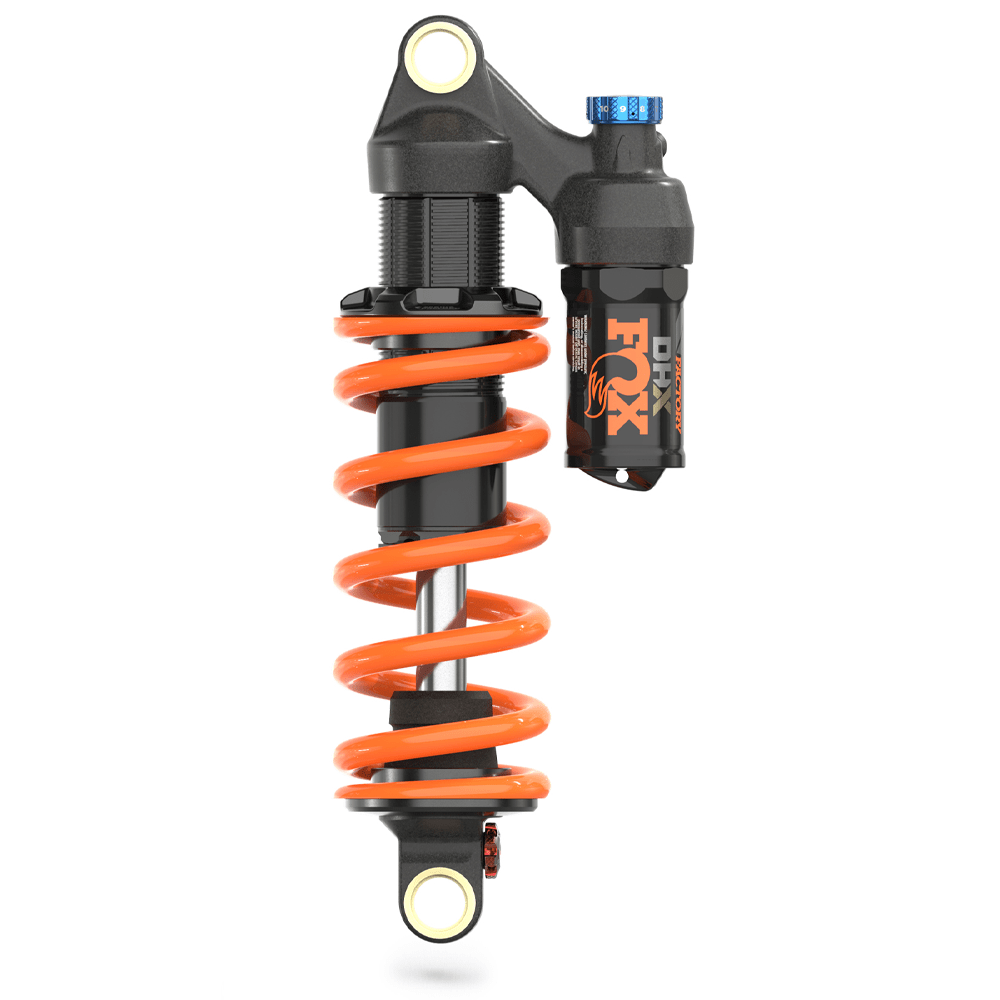

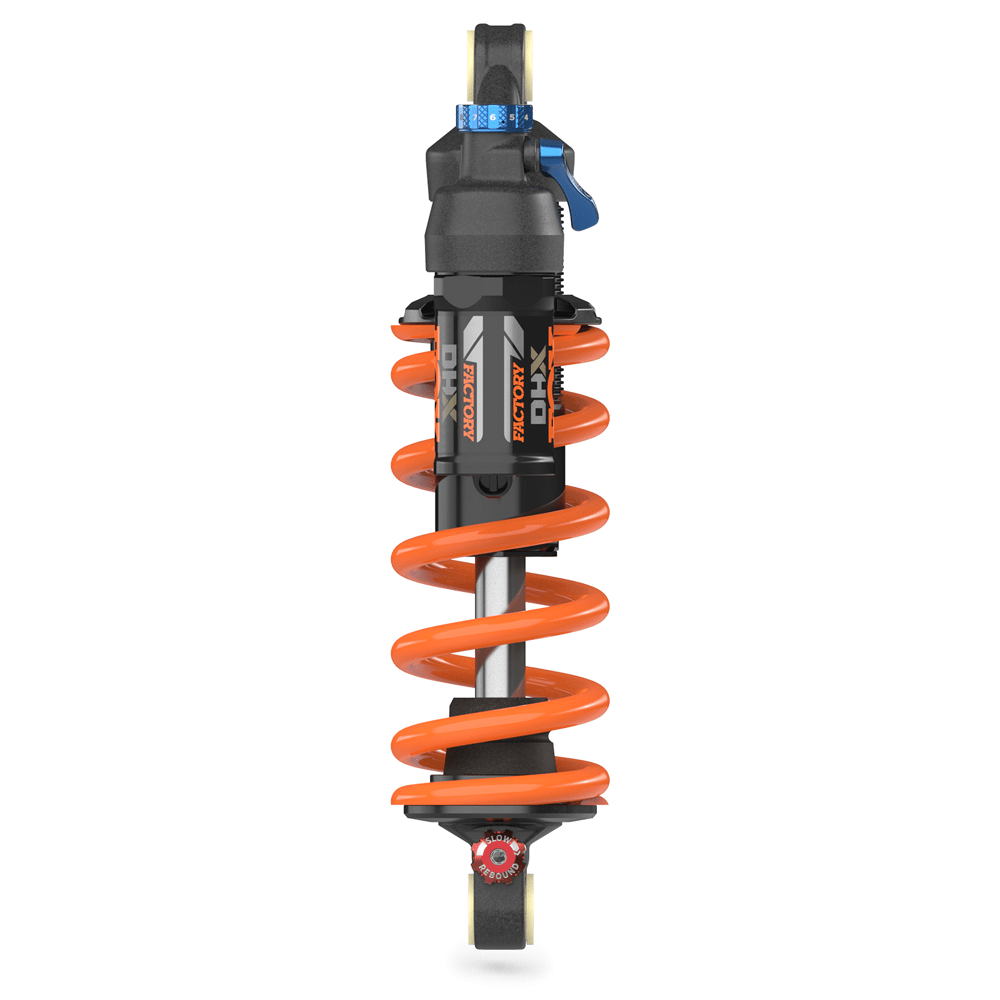

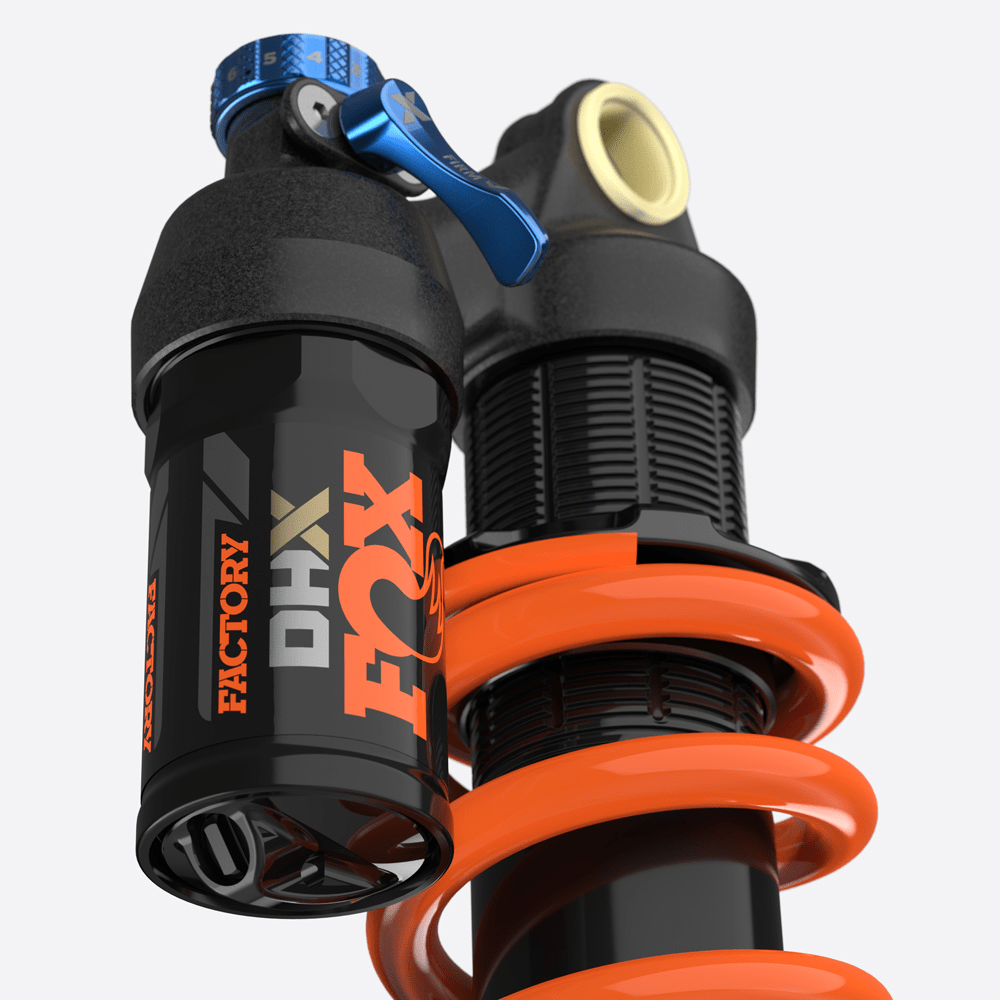

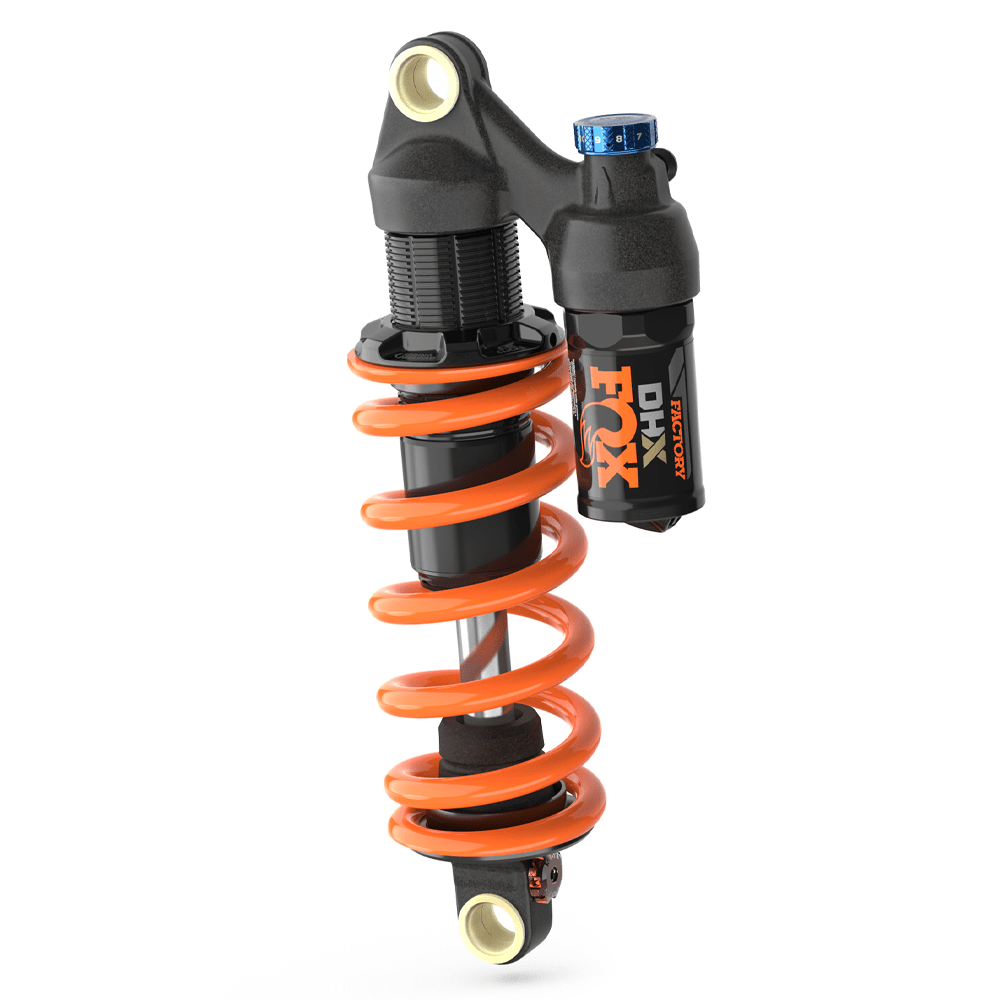

Fox DHX Factory Standard Shock - 2 Position Adjustable - 190 x 45mm

COIL PERFORMANCE FOR THE TRAIL AND BEYOND

Answering the prayers of riders seeking the ultimate in plush suspension, the new DHX brings coil-sprung, magic-carpet, trail smoothing performance in a wide range of configurations to the trails and beyond.

FACTORY

“Factory” says it all – feature-packed and designed to exceed the demands of our Factory-level riders. What we sell is what they race.

ADJUSTMENTS

• Independent 2 Position Open/Firm Lever
• Low Speed Rebound – 16 Clicks
• Low Speed Compression – 11 Clicks
• Coil spring preload - (new detents on spring collar)

ALL FACTORY DHX2 SHOCKS

• Shaft Coating: Chromoly - Ultra-low friction, highly durable damper shaft finish
• VVC Rebound: Yes
• Detents on spring collar: Yes

SPECS & FAMILY FEATURES

• ALL-NEW chassis and damper
• High-flow main piston

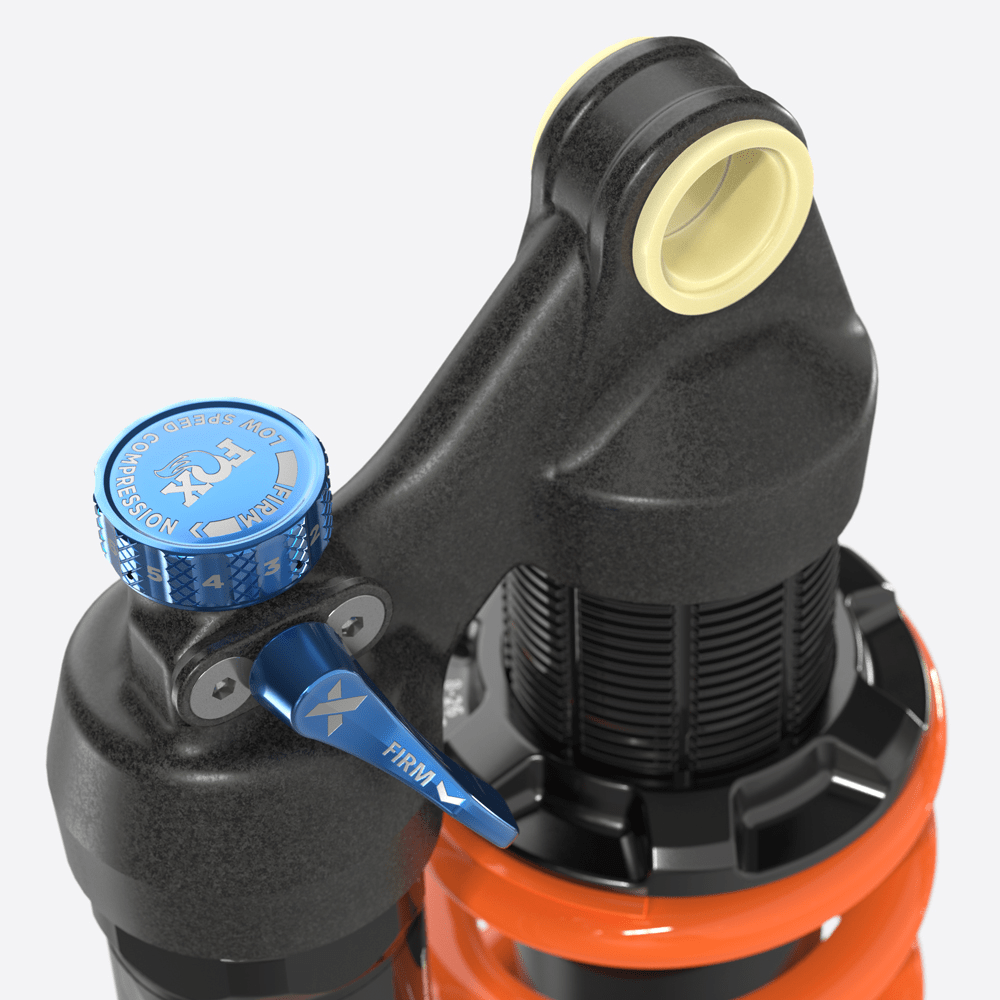

• Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
• Independent firm mode circuit – 2 position adjuster
• Optimized reservoir lengths per shock size
• Hydraulic top out feature
• Reduced damper noise
• MCU bottom out bumper

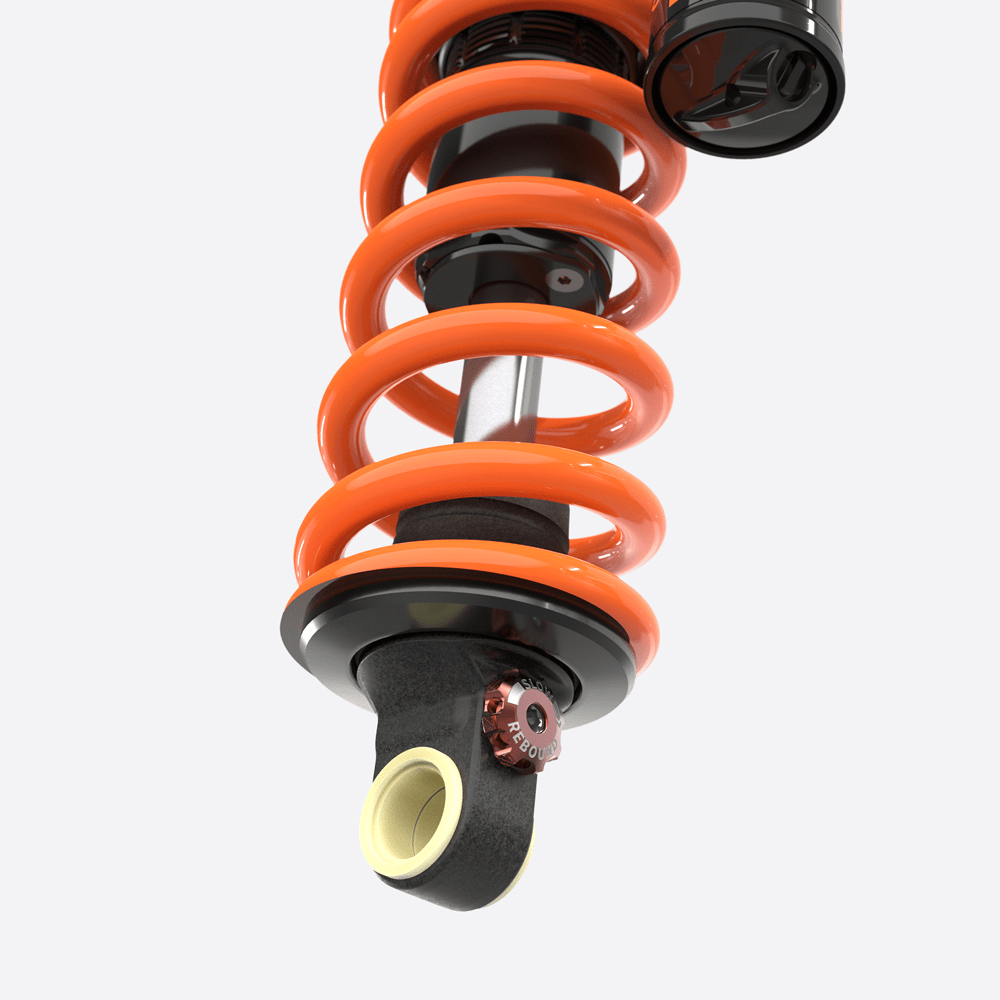

• Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access)
• Spring preload collar with detents and max / min number of clicks and direction arrow
• Full diameter spring retainer with wire ring (like DHX2)
• Spring scuff guard on body (like DHX2)
