Fox 36 Float Factory E-Optimised GRIP2 Tapered Fork 2023 - 29" / 160mm / 44mm - Black

The all-new 36. The new enduro fork standard is anything but standard. With all new design inside-and-out, plus an unmatched combination of ride quality, tunability, stiffness, weight, and alignment - we took the award-winning, EWS favorite and made it even better.

NEW Crown - Lighter by 20 grams, while increasing steerer-tube overlap at the CSU, the new crown design improves durability while our engineering maintains stiffness and drops weight.

Lower Leg Bypass Channels - Increasing air volume within the lower legs reduces the amount of additional unintended pressure ramping. Lower leg bath oil also circulates to the upper reaches of the legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel.

Lower Leg Bleeders - Allows for atmospheric pressure equalization for better fork performance, allowing full travel to be achieved and increasing small bump sensitivity and responsiveness.

Lower Leg Arch - Our new lower leg design pulls out all the stops, shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity-style riding.

GRIP2 - Unparalleled ride quality and ultra-precise adjustability. Allows for external fine-tuning of suspension performance thanks to our patented Variable Valve Control (VVC) technology.

Float EVOL - Optimizes small bump sensitivity by increasing negative air spring volume. Its linear spring curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression.

• SPECIFICATION

  • Damper: GRIP2 w/ dual VVC (Variable Valve Control).
  • Travel: 160mm.
  • Offset: 44mm.

  • Wheel Size: 29".
  • Axle: QR 15mm  x 110mm Boost.
  • Steerer: 1.5 Tapered.
  • Colour: Gloss Black.
  • Upper leg finish: Genuine Kashima Coat.

• Fork weights shown are at 165mm steerer length with star fangled nut and disc brake guide installed.

GRIP2

Our GRIP2 damper is the benchmark for unparalleled ride quality and ultra-precise adjustability. GRIP2 includes our patented Variable Valve Control (VVC) technology which allows for external fine-tuning of suspension performance. GRIP2 achieves with the twist of a knob what typically requires the time consuming and complicated task of completely disassembling and reassembling the fork.

ADJUSTMENTS

• High-speed compression (w/VVC) 8 clicks
• Low-speed compression 16 clicks
• High-speed rebound (w/VVC) 8 clicks
• Low-speed rebound 16 clicks

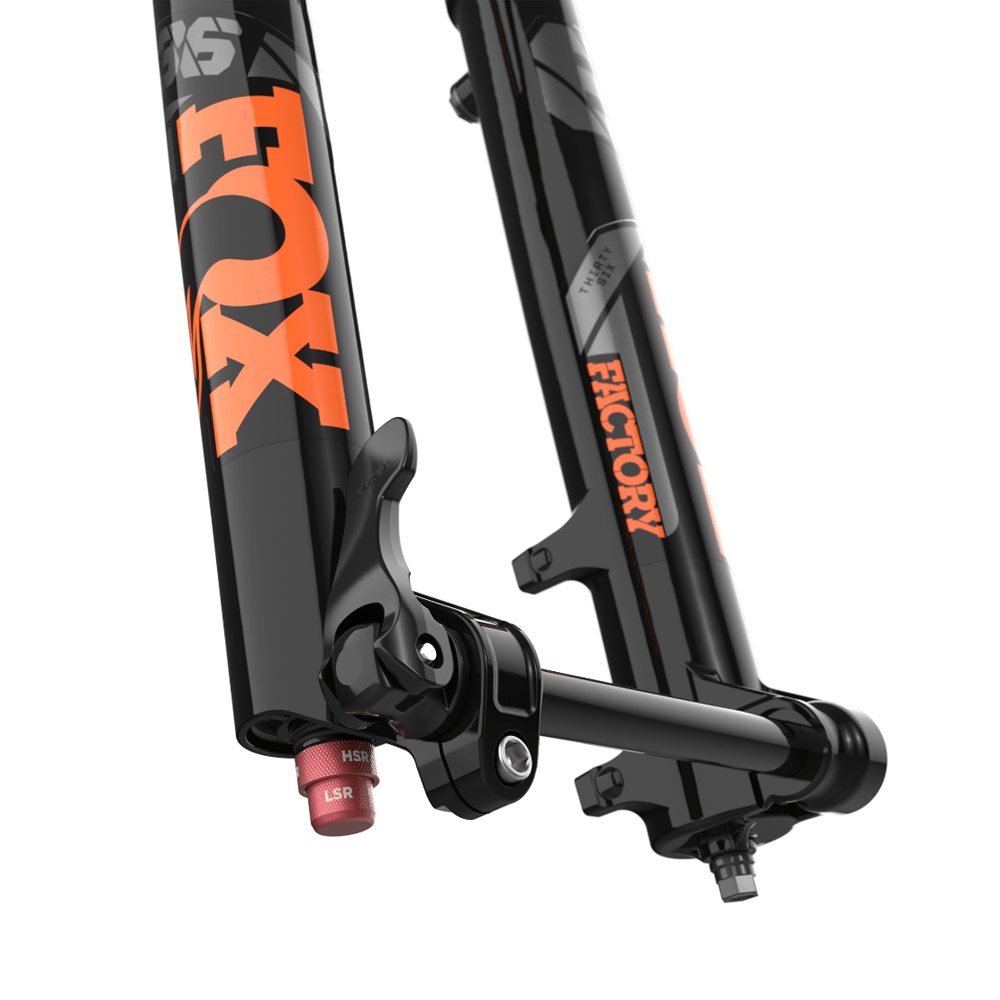

*Image is just a visual representation of the fork - check description and title for spec.
