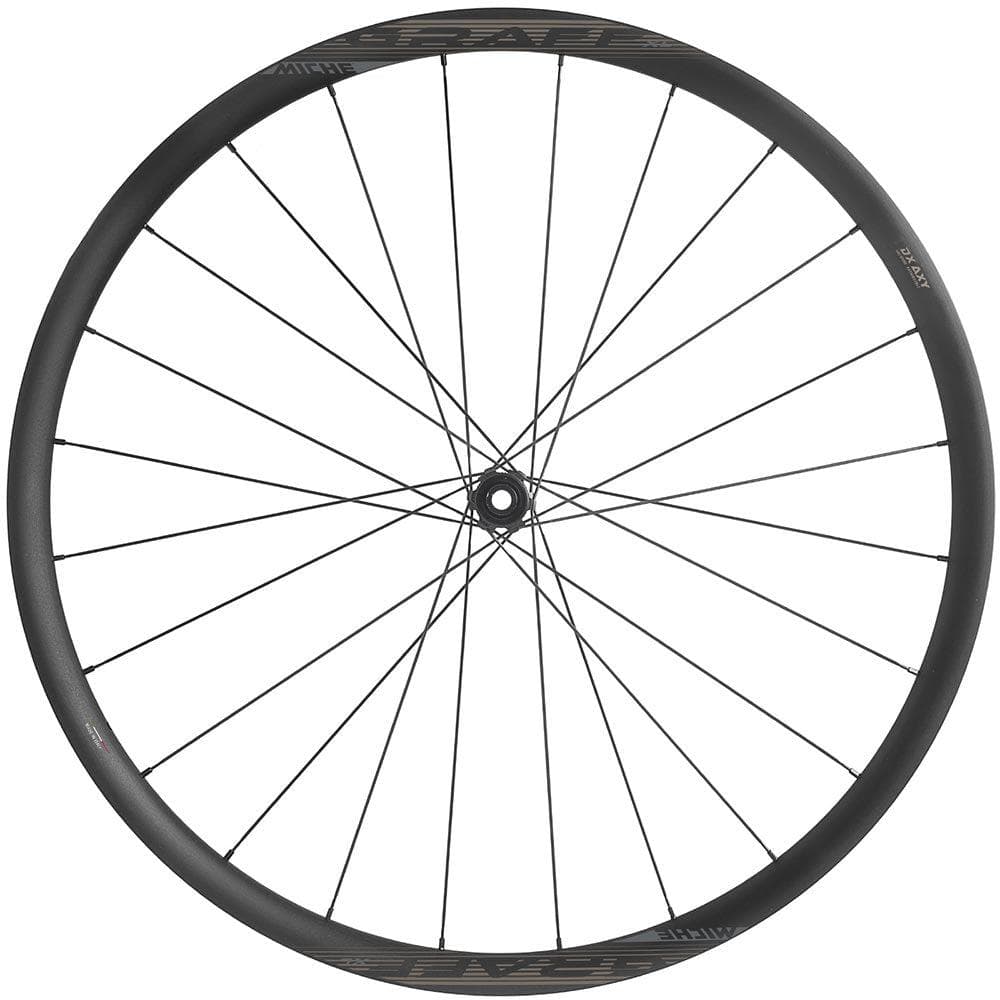

Miche Graff XL Disc Wheels (Pairs)

Please note, these are replacing the Graff SP Wheelsets. Please use these to order instead of the Graff SP Wheels

The Miche Graff wheelset is the perfect all season gravel wheel and a great introductory Cyclocross wheelset.

The asymmetrical 24C width, 700c, tubeless ready rims have been designed for the most optimal load balance. The hub has been created with lighter flanges and a 16+8 spoke pattern for perfect rotation. The wheelset has been designed with modern technology in mind by utilising Shimano's Centre-Lock disc attachment. The hub can be adjusted cleanly and easily, and even while it's still mounted on the bike, by turning a special bolt mounted on the hub.

These wheels are covered by a Crash Replacement Scheme offered by Chicken Cyclekit. Please see our Crash Replacement T&C's for details.

Weight: 1735 (Tubeless ready kit + 20g)

Hubs

• Front And Rear Body: AL 6061 T6
• Axle: AL 7075 T6
• Bearings: Miche Sealed Cartridge
• Adjustment System: Smoothness Adjustment Ring
• Disc system: Shimano Centre-Lock (Lockring not included) / Optional ISO 6 Hole with adaptors
• Freewheel body: AL 7075 T6
• O.L.D: 100mm / 135 - 142mm
• QR Type: TX12/TX12 (QR optional)
• Freehub: CA 9/10/11/12x/N3w 13x, SH 11x or 9/10x with spacers

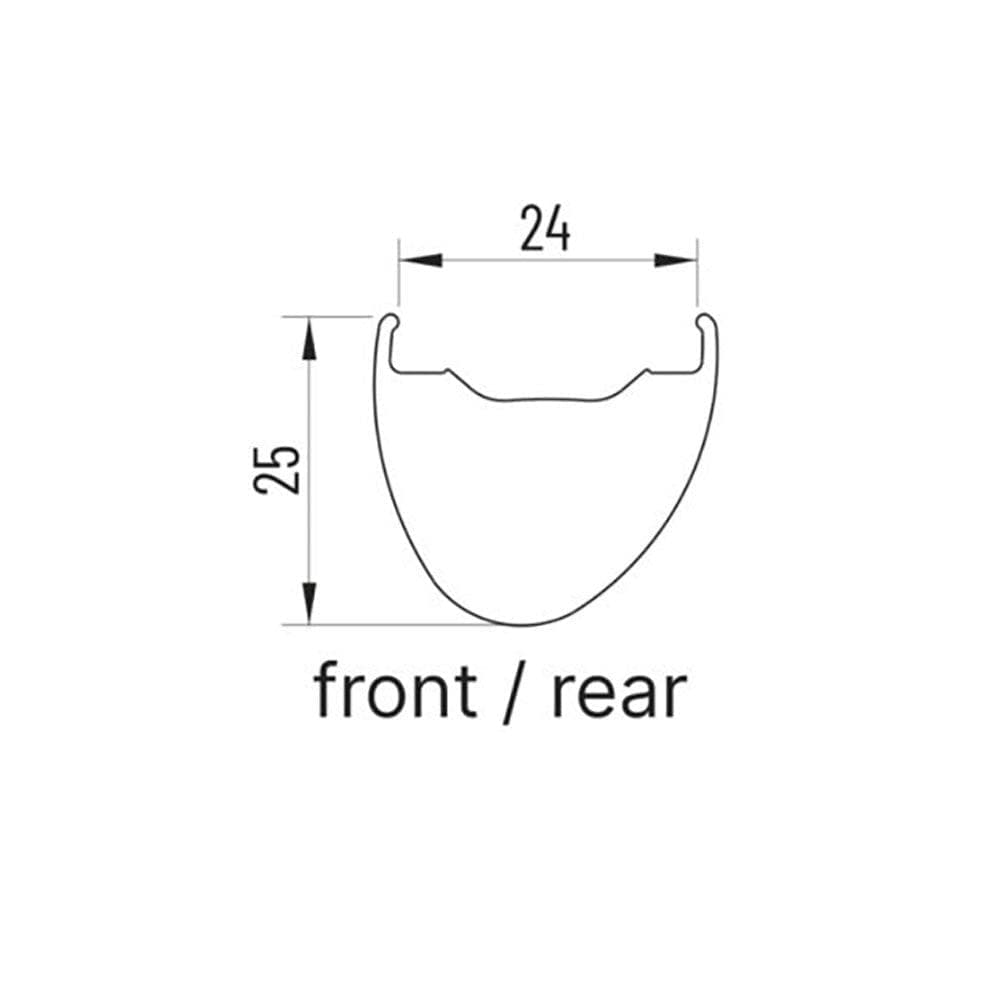

Rims

• Diameter: 700c
• Material: Lightweight Alloy
• Tyre Compatibility: 35mm - 50mm
• Rim height: 22m Asymmetric
• Width: 24mm internal width / 28mm external width

Spokes

• Material: Aisi 302 Stainless Steel (Sapim)
• Shape: J-Bend, Flat, Double Butted
• Nipples: AL 7075 T6 (Sapim)
• Spoke Count: 12+12 front and rear

Supplied with: Rim Tape, Instructions and Maintenance Book
