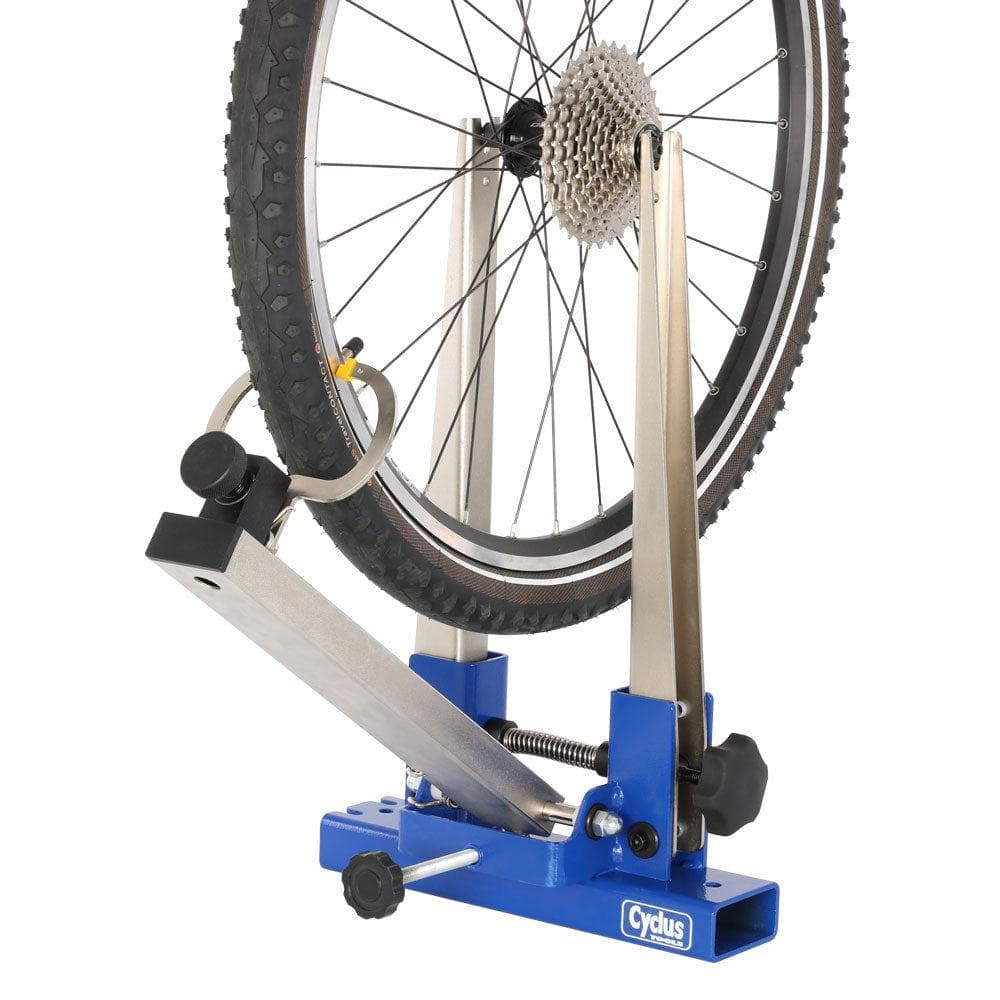

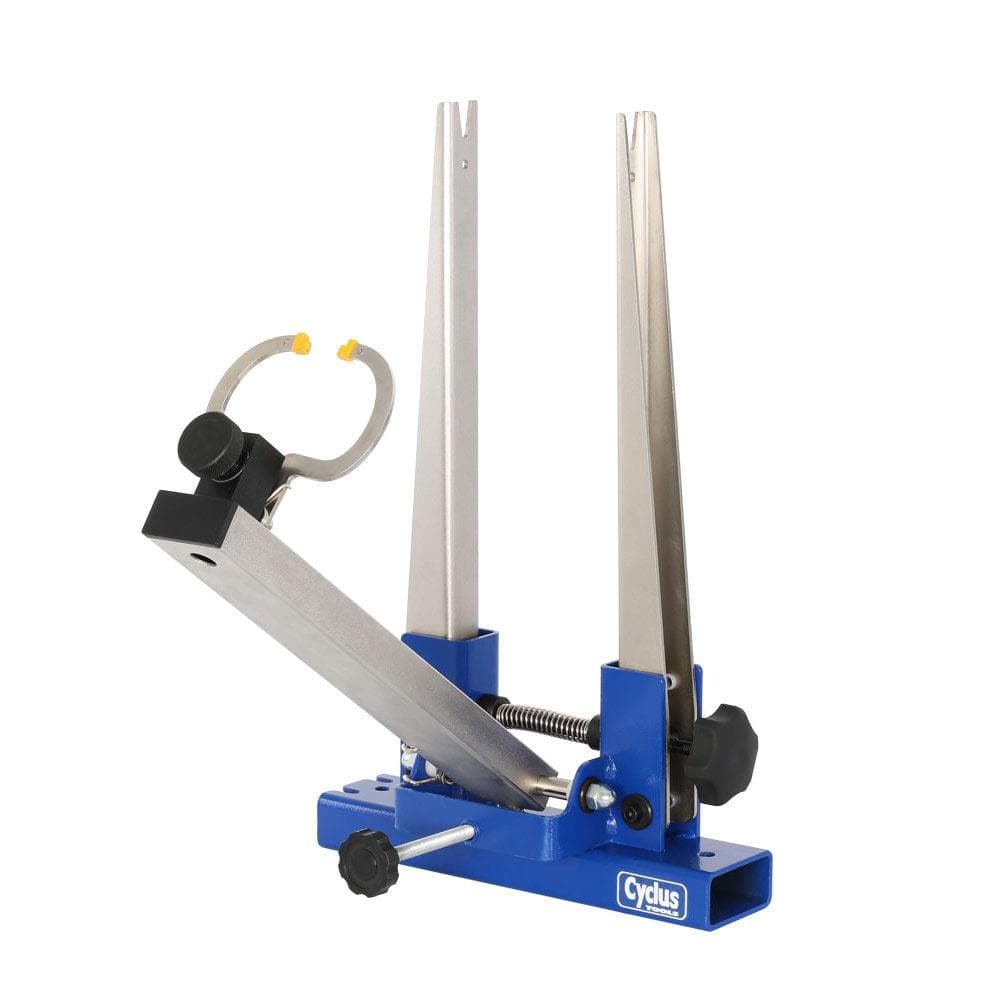

Cyclus Tools Heavy Duty Wheel and Tyre Truing Stand 24 to 29"

CYCLUS TOOLS centering stand in workshop design, for centering wheels 24" to 29" with tyres, including lockable measuring sensor.

The centering stand is made in a workshop design and is designed for permanent installation on a worktop. It enables the testing of vertical and lateral runout. The wheels are clamped with all axle systems using the synchronously moving holding arms, making it particularly user-friendly. Tired wheels up to 29" can also be centered without any problem. The sensor toothing with locking mechanism ensures quick wheel removal.

Features

• Workshop execution
• Testing of vertical and lateral runout
• Synchronously movable holding arms
• Probe clamp with locking mechanism
• Centering of wheels with tires
• Clamping of all axle systems
• Max hub width 260 mm
• Dimensions: approx. 33.5 x 53 x 40 cm

Instructions

• Clamp the wheel into the truing stand. The wheel will automatically be centered.
• For thru axles, use the thru axle adapters.
• Swing the centering arm towards the rim.
• Guide the centering pliers with the plastic feelers exactly onto the rim. Caution! The feelers must not touch the rim. Risk of damaging the rim.
• By turning the wheel you can detect any vertical and lateral runout.

Spare parts

• Sensor assembly with locking mechanism, for centering with tires up to 29x2.6 (Art.No: 720481
• Replacement sensor, plastic, pair (Art.No: 720945)
• Thru-axle adapter up to 24 mm diameter (Art.No: 720948)
