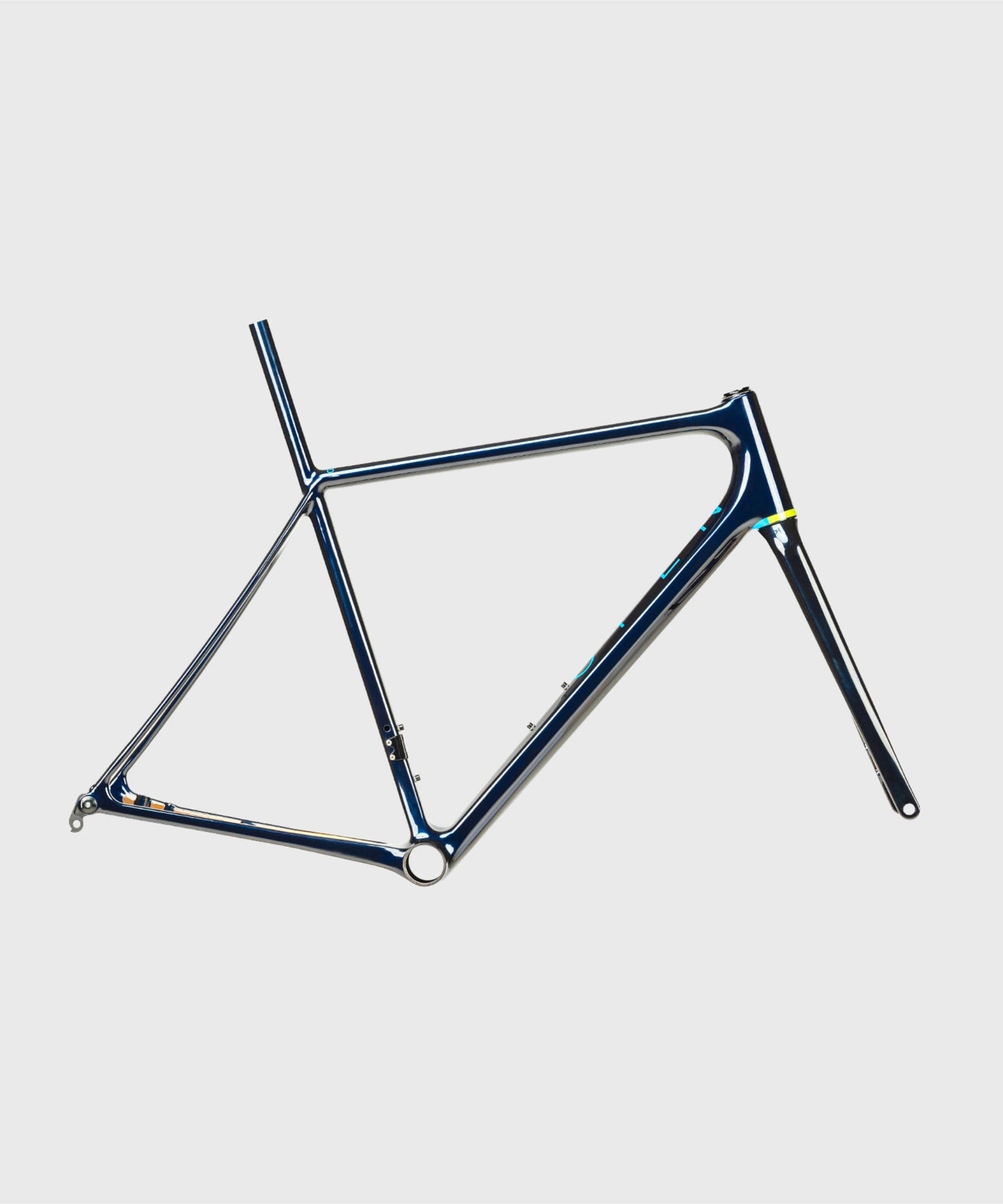

Open Cycle Mind Frame & Fork No Front Derailleur XL

#html-body [data-pb-style=KTTRCQF] #html-body [data-pb-style=Q516RL6] #html-body [data-pb-style=S0TVJU3]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll;padding:50px 20px}#html-body [data-pb-style=Q516RL6]{background-color:#222}{{widget type="Magento\Cms\Block\Widget\Block" template="widget/static_block/default.phtml" block_id="183" type_name="CMS Static Block"}}

The joy of riding starts even before the first pedal stroke as its lightness sleek appearance and midnight blue sheen with subtle color accents put a smile on your face.

On the bike you experience a rare mix of performance and comfort. Every gram has a function. Beyond it is nothing except endless roads unknown.

The MIN.D. (MINimal Design); it exists because it’s the road bike we want to ride.

{{widget type="Magento\Cms\Block\Widget\Block" template="widget/static_block/default.phtml" block_id="412" type_name="CMS Static Block"}}

FRAME SPECIFICATION

WEIGHT	870g
FORK WEIGHT	335g Uncut Steerer
FRAME	S/M/L/XL
RRTP (Raw Ready-to-paint)	A clearcoat is not needed for UV protection but recommended to protect against scratches and wear. Some customers leave the frame bare.
BB standard	BB386EVO pressfit 86.5x46mm BB shell.
Recommended groupsets	Any Shimano Campagnolo 1x	Any SRAM 1x EXCEPT Transmission	Any SRAM eTap	For Shimano 2x mechanical please Contact OPEN	For Shimano Di2 the minimum achievable saddle height (due to the Di2 battery fit inside the seatmast) is listed in the geometry table.
Front thru-axle	100x12mm superlight Carbon-Ti X-12
Front disc rotor size	160mm only
Front brake caliper mount	Smartmount 160 system attaches flatmount caliper without adaptor for 160mm rotors
Rear thru-axle	142x12mm superlight Carbon-Ti X-12
Rear disc rotor size	160mm only
Rear brake caliper mount	Smartmount 160 system attaches flatmount caliper without adaptor for 160mm rotors
Rear disc rotor size	160mm only
MultiStop internal system	Di2 eTap EPS 1x mechanical (all groups)
Headset	Cane Creek Integrated IS42/28.6 OPEN-custom Integrated IS47/38
Seatpost	Integrated mast 25mm BB to saddle
Seattube top clamp	OPEN-custom saddle top clamp with micro-wedge for 25mm seat mast with 15mm adjustment
Rail clamp	Ritchey rail clamp with side plates for round 7x7 and oval 7x9.6mm rails included
Max. weight (total rider+luggage)	120kg / 264 lbs - EN/ISO/internal test standard
Included with frameset	Headset Seattube Top Clamp Headset Rail Clamp Thru-Axles 2 RD Hangers 2 MultiStops (Di2 eTap) Cable Exit Stop Noise-Reduction Foam Sleeves Bottle Cage Bolts Manual

Please note: Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.
