Campagnolo Freehub Bodies and Spares

This page brings together our main Campagnolo freehub bodies and essential hub spares in one place, with clear guidance on cassette type, axle size and wheel compatibility. All parts listed are genuine Campagnolo spares and are supplied ready to fit or to install with your existing axle and bearing hardware where required.

Use the comparison tables below to narrow down your choice, then scroll to the individual product sections for detailed information and suggested wheel models.

Freehub Body Quick Reference

Use this table to match your cassette type and wheel family to the correct freehub body. Always double check against the markings on your existing hub or consult the Campagnolo documentation if you are unsure.

Freehubs by Cassette Type

Which Campagnolo Freehub Body Do I Need?

1. Confirm your cassette brand and speed.
   Campagnolo freehubs are available for Campagnolo 9-13 speed, Shimano HG and Micro Spline 9-12 speed, and SRAM XDR 11-12 speed systems.
2. Check your axle size or hub standard.
   Older wheels use 12 mm steel axles, more recent wheels use 17 mm alloy axles, and the latest disc and gravel wheels use named hub standards such as BU015, BO015, HGA33, N3W, BU020 or XDRA.
3. Identify your wheel model and model year.
   Use the tables above to match Bora, Shamal, Zonda, Scirocco, Khamsin, Hyperon and other wheel families to the most likely freehub body.
4. Compare to your existing freehub body.
   If in doubt, remove your freehub and compare the code etched on the body or hub shell against the part numbers on this page.
5. Need help?
   Contact our customer service team with clear photos of your complete wheel, hub and freehub body and we will help you confirm the correct part. We also stock pawl kits and spacer kits for servicing existing freehubs.

CPS70 (FH-BUU015) Campagnolo Freehub Body - 17 mm Axle

CPS70 uses the FH-BUU015 body and is the most widely used Campagnolo freehub body for wheels built with the 17 mm axle system. It accepts all Campagnolo 9, 10, 11 and 12 speed cassettes and is fitted to many mid to high end factory wheels produced from around 2008 onwards.

Suggested wheels:

• Bora WTO 60 / 45
• Bora Ultra 50 / 35 / TT
• Bora One 50 / 35 (rim and disc brake)
• Shamal Mille, Shamal Ultra C17, Shamal Ultra Disc, Shamal C15
• Zonda C17
• Scirocco
• Khamsin C17 and Khamsin Asymmetric G3

Key features:

• Genuine Campagnolo freehub body
• Campagnolo 9-12 speed cassette fitment
• Designed for 17 mm axle wheels with 30 mm pawls
• Serviceable pawl and bearing system

CPS71 (FH-BU015) Campagnolo Freehub Body - 12 mm Axle

CPS71 uses the FH-BU015 body and is the Campagnolo freehub body used on wheels with the earlier 12 mm axle system. It supports Campagnolo 9, 10, 11 and 12 speed cassettes and is commonly found on pre 2014 mid range wheelsets. Choose CPS71 if you are running a Campagnolo cassette on a narrow 12 mm axle hub.

Suggested wheels:

• Vento (pre 2014)
• Scirocco (pre 2013)
• Khamsin (pre 2014)
• Bullet 50 / 80
• Calima

Key features:

• Campagnolo cassette spline
• For 12 mm axle hubs with 30 mm pawls
• Genuine Campagnolo replacement

FH-BUU015X1 Shimano Freehub Body - 17 mm Axle

FH-BUU015X1 is a Shimano HG compatible freehub body for Campagnolo wheels that use the 17 mm axle and 30 mm pawl system. It allows Shimano 10 and 11 speed cassettes to be used on Campagnolo wheels originally supplied in a Shimano version.

Suggested wheels:

• Bora Ultra TT
• Shamal (various mid to high end models)
• Zonda (2007 onwards, Shimano versions)
• Scirocco (Shimano version)
• Khamsin Asymmetric G3 (Shimano version)

Key features:

• Shimano HG spline for 10 and 11 speed road cassettes
• Fits Campagnolo 17 mm axle hubs with 30 mm pawls
• Genuine Campagnolo replacement part

FH-BO015X1 Shimano Freehub Body - BO015 17 mm Axle

FH-BO015X1 is a lightweight white alloy Shimano HG freehub body designed for modern Campagnolo wheels that use the BO015 hub standard and 17 mm axles. It is widely used across the Bora, Shamal and Zonda ranges in both rim and disc brake versions.

Suggested wheels:

• Bora WTO 60 and 45
• Bora Ultra 50 and 35
• Bora One 50 and 35, rim and disc brake
• Shamal Mille
• Shamal Ultra C17 and Shamal Ultra Disc
• Zonda C17 and Zonda Disc
• Scirocco Disc

Key features:

• Shimano HG cassette compatibility
• White alloy body for reduced weight
• Fits BO015 17 mm axle hubs

FH-BU015X1 Shimano Freehub Body - BU015 12 mm Axle

FH-BU015X1 is the Shimano HG compatible freehub body for older 12 mm axle Campagnolo wheels. Use this body where the wheel was supplied for Shimano cassettes rather than Campagnolo cassettes and the hub uses the BU015 pattern.

Suggested wheels:

• Vento (pre 2014, Shimano version)
• Scirocco (pre 2013, Shimano version)
• Khamsin (pre 2014, Shimano version)
• Bullet 50 / 80
• Calima (Shimano version)

Key features:

• Shimano HG spline
• For BU015 12 mm axle hubs with 30 mm pawls
• Genuine Campagnolo spare

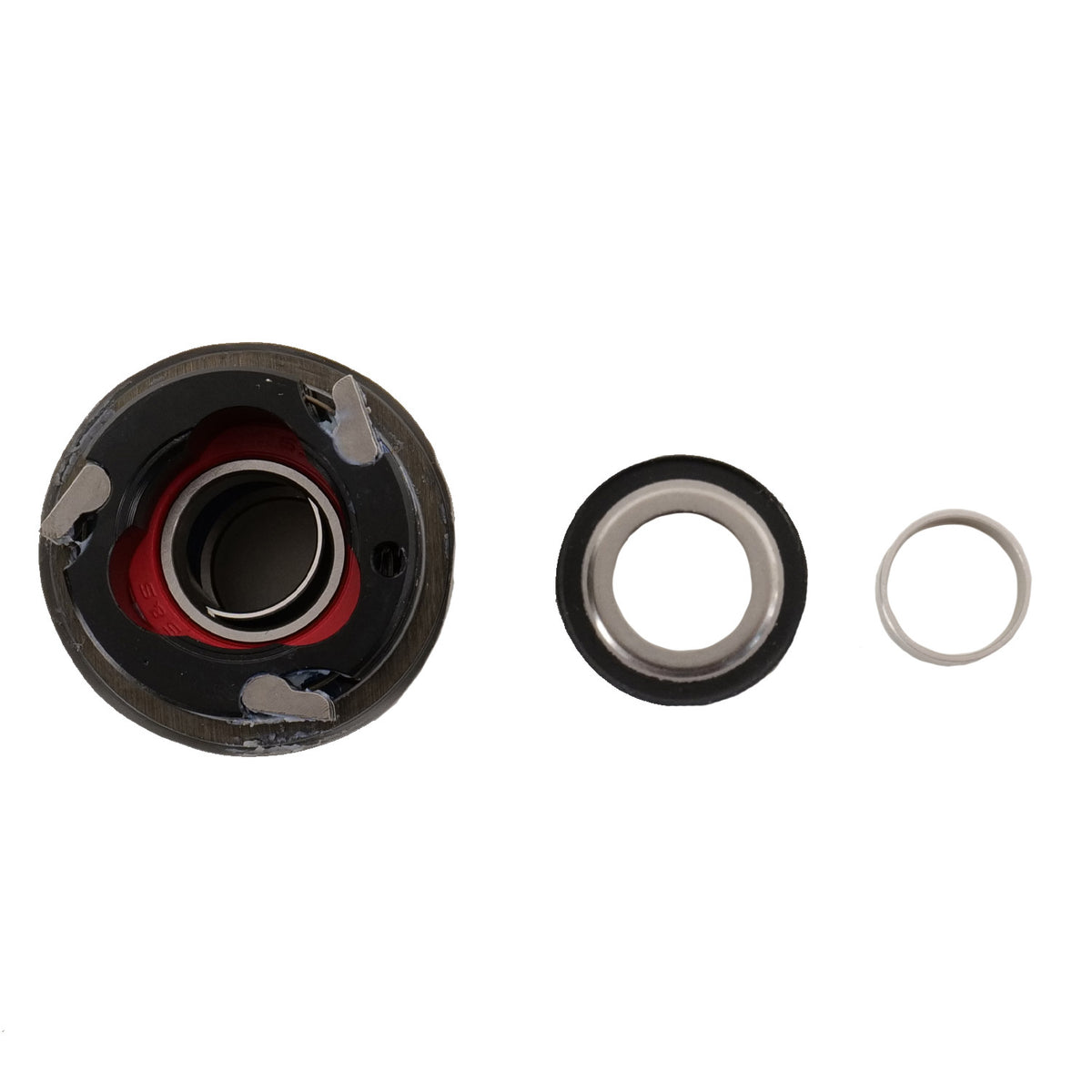

FH-HGA33 HG Freehub Body - HGA33 15 mm Axle

FH-HGA33 is a Shimano HG compatible freehub body for Campagnolo hubs that use the HGA33 interface with a 15 mm axle and 33 mm pawl diameter. It allows Shimano 9, 10, 11 and 12 speed cassettes to be used on selected modern Campagnolo disc brake wheels.

Suggested wheels:

• Shamal Carbon DB
• Bora Ultra WTO DB (from 2021)
• Bora WTO DB TC19 / TC23
• Bora Ultra WTO TT
• Levante
• Hyperon Ultra and Hyperon
• Zonda GT

Key features:

• Shimano HG spline for 9-12 speed
• HGA33 hub compatibility (15 mm axle, 33 mm pawls)
• Aluminium freehub body

FH-HGA33USB HG Freehub Body - USB Bearings

FH-HGA33USB is a premium version of the HGA33 freehub body fitted with Campagnolo USB ceramic bearings. It is ideal as an upgrade or replacement on wheels supplied with USB hubs where lower friction and improved durability are required.

Suggested wheels:

• Shamal Carbon DB USB
• Bora Ultra WTO DB USB
• Bora WTO DB USB variants
• Levante USB
• Hyperon Ultra USB and Hyperon USB
• Zonda GT USB

Key features:

• USB ceramic bearings for reduced friction
• Shimano HG fitment
• HGA33 hub interface with 33 mm pawls

FH-MICROSRE Freehub Body - Shimano Micro Spline

FH-MICROSRE is a dedicated Shimano Micro Spline freehub body that allows 9 to 12 speed Shimano Micro Spline cassettes to be used on selected Campagnolo and compatible Fulcrum wheels with a 15 mm axle and 33 mm pawl freehub system.

Suggested wheels:

• Shamal Carbon (Micro Spline versions)
• Bora Ultra WTO and Bora WTO DB (Micro Spline versions)
• Bora Ultra WTO TT
• Levante
• Hyperon Ultra and Hyperon
• Zonda GT

Key features:

• Shimano Micro Spline cassette compatibility (9-12 speed)
• 15 mm axle, 33 mm pawl system
• Genuine Campagnolo manufactured freehub body

FH-N3WA30 N3W Freehub Body - 30 mm Pawls

FH-N3WA30 is an aluminium N3W freehub body designed for hubs that use a 15 mm axle and 30 mm pawl diameter. It is compatible with Campagnolo 13 speed N3W cassettes and can be used with earlier 9, 10, 11 and 12 speed Campagnolo cassettes when combined with the AC21-N3W spacer and lockring kit.

Suggested wheels:

• Retrofit for Scirocco DB and Zonda DB (with N3W retrofit kit)
• Shamal Ultra DB
• Bora One rim brake family
• Bora WTO DB family (retrofit applications)

Key features:

• N3W interface for 13 speed Campagnolo cassettes
• 30 mm pawl diameter
• Downward compatible with 9-12 speed using AC21-N3W kit

FH-N3WA33 N3W Freehub Body - 33 mm Pawls

FH-N3WA33 is the standard 33 mm pawl N3W freehub body used for Campagnolo 13 speed drivetrains on many modern high performance road and gravel wheelsets. It can also run 9, 10, 11 and 12 speed Campagnolo cassettes when the AC21-N3W spacer and lockring kit is fitted.

Suggested wheels:

• Campagnolo Levante
• Campagnolo Shamal Carbon DB
• Bora Ultra WTO and Bora WTO DB (N3W variants)
• Bora Ultra WTO TT
• Hyperon Ultra and Hyperon
• Zonda GT

Key features:

• N3W interface with 33 mm pawl diameter
• Compatible with 13 speed and earlier Campagnolo cassettes (with AC21-N3W kit)
• Genuine Campagnolo freehub body

FH-N3WA33USB N3W Freehub Body - USB Bearings

FH-N3WA33USB is the premium N3W freehub body fitted with Campagnolo USB ceramic bearings. It is aimed at riders looking for the lowest possible rolling resistance on N3W equipped wheels and is supplied on a number of high end gravel and road wheelsets.

As with FH-N3WA33, it can be used with earlier Campagnolo cassettes when combined with the AC21-N3W spacer and lockring kit.

Suggested wheels:

• Shamal Carbon USB
• Bora Ultra WTO USB and Bora WTO DB USB variants
• Levante USB versions
• Hyperon Ultra USB and Hyperon USB

Key features:

• USB ceramic bearings for reduced friction
• N3W interface with 33 mm pawls
• 13 speed Campagnolo cassette compatibility plus backward compatibility with adapter kit

FH-XDRA33 / FH-XDRA33USB XDR Freehub Body - XDRA Hub

FH-XDRA33 and FH-XDRA33USB are freehub bodies for SRAM XDR cassettes on Campagnolo wheels that use the XDRA hub interface with a 15 mm axle and 33 mm pawl diameter. The standard version uses high quality steel bearings, while the USB version adds Campagnolo USB ceramic bearings for even smoother rolling.

Suggested wheels:

• Shamal Carbon DB XDR
• Bora Ultra WTO DB XDR versions
• Other high end Campagnolo disc brake wheels supplied with XDR option

Key features:

• SRAM XDR cassette compatibility (11 and 12 speed)
• XDRA hub interface with 33 mm pawls
• USB version with ceramic bearings available

FH-BU020XDR XDR Freehub Body - BU020 Hub System

FH-BU020XDR is a dedicated XDR freehub body designed for wheels that use the BU020 axle and hub system with a 17 mm axle and 30 mm pawl diameter. It is intended for SRAM XDR 11 and 12 speed road cassettes on a broad range of Campagnolo rim and disc brake wheels.

Suggested wheels:

• Bora H35 / H50 DB
• Bora One 35 / 50
• Bora Ultra 35 / 50
• Bora WTO and Bora WTO DB
• Eurus and Hyperon Ultra
• Khamsin Asymmetric and Scirocco H35
• Shamal Ultra and Shamal Ultra DB
• Vento Asymmetric
• Zonda and Zonda DB

Key features:

• SRAM XDR fitment (11 and 12 speed)
• BU020 hub compatibility with 17 mm axle
• Supplied with spacers to suit multiple wheel families

Hub Spares and Small Parts

In addition to complete freehub bodies, we stock genuine Campagnolo spacer, spring and pawl kits to service or update existing hubs. These parts are listed here for clarity but are not complete freehub bodies.

FH-BUU001 Freehub Spacer Kit - HG11 Spacer (Pack of 5)

FH-BUU001 is a pack of five 1.8 mm spacers designed for Campagnolo HG11 freehub bodies. These spacers allow 8, 9 or 10 speed Shimano and SRAM HG cassettes to be used on Campagnolo 11 speed HG freehub bodies by taking up the additional width of the body.

Typical use:

• Fitting an 8, 9 or 10 speed Shimano or SRAM cassette to an HG11 freehub
• Fine tuning cassette spacing on compatible HG freehubs

Key details:

• Pack of 5 steel spacers
• Approx. 1.8 mm thickness each
• For Campagnolo HG11 freehub bodies

CPS73 (FH-RE114) Wrap Round Freehub Springs - Pack of 5

CPS73 is most commonly used as the part number for genuine Campagnolo FH-RE114 wrap round freehub springs. These springs sit around the freehub pawls and provide the return force that makes the pawls engage and disengage correctly. They are spare parts for a wide range of Campagnolo and Fulcrum road wheels that use a wrap round spring rather than individual coil springs.

Typical use:

• Servicing classic Campagnolo and Fulcrum freehubs that use wrap round pawl springs
• Replacing tired or deformed springs to restore crisp freehub engagement
• Preventing skipping under load on older wheels

What is included:

• Five genuine Campagnolo FH-RE114 wrap round freehub springs

Notes:

• Compatible with various Campagnolo and Fulcrum road hubs that use wrap round freehub springs
• Not a complete freehub body, but a service part for existing hubs

FH-BO014 Freehub Pawl and Spring Kit - 30 mm Pawls

FH-BO014 is a genuine Campagnolo freehub pawl and spring kit designed for freehub bodies that use 30 mm pawls on 12 mm or 17 mm axle hubs. Replacing worn pawls and springs restores positive engagement and smooth freehub operation on compatible Campagnolo and Fulcrum wheels.

Typical use:

• Service or rebuild of 30 mm pawl Campagnolo freehub bodies
• Replacing worn or damaged pawls and the return spring

What is included:

• Three replacement freehub pawls
• One freehub pawl spring

Notes:

• For use with Campagnolo freehubs using 30 mm pawl diameter
• Suitable for many Campagnolo and Fulcrum wheels from around 2000 onwards

FH-BO014X Freehub Pawl and Spring Kit - Shimano HG Bodies

FH-BO014X is a pawl and spring kit intended for Shimano splined (HG) freehub bodies that use Campagnolo style internals. It is commonly used on Campagnolo and Fulcrum wheels supplied with Shimano HG freehubs from the early 2000s onwards.

Typical use:

• Servicing Shimano HG compatible Campagnolo or Fulcrum freehub bodies
• Restoring crisp engagement on older wheels

What is included:

• Three freehub pawls
• One pawl spring

Notes:

• Designed specifically for Shimano splined freehubs
• Fits many Campagnolo and Fulcrum hub shells using HG bodies

FH-BO016 N3W Freehub Pawl and Spring Kit - 33 mm Pawls

FH-BO016 is a Campagnolo N3W freehub spring and pawl kit designed for freehub bodies with a 33 mm pawl diameter, such as FH-N3WA33 and related N3W bodies. It is used to service the engagement mechanism on modern N3W based road and gravel wheels.

Typical use:

• Servicing N3W freehubs with 33 mm pawls
• Replacing worn pawls and spring to restore crisp engagement

What is included:

• Three N3W freehub pawls
• One N3W pawl spring

Notes:

• Designed for use with N3W 33 mm pawl freehub bodies such as FH-N3WA33 and FH-N3WA33USB
• Genuine Campagnolo spare part

Campagnolo Freehub FAQ

How do I know which Campagnolo freehub body fits my wheel?

Start by confirming your cassette brand and speed, then check your axle size or hub marking. Most Campagnolo hubs have a code such as BU015, BO015, HGA33, N3W, BU020 or XDRA stamped or printed on the body. You can then match that code to the freehub bodies listed on this page. If you are unsure, remove your existing freehub and contact us with clear photos of the hub and freehub body.

Can I use Shimano cassettes on Campagnolo wheels?

Yes. Campagnolo produce Shimano HG compatible freehub bodies for many of their wheels. Freehub bodies such as FH-BU015X1, FH-BUU015X1, FH-BO015X1, FH-HGA33 and FH-HGA33USB allow Shimano HG road cassettes to be used, provided you choose the version that matches your axle or hub standard.

What is N3W and do I need a special cassette?

N3W is Campagnolo's latest freehub standard for 13 speed Ekar and modern road cassettes. N3W bodies are shorter than traditional Campagnolo freehubs, but with the AC21-N3W spacer and lockring kit they can also accept older 9, 10, 11 and 12 speed Campagnolo cassettes. For standard 13 speed use, fit the correct cassette directly to the N3W body.

What is the difference between standard bearings and USB bearings?

Standard Campagnolo freehubs use high quality steel bearings. USB versions use ceramic hybrid bearings that reduce friction and can roll more smoothly for longer, especially in wet conditions. For everyday riding a standard bearing body is more than adequate, while USB bearings are ideal for riders who want maximum performance.

Do I need extra parts when changing to an N3W freehub?

If you want to use 9, 10, 11 or 12 speed Campagnolo cassettes on an N3W freehub body you will need the AC21-N3W spacer and lockring kit. For 13 speed Campagnolo Ekar cassettes you fit the cassette directly to the N3W freehub body without spacers.
