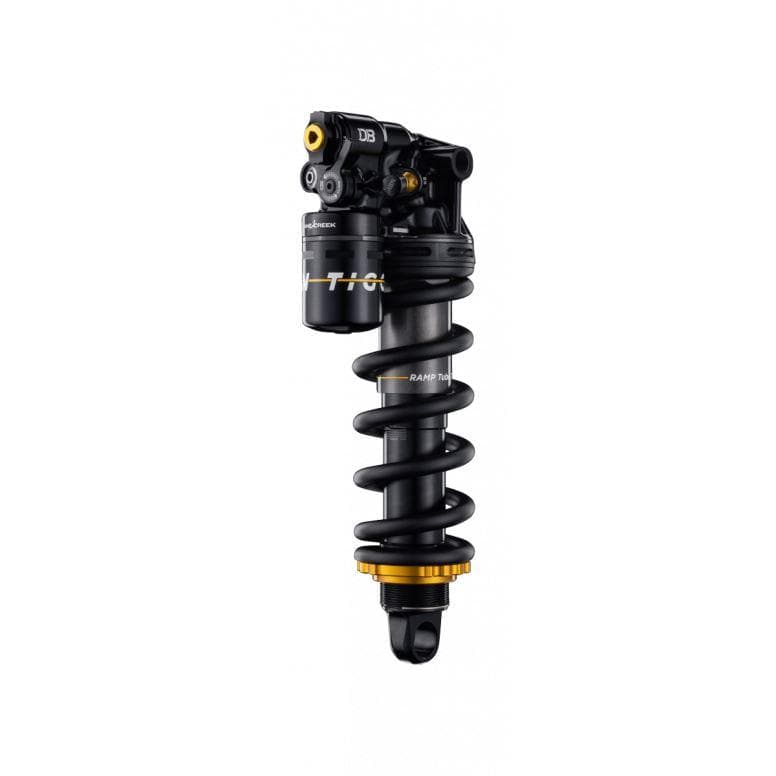

Cane Creek Tigon Coil Trunnion - Black/Gold - 205x62.5mm Trunnion

The Air-Charged Coil Shock

Tigon is an entirely new DB Twin Tube shock that combines the sensitivity of a coil shock with the tunable support of an air spring.

Patent-pending RAMP Tube Technology enables your most playful riding yet – in an entirely new layout that better withstands side-loading and buckling forces that can harm traditional coil shocks.

RAMP Tube is a secondary air spring that works in conjunction with Tigon’s main coil spring to control the shock’s progression. With this added feature, a rider will still rely on the main coil to support their body weight while setting sag - but can easily add up to 35% progression relative to a traditional coil shock using a basic shock pump.

Tigon expands the usable market for coil by providing a more resilient solution for clevis and trunnion mount frames, with highly tunable bottom out support.

Specifications

• WEIGHT: +/- 438g *210 - without spring, varies by size
• DAMPING: DB Twin Tube Technology
• ADJUSTMENTS: RAMP Tube, Independent high & low-speed compression, low-speed rebound,
• 2 position Climb Switch
• SHAFT DIAMETER: 12.7mm (1/2”)
• MANUFACTURING: Designed, Tested, and Hand Assembled in Fletcher, NC
