Cyclus Tools Spare Crown Race Cutter Head

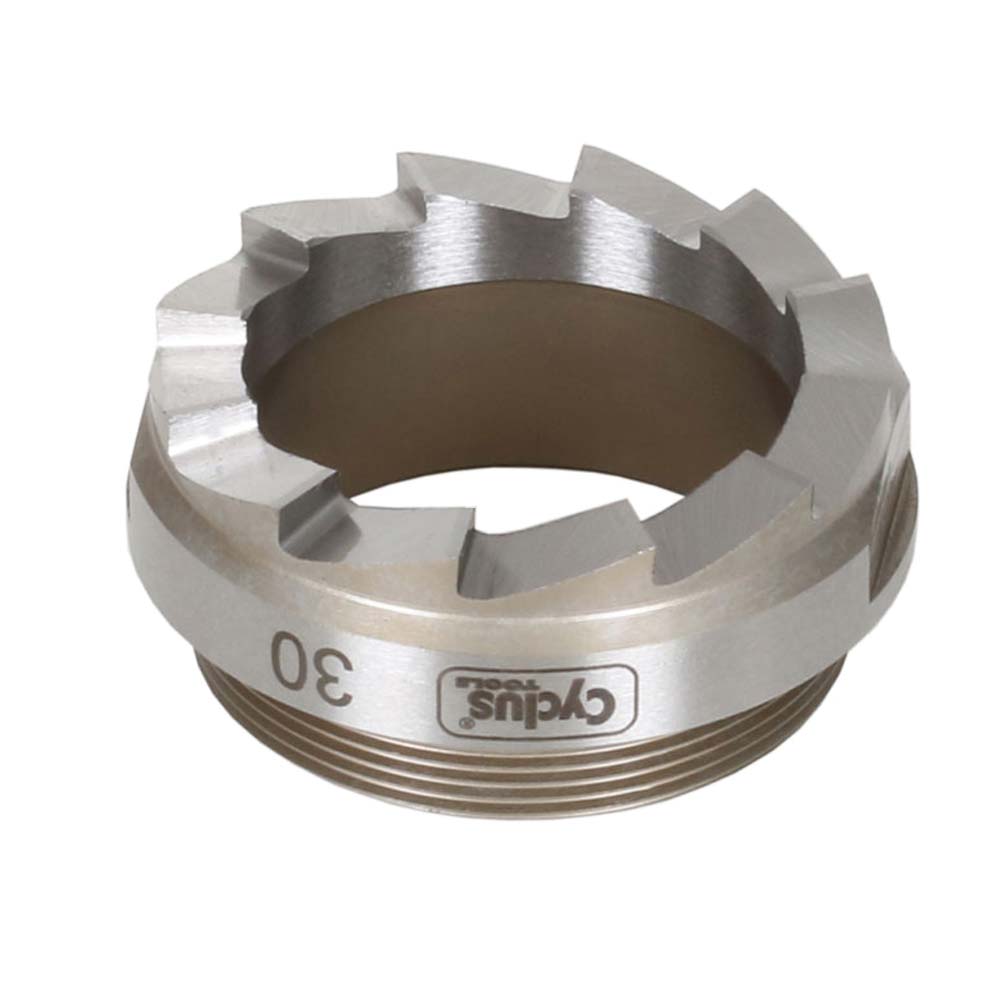

Crown Race Cutter 1 1/8" (30mm)

• Art Nr: 720004
• EAN Code: 8590831230032

Crown Race Cutter 1 1/8" (30mm), complete with cutter.

Create precisely levelled fork cone seats with this face milling tool, the milling cutter is suitable for 1 1/8" (30.0mm) fork cone seats.

• Maximum width of the cutter surface: 6mm.
• Maximum milling depth is 6mm.

Note: Spare cutting head available (CYT5705)

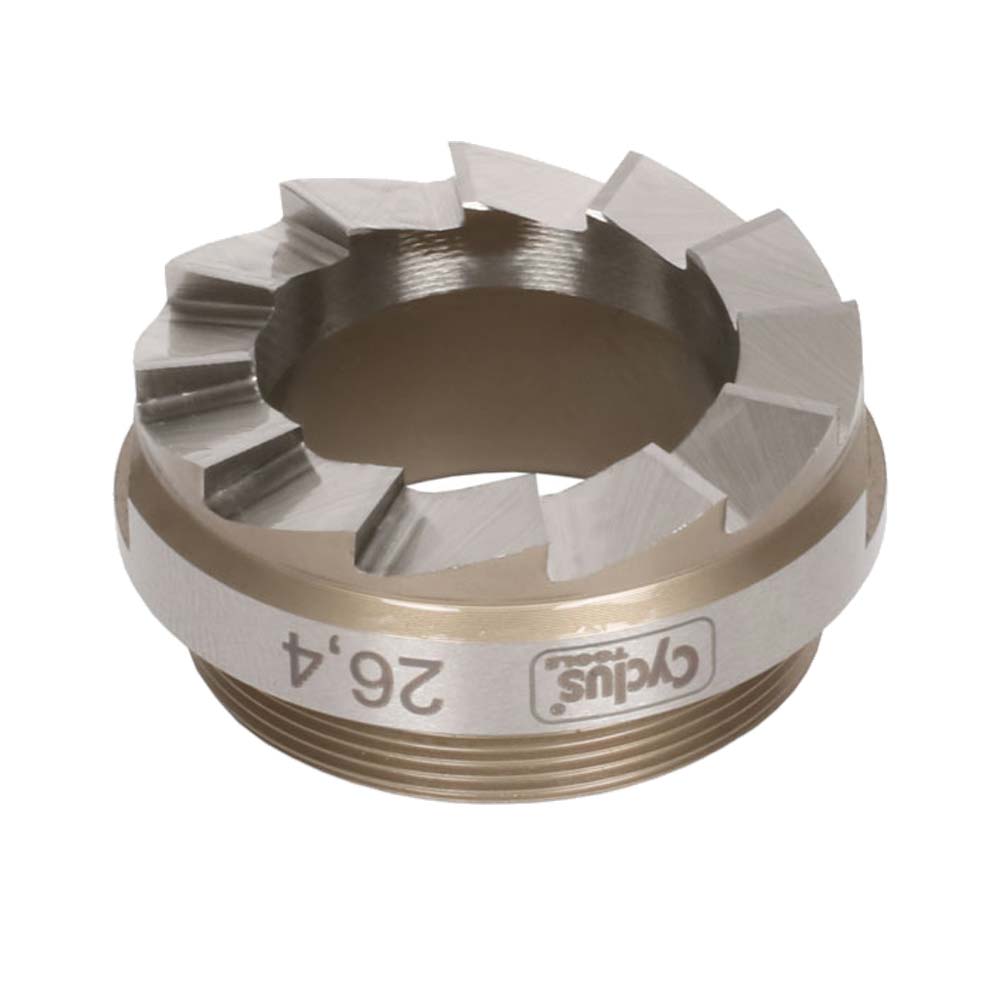

Crown Race Cutter 1" (26.4mm)

• Art Nr: 720003
• EAN Code: 8590831230025

Crown Race Cutter 1" (26,4mm), complete with cutter.

Create precisely levelled fork cone seats with this face milling tool, the milling cutter is suitable for 1" (26.4 mm) fork cone seats.

• Maximum width of the cutter surface: 6mm.
• Maximum milling depth is 6mm.

Note: Spare cutting head available (CYT5705A)

The tool is used for optimal adjustment of the lower fork cone seat on the fork neck. In order to avoid overstressing, a uniform pressure must be applied to the cutter by means of the threaded sleeve and spring. The tool must always be turned in the cutting direction (clockwise) only! Use a cutting oil, suitable for the material to be machined.

Note: Before milling, remove any chromium layers that may be present in order to avoid excessive wear of the cutting edges or "seizing" of the tool in the control tube.
