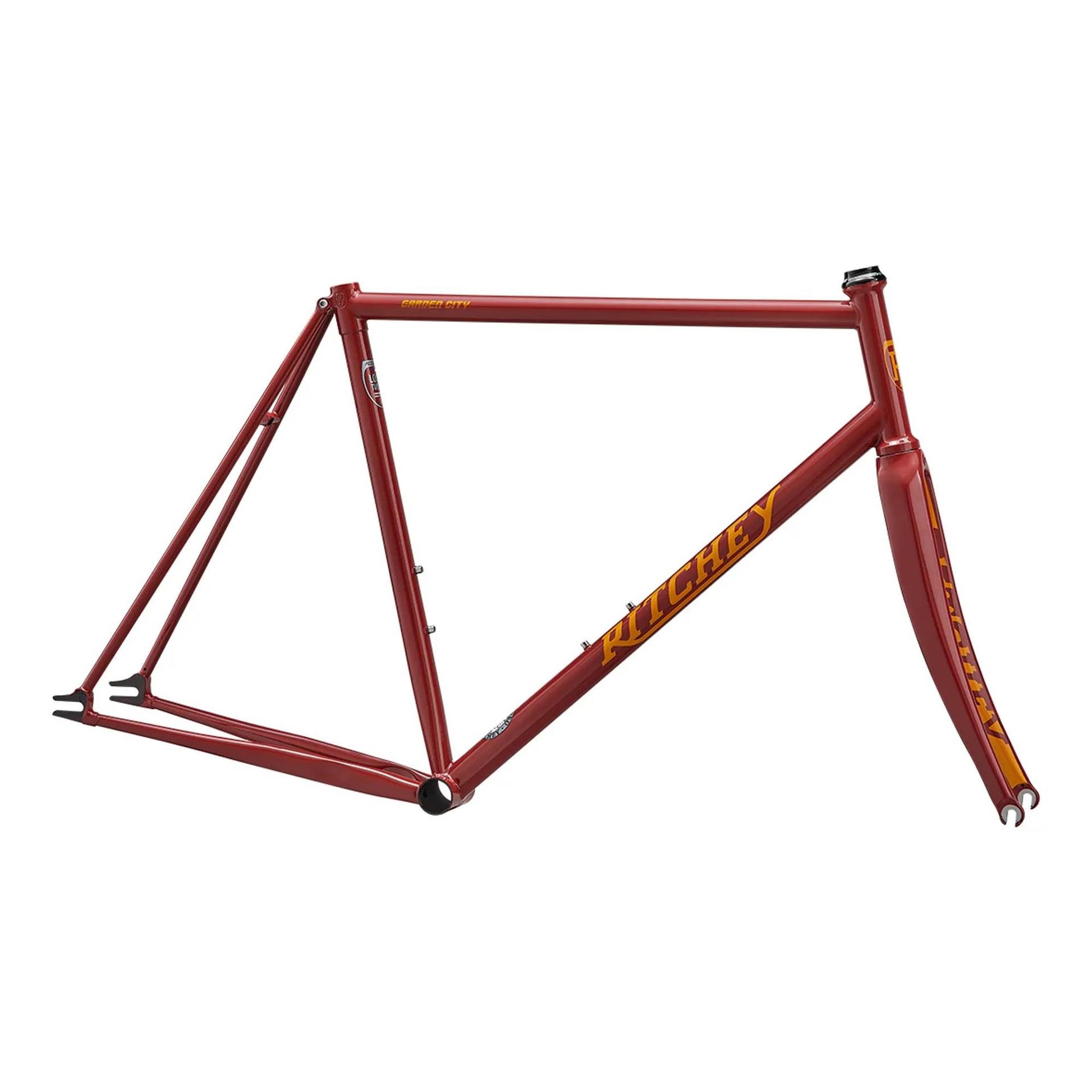

Ritchey Garden City Frameset: SCARLET X-LARGE

Garden City distils the appeal of cycling down to its purest form, pairing the direct ride feel of a single speed with the versatility of a modern steel frameset. Equally at home on the velodrome, city streets, or winter training rides, it delivers a lively yet composed ride with the timeless character of triple butted Ritchey Logic steel. Built with clearance for up to 700 x 28c tyres and drilled for bottles and brakes, it offers far more than stripped back simplicity, giving riders the freedom to build it their way.

Features
• Heat-treated, triple butted Ritchey Logic steel frame
• TIG welded construction for a responsive, durable ride
• Ritchey Comp Carbon Road Fork included
• Clears up to 700 x 28c tyres
• Drilled for bottle cages and brakes
• Horizontal 120mm bolt-on dropouts
• English threaded bottom bracket shell
• Integrated seat collar
• Corrosion-resistant EPD coating
• WCS headset included

Specifications
Frame Material: Heat-treated, triple butted Ritchey Logic steel tubing
Fork: Ritchey Comp Carbon Road Fork, 1-1/8" straight steerer
Headtube: Ultra-light forged and machined straight 1-1/8"
Bottom Bracket: 68mm English threaded
Maximum Chainring Size: 55t
Chainline: 42mm
Bottle Cage Mounts: 2
Dropout: Horizontal 120mm bolt on
Headset: WCS headset included
Seatpost Diameter: 27.2mm
Steerer Length: 300mm
Axle to Crown: 367mm
Fork Offset: 45mm
Maximum Spacers Below Stem: 30mm
Axle Standard: Quick release
Tyre Clearance: 700 x 28c
Frame Weight: 1,950g
Fork Weight: 562g

Geometry
Top Tube Effective: S 532mm / M 551mm / L 568mm / XL 585mm
Top Tube Actual: S 526mm / M 543mm / L 559mm / XL 577mm
Seat Tube C-T: S 485mm / M 510mm / L 540mm / XL 570mm
Seat Tube Angle: S 74.5° / M 74° / L 74° / XL 74°
Head Tube Length: S 115mm / M 140mm / L 170mm / XL 200mm
Head Tube Angle: S 73° / M 73.5° / L 74° / XL 74°
BB Drop: S 55mm / M 55mm / L 55mm / XL 55mm
Chainstay: S 395mm / M 395mm / L 395mm / XL 395mm
Wheelbase: S 966mm / M 976mm / L 988mm / XL 1005mm
Standover Height: S 764mm / M 788mm / L 818mm / XL 847mm
Stack: S 509mm / M 534mm / L 565mm / XL 594mm
Reach: S 391mm / M 398mm / L 406mm / XL 415mm
Fork Rake: S 45mm / M 45mm / L 45mm / XL 45mm
Axle To Crown: S 367mm / M 367mm / L 367mm / XL 367mm
Post Diameter: S 27.2mm / M 27.2mm / L 27.2mm / XL 27.2mm
