Stans - RIM ARCH S2 29 32H BLACK GR

Arch S2 rims have the versatility to handle a wide range of riding conditions and are the ideal upgrade for Trail, AM, Enduro, and eBikes. When your average ride includes both tough climbs and rough descents and you want the best tubeless system in the business, the Arch S2 is for you.

Stan's Patented Bead Socket Technology means easier tubeless inflation and more confidence on the trail. The 6061 aluminium Arch S2 rims use a reinforced spoke bed and eyeletted spoke holes for strength, along with a reliable sleeved joint that creates one very tough overall wheel. The 28mm width is extremely versatile, offering excellent cornering performance with 2.2-2.5" tyres.

When you need a reliable wheelset that's more than capable on both the climbs and the descents, the Arch S2 is for you. Versatile 28mm internal width optimised for 2.2-2.5 tyres
6061 aluminium with sleeved joint and stainless steel rim eyelets
Patented BST low-profile rim shape for easy tubeless inflation and the most reliable seal

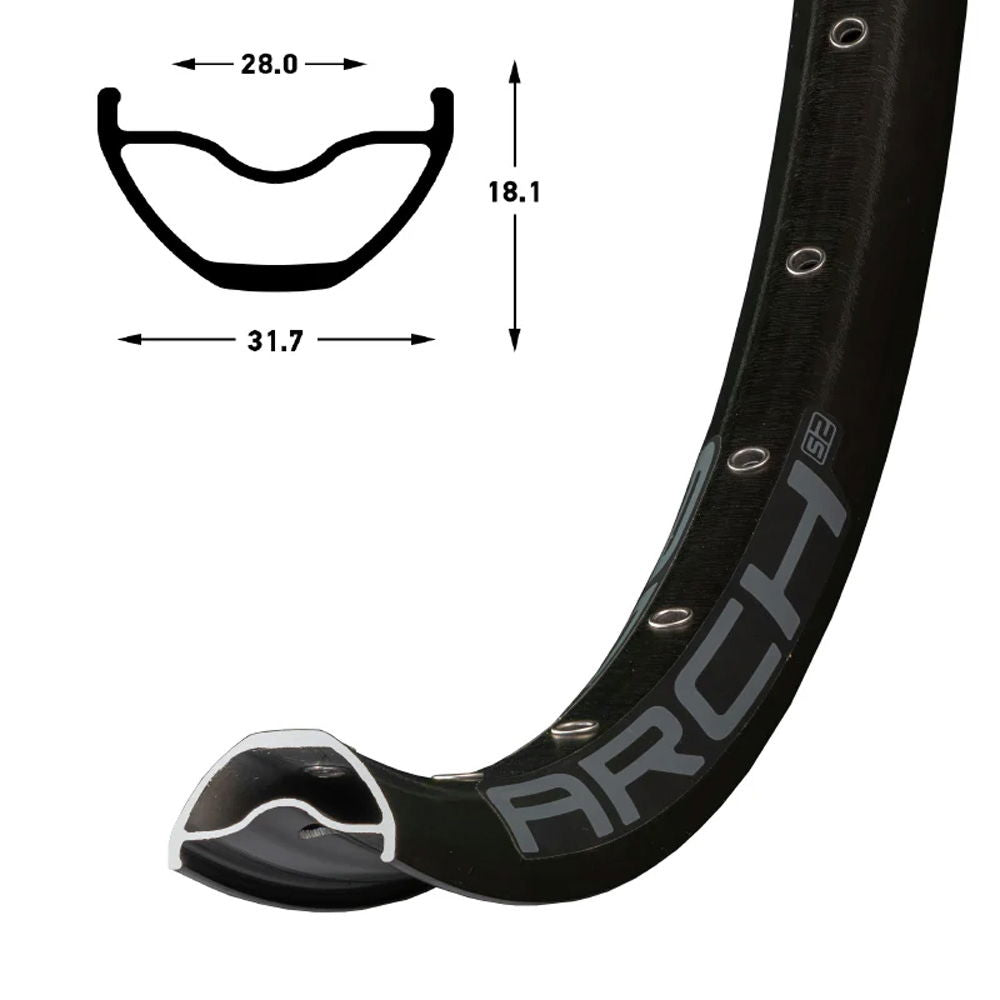

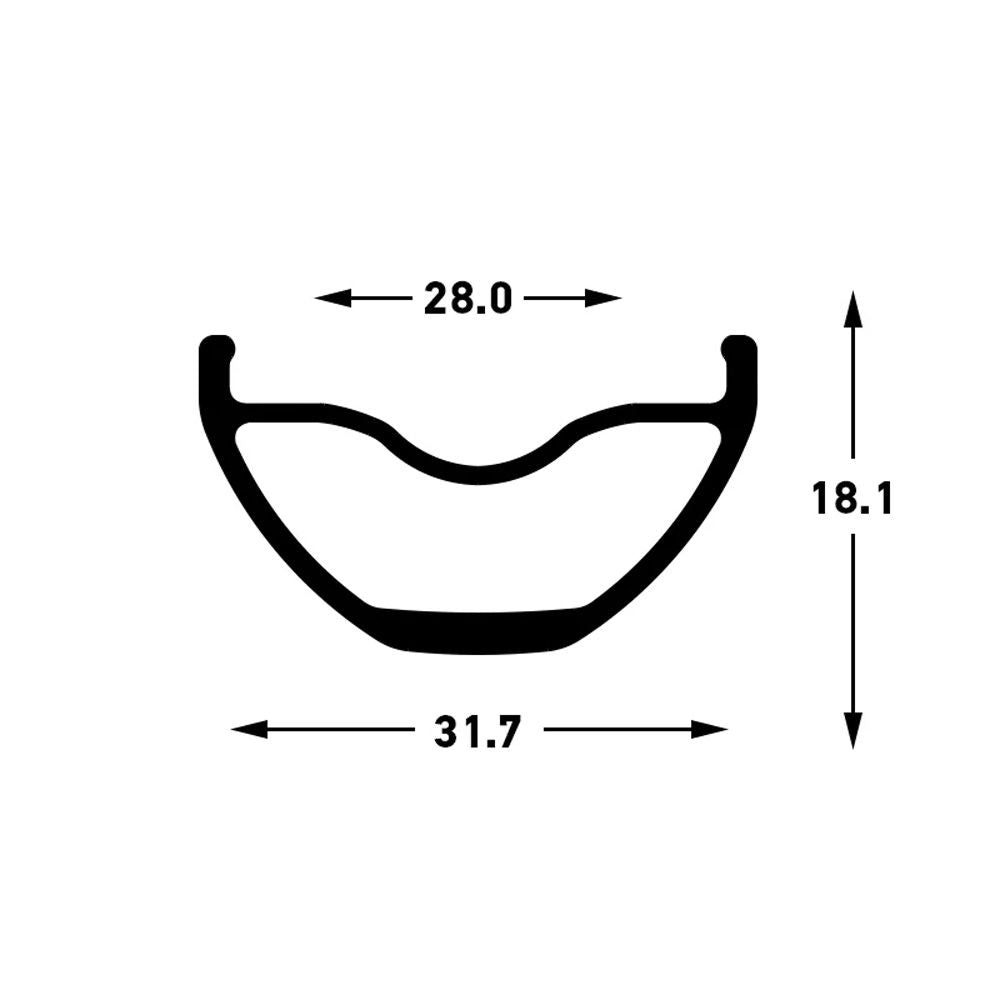

Rim Internal Width: 28.0mm

Rim External Width: 31.7mm

Rim Depth: 18.1mm

Hole Count: 32-hole

Rim Colour: Black

Material: 6061 Aluminium Alloy

Brakes: Disc only

ERD: 603mm (29")

ETRTO: 622x25.0 (29")

ISO: 29"x28.4mm

Tape: 30mm

Valve: Presta Drilled

Max Spoke Tension: 130kgf (1275N)

Max Pressure with 2.20" Tyre: 35psi

Max Pressure with 2.50" Tyre: 39psi

Rim Weight: 520g (29")
