Tektro - E740 Auriga Plus Disc Brake LH

The Tektro HD-E740 Auriga Plus brake is a hydraulic brakeset for use with ebikes requiring an electrical cut-off to the motor when the brake lever is applied. The Tektro E740 comes pre-bled however the lever is not attached so that it can be fitted to internal routing and optimum hose length can be achieved. The cut off cable will need to be professionally attached to the existing cut off cable for the ebike motor system.

It features the EZ Plug in system which means the brake is pre-bled and pressure tested with a plugged Hose & Lever [not attached]. There is no need to bleed this brake.The hose can be simply routed and cut to length to suit your bike, then attached to the lever.

The full installation instructions are on Video and PDF

VIDEO HERE

PDF HERE

Open system, 4 piston post mount calipers

Designed for 2.3mm rotors only

With power cut-off sensor

Easy installation, adjustment and maintenance

Caliper: Forged aluminium body. Post Mount

Hose: 5.5mm. X 1.9m

Finish: Black only.

Disc: 2.3mm thickness. (not included)

Lever: Aluminium lever / Cast bracket / Two-Piece Clamp / 4 Finger Blade.

Pad: Overall balance Q13RS resin pad - Easy replacement.

Weight: Front: 449g front / Rear: 469g (Excludes rotor, adapter & mounting bolts).

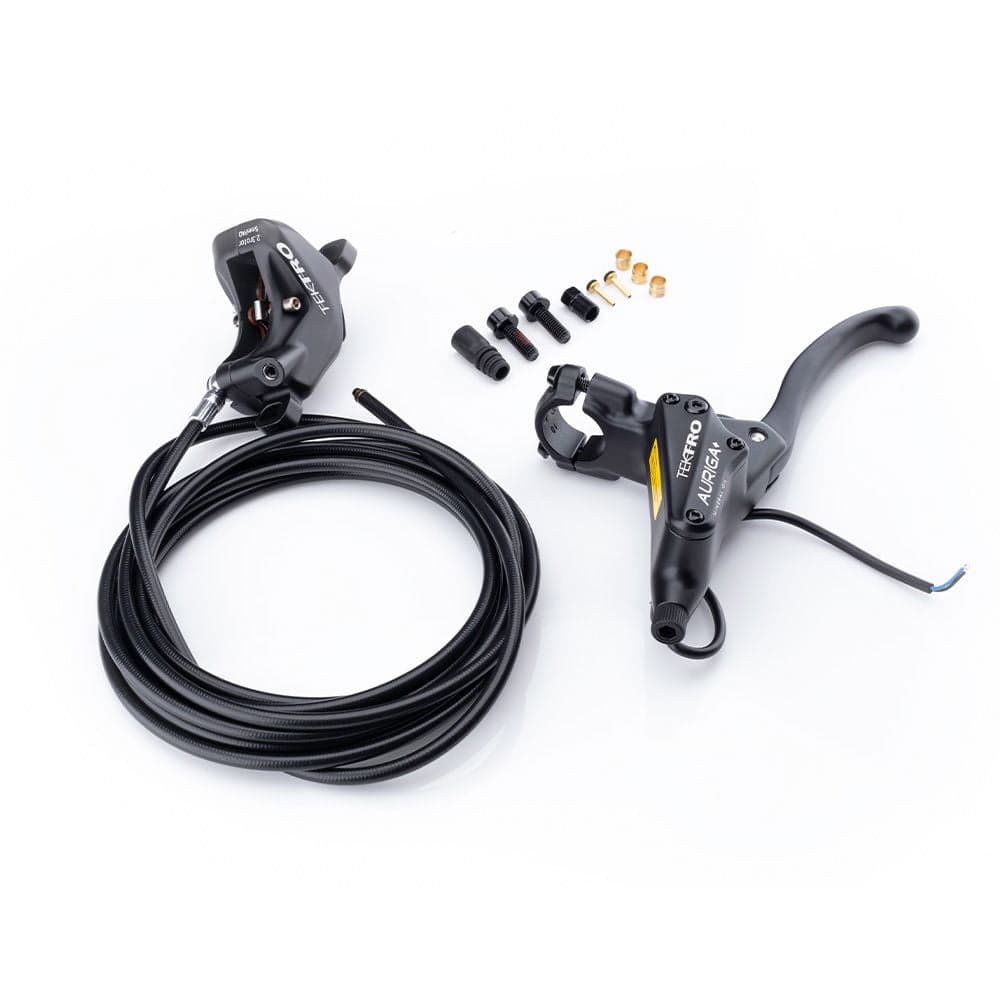

Includes: Olives x3 / Barb x2 / Caliper mount bolts x2 / Compression nut & cover x1.
