Tektro - HD-T737 - Cargo Disc Brake - LH

The Tektro HD-T737 Dorado brake is designed specifically for heavy duty and extra long bikes. It's 3.2m hoses and 5mm thick brake pads are particularly suited for cargo bikes and ebikes.

Available aftermarket as a Left or right-hand set. It features the EZ Plug-in system which means the brake is pre-bled and pressure tested with a plugged Hose & Lever [not attached]. There is no need to bleed this brake.The hose can be simply routed and cut to length to suit your bike, then attached to the lever. The full installation instructions are on Video and PDF here:


PDF Version:
Click here for the full installation instructions

• Powerful and controllable Hydraulic 4 piston Post Mount Caliper disc brake
• Extra thick 5mm overall balance resin brake pads
• Extra long 3.2 metre hoses
• Suitable for eBikes and cargo bikes requiring increased stopping performance

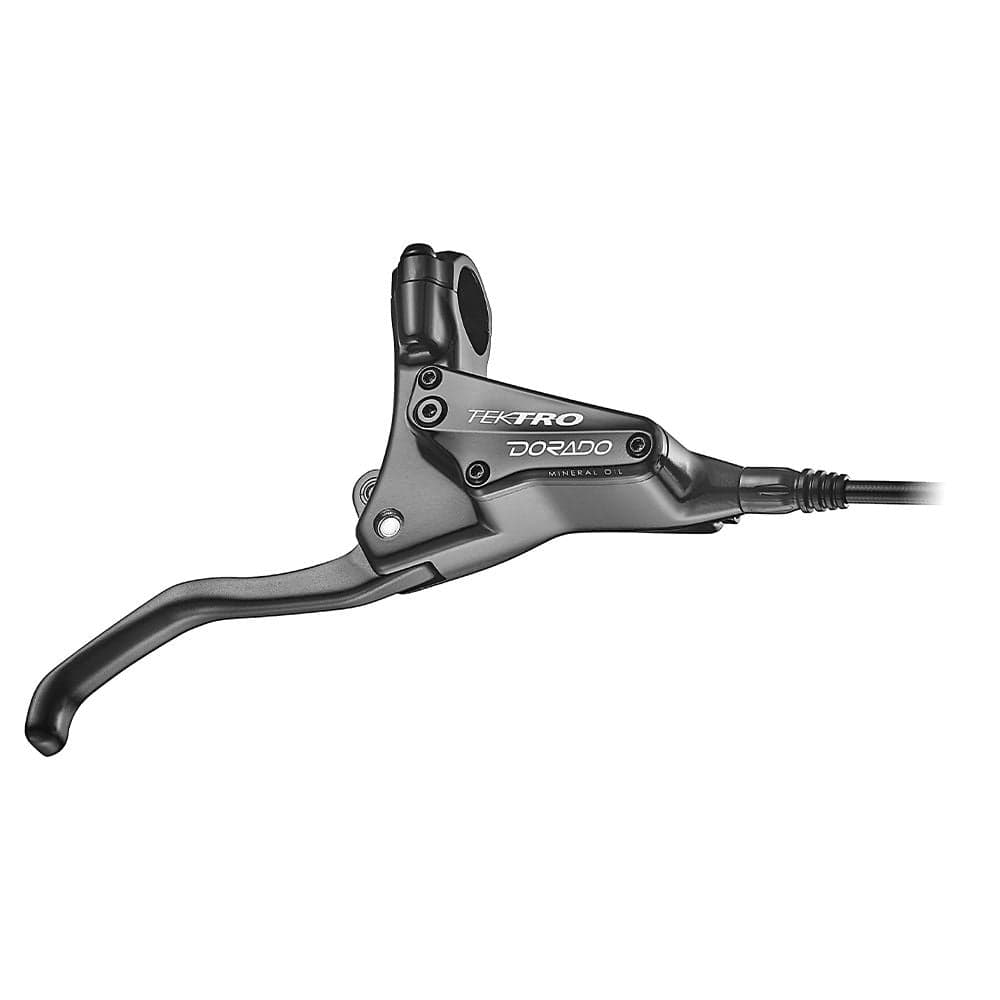

• 3-finger lever with reach adjustment. Lever blades are available as spares
• The low-noise resin brake pads provide smooth braking with easy pad replacement.
• All parts are available as spares

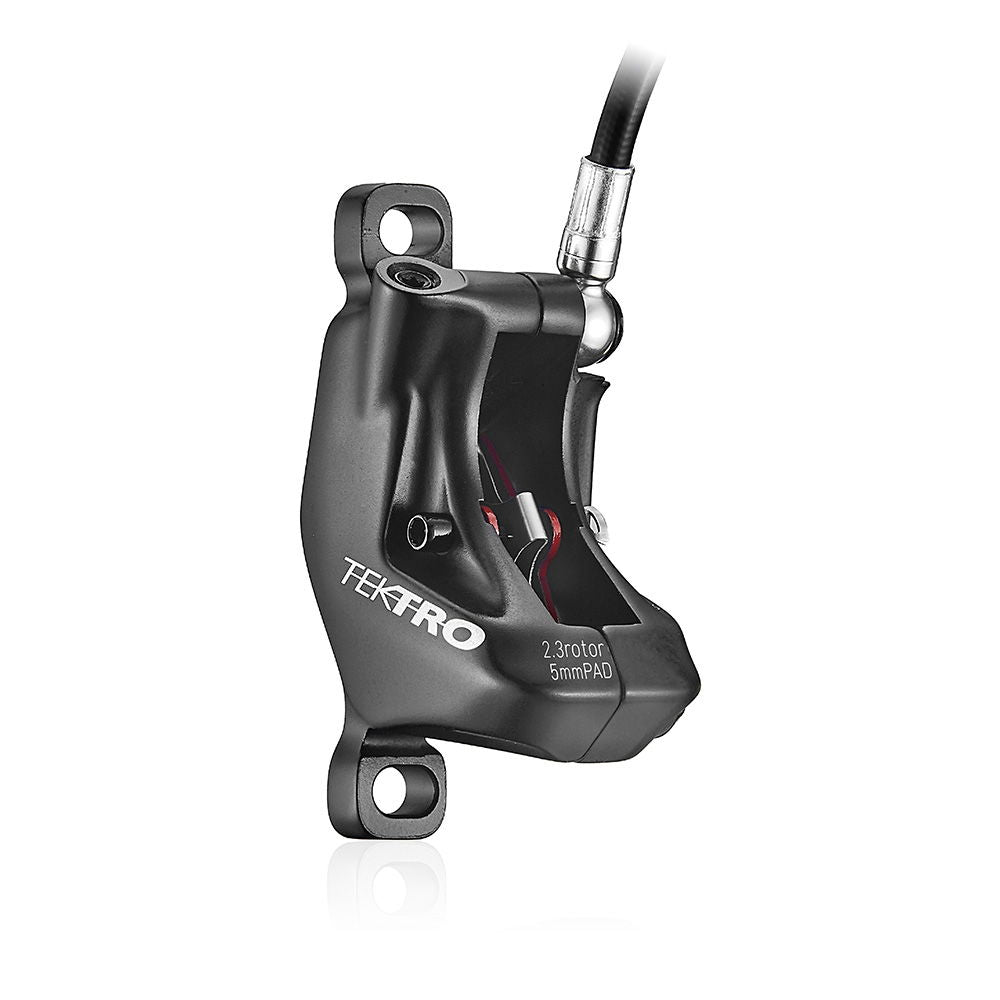

• Caliper: 4 piston forged aluminium body. Post Mount
• Hose: 5.5mm x 3.2m
• Finish: Black only
• Disc: 2.3mm thickness required (not included)
• Lever: Aluminium lever / Cast bracket / Two-Piece Clamp / 3 Finger Blade
• Pad: Q13RS 5mm extra thick pad. Easy replacement
• Weight: Front: 437g front / Rear: 457g (Excludes rotor, adapter & mounting bolts)
• Includes: Olives x3 / Barb x2 / Caliper mount bolts x2 / Compression nut & cover x1
